KSFS20QEBL0 04 – FREEZER LINER

KSFS20QEBL0 04 – FREEZER LINER

Written by

in

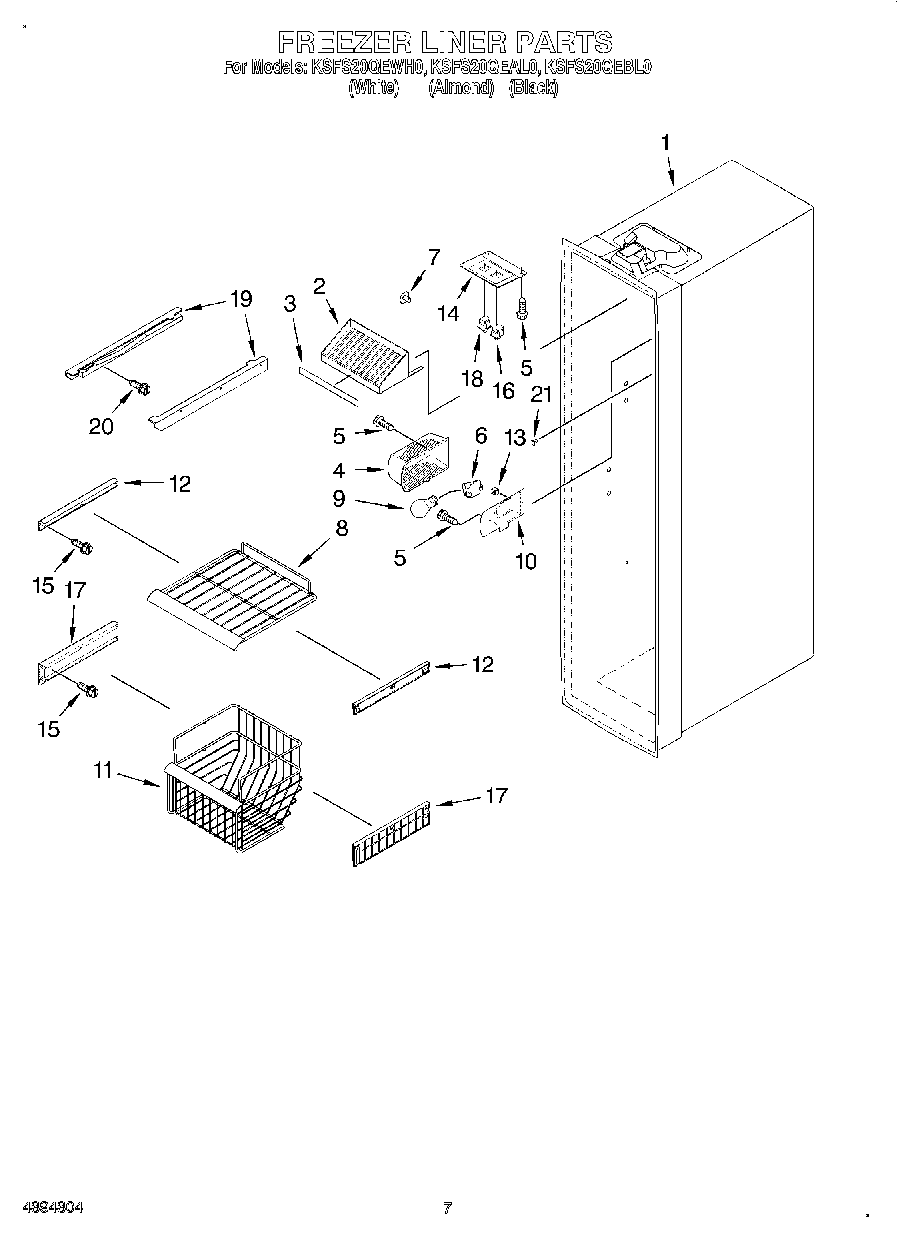

KSFS20QEBL0 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Top Shelf
3Glass, Crisper Cover (Upper)
4Light Lens
5WP489464 Whirlpool Refrigerator Screw
6Light Socket
7Support, Stud (2)
8Shelf (2)
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10Plate, Socket
11Basket, Slope (2)
12Shelf Track (Single) (Left Side)
12Shelf Track (Single) (Right Side)
13WPL 4343682
14Cover, Switch
15WP98165 Whirlpool Screw
16W11384469 Whirlpool Door Switch
17Shelf Track (Right Side (2))
17Shelf Track (Left Side (2))
18WP4387911 Whirlpool Refrigerator Switch
19Slide, Ice Container (Right Side)
1967005375 Whirlpool Refrigerator Glide, Freezer (Left)
20Screw
21WPL 4343657
