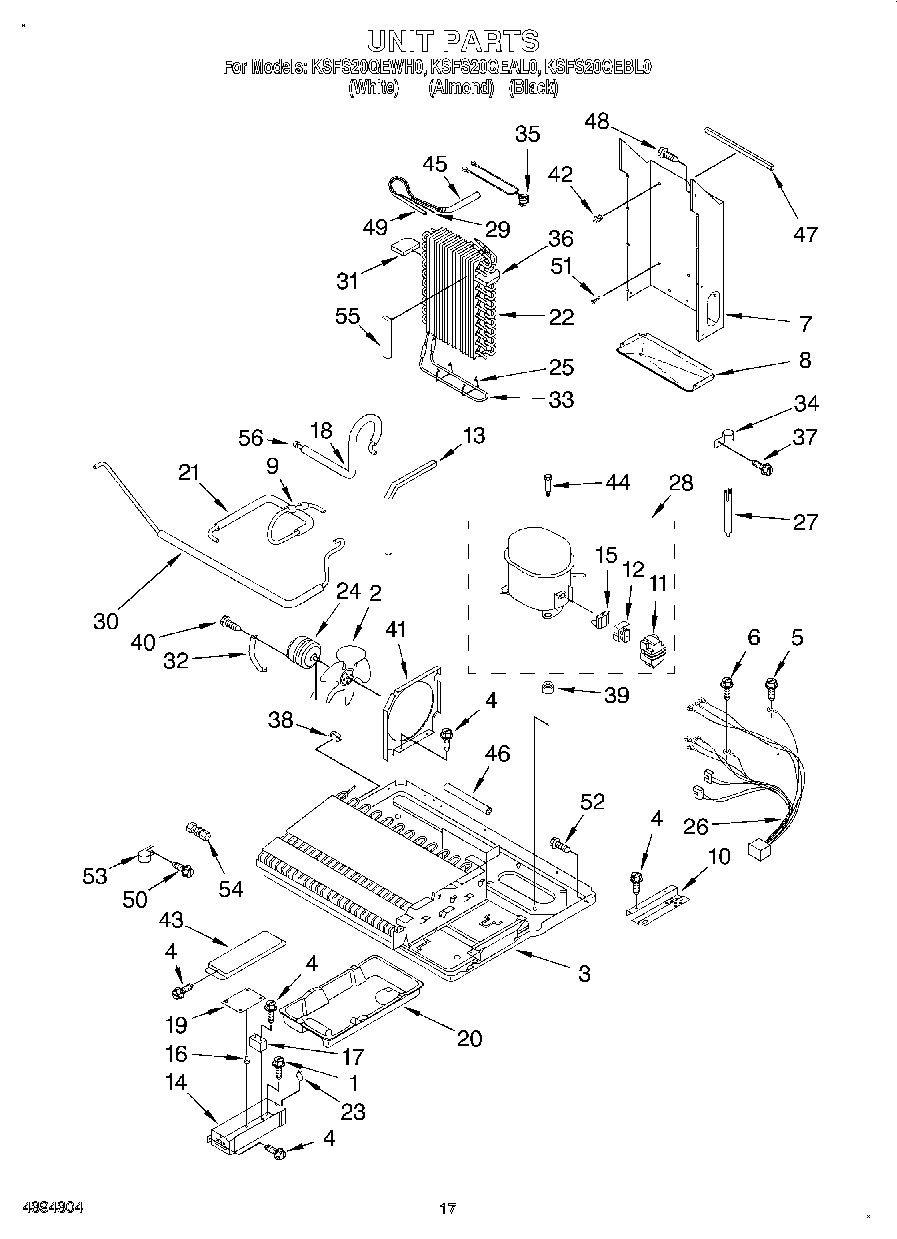

KSFS20QEBL0 10 – UNIT

Products

Position	Product
1	12992301 Whirlpool Refrigerator Screw
2	Fan, Blade
3	Condenser & Pan Assembly
4	WPL 4343861
5	WP489399 Whirlpool Refrigerator Screw
6	WPL 4343860
7	Heat Shield
8	Drain Pan
9	Dampner
10	Shelf, High Voltage Box
11	WPL 4343852
12	WP4344040 Whirlpool Refrigerator Overload
13	Gasket
14	High Voltage Box
15	WPW10189190 Whirlpool Start Device
16	Support
17	WPL 4343851
18	Sleeve
19	Control
20	Drain Pan
21	Tube, Discharge
22	Evaporator
23	Clamp, Wire
24	833697 Whirlpool Condenser Fan Motor
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
29	Heat Exchanger
30	Tube, Condenser/ PC Loop
31	Block, Evaporator (Left Side)
32	Bracket, Fan Motor
33	WP12049801 Whirlpool Refrigerator Evaporator Heater
34	WPL 4343763
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Block, Evaporator (Right Side)
37	WPL 4343759
38	Clip, Condenser
39	WPL 4343845
40	Screw
41	Air Baffle
42	Clip, Evaporator
43	Cover, High Voltage Box
44	WPL 4343847
45	Cover, Tubing
46	Sleeve
47	Foam Seal
48	WPL 4343749
49	Sleeve
50	WP489478 Whirlpool Refrigerator Screw
51	Clip, Evaporator
52	Screw
53	Clip, Water Tube
54	Union
55	Gasket, Foam
56	876764 Whirlpool Refrigerator Primary Valve
56	Tube, Suction
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	978030 Whirlpool Refrigerator Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978026 Whirlpool Refrigerator Primary Valve
56	VALVE, ACCESS (5/8“)
