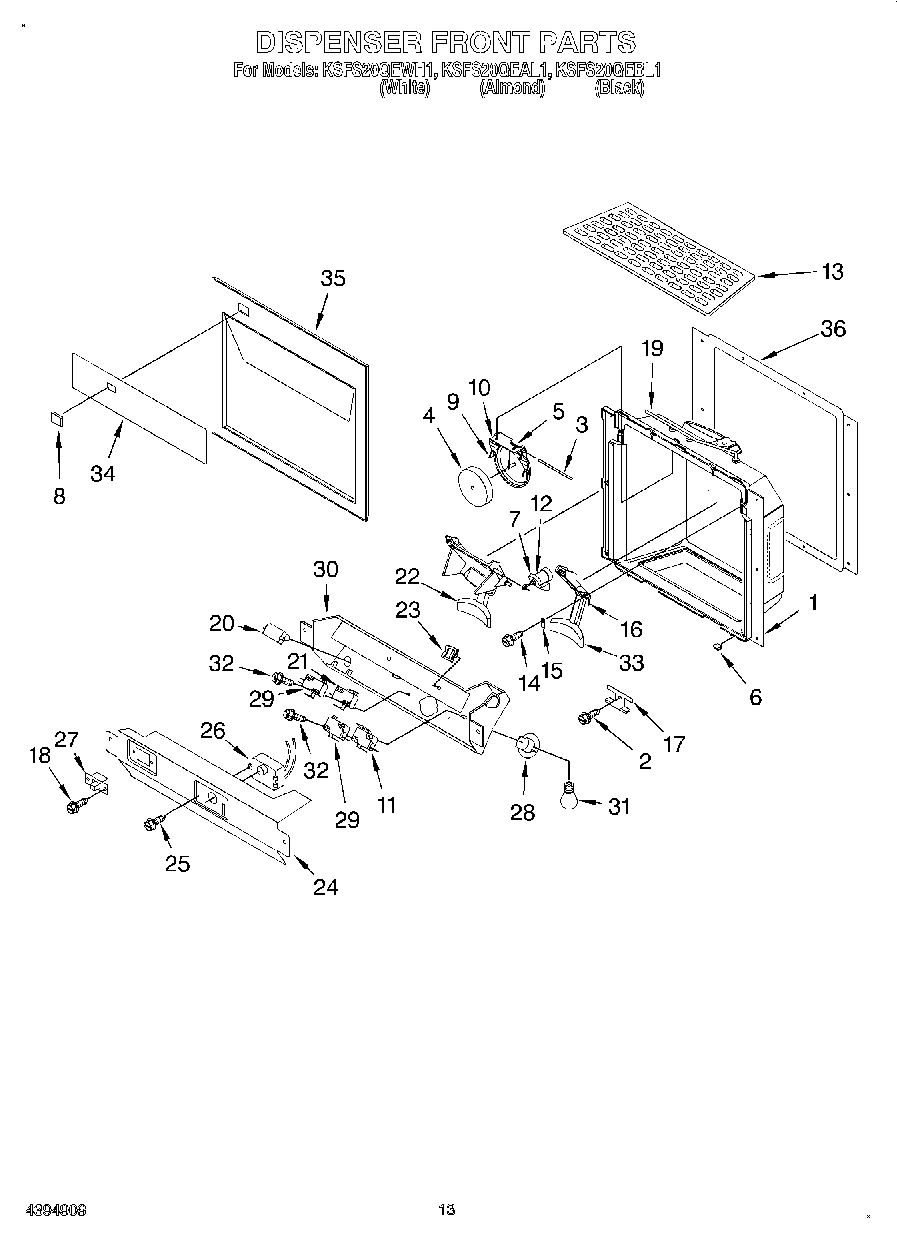

KSFS20QEWH1 08 – DISPENSER FRONTadmin2025-04-26T12:35:22+00:00KSFS20QEWH1 08 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 1 | Housing, Dispenser (Includes Heater) (Almond) |
| 1 | Housing, Dispenser (Includes Heater) (White) |
| 1 | Housing, Dispenser (Includes Heater) (Black) |
| 2 | Screw |
| 3 | Pin, Chute Door |
| 4 | Insulation, Door |
| 5 | Spring, Chute Door |
| 6 | Clip, Front |
| 7 | Retainer, Door Delay |
| 8 | Cap, Cube/Crush Switch (Black) |
| 8 | Cap, Cube/Crush Switch (White) |
| 8 | Cap, Cube/Crush Switch (Almond) |
| 9 | Door, Ice |
| 10 | Bracket, Chute Door |
| 11 | Switch |
| 12 | Mechanism Delay |
| 13 | Grille, Overflow (White) |
| 13 | Grille, Overflow (Almond) |
| 13 | Grille, Overflow (Black) |
| 14 | Screw |
| 15 | Clip, Lever (4) |
| 16 | Spring, Lever |
| 17 | Clip, Cover |
| 18 | Screw |
| 19 | W10823511 Whirlpool Refrigerator Water Tube |
| 20 | Light Switch |
| 21 | Micro Switch |
| 22 | Lever, Ice Dispenser (White) |
| 22 | Lever, Ice Dispenser (Black) |
| 22 | Lever, Ice Dispenser (Almond) |
| 23 | WPL 4343969 |
| 24 | Cover |
| 25 | Screw |
| 26 | Switch, Sensor |
| 27 | Switch, Cube/Crush |
| 28 | Lamp Holder |
| 29 | WP10533003 Whirlpool Refrigerator Limit Switch |
| 30 | Bracket, Control |
| 31 | WP22002263 Whirlpool Dryer 10W Light Bulb |
| 32 | Screw |
| 33 | Lever, Water Dispenser (White) |
| 33 | Lever, Water Dispenser (Almond) |
| 33 | Lever, Water Dispenser (Black) |
| 34 | Plaque, Front Cover (White) |
| 34 | Plaque, Front Cover (Black) |
| 34 | Plaque, Front Cover (Almond) |
| 35 | Front Cover, Housing (White) |
| 35 | Front Cover, Housing (Almond) |
| 35 | Front Cover, Housing (Black) |
| 36 | Gasket |
