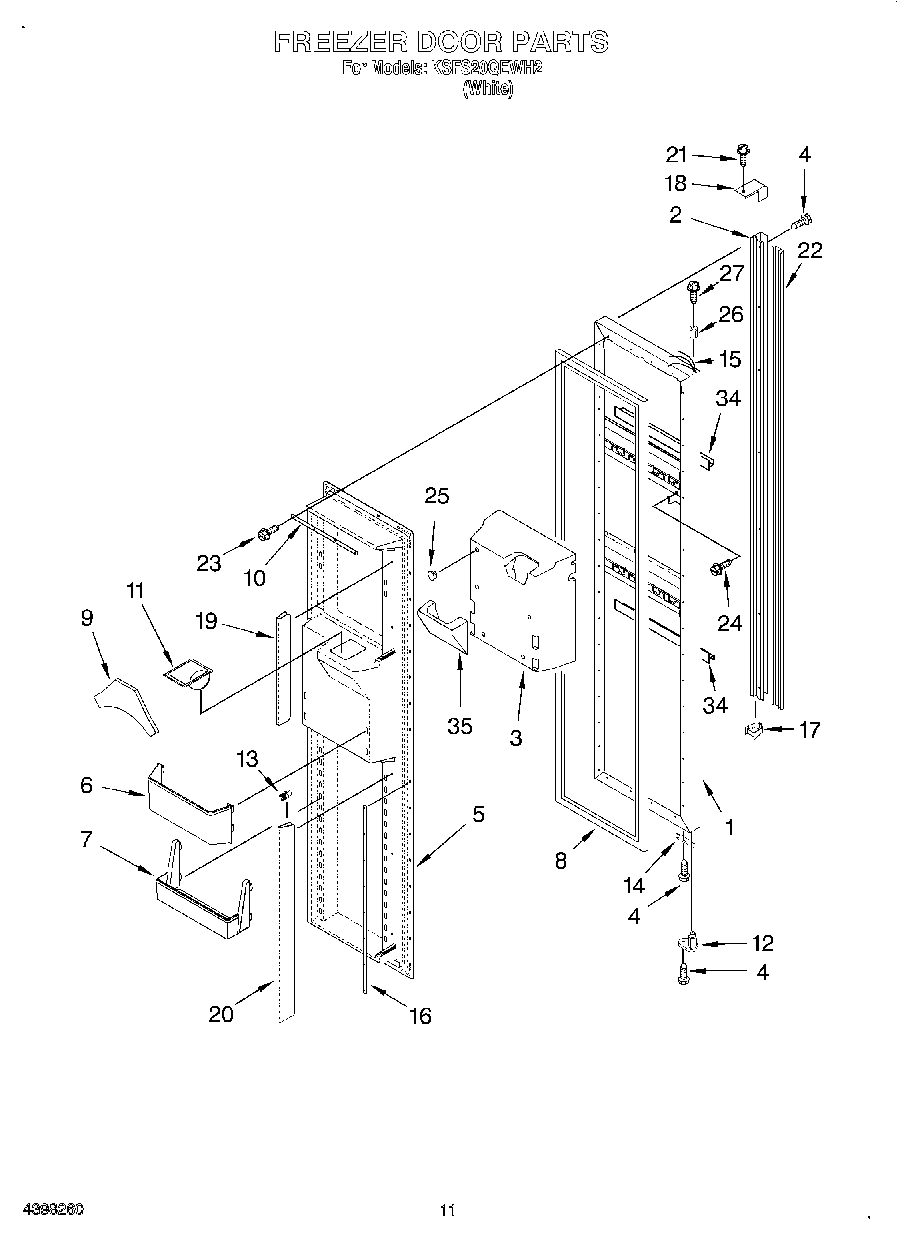

KSFS20QEWH2 07 – FREEZER DOORadmin2025-04-26T12:35:13+00:00KSFS20QEWH2 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) (White) |
| 2 | Handle (White) |
| 3 | Insulation, Dispenser Cavity |
| 4 | WP98165 Whirlpool Screw |
| 5 | Interior Panel |
| 6 | Trivet, Shelf |
| 7 | Shelf Bin (4) |
| 8 | Door Gasket, Magnetic (White) |
| 9 | Seal, Ice Chute |
| 10 | Retainer (Top & Bottom) |
| 11 | Chute, Ice |
| 12 | R0181181 Whirlpool Refrigerator Door Closer Cam Kit |
| 13 | Clip, Removable Door Dike |
| 14 | Bracket, Door Stop (White) |
| 15 | Harness, Door |
| 16 | Retainer (Side) |
| 17 | Cap, Bottom (White) |
| 18 | Cap, Top (White) |
| 19 | Removable Door Dike, Top |
| 20 | Removable Door Dike, Bottom |
| 21 | Screw |
| 22 | Insert, Handle (White) |
| 23 | Screw |
| 24 | WP489399 Whirlpool Refrigerator Screw |
| 25 | Button Plug |
| 26 | WP67004977 Whirlpool Refrigerator Door Hinge Bushing |
| 27 | Screw, Ground |
| 34 | Retainer, Decorative Panel (White) |
| 35 | WPL 8170328 |
