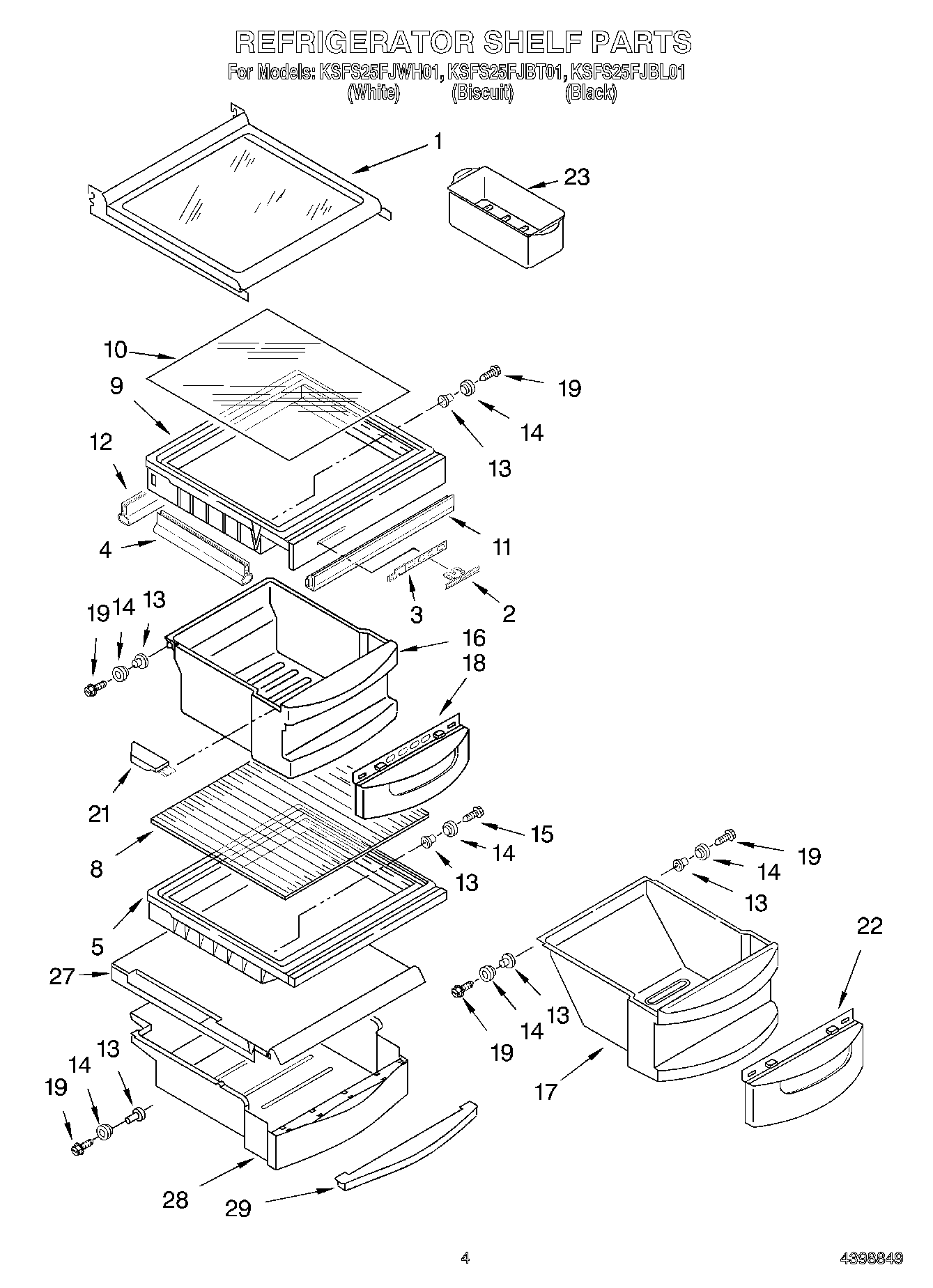

KSFS25FJBT01 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (3)
2Button, Humidity Control
32174252 Whirlpool Refrigerator Slide
4Gasket, Side (2)
5Cover, Meat Pan (Includes Items 13, 14 & 15)
8Glass, Cover
9Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
10Glass, Cover
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, (Rear)
13Eyelet, Roller
14Roller
15WPW10272364 Whirlpool Refrigerator Screw
16WP2179227 Whirlpool Refrigerator Crisper Pan
19WP489261 Whirlpool Refrigerator Screw
21Cap, Crisper (Left Side)
21Cap, Crisper (Right Side)
22Window, Crisper
23W10136387A Whirlpool Refrigerator Egg Container
27WPW10270150 Whirlpool Crisper Drawer Cover
28Beverage Pan
29HANDLE, MEAT PAN
