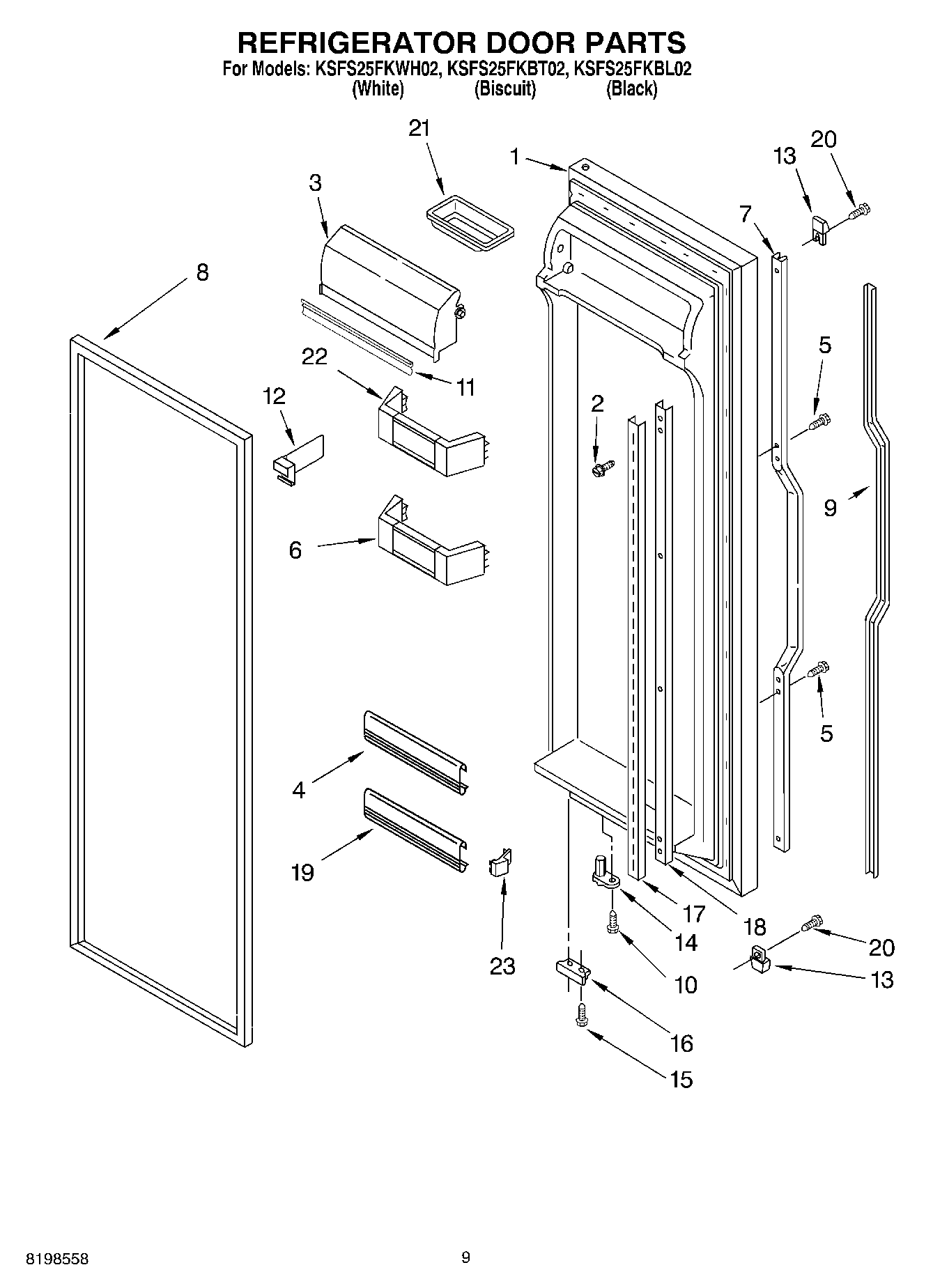

KSFS25FKBT02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Black)
1	Refrigerator Door (Includes Item 8) (Biscuit)
1	Refrigerator Door (Includes Item 8) (White)
3	Door, Compartment
4	WP2256010 Whirlpool Door Shelf Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WP2257017 Whirlpool Refrigerator Cantilever Bin
7	Retainer, Insert (White)
7	Retainer, Insert (Biscuit)
7	Retainer, Insert (Black)
8	Door Gasket, Magnetic (Black)
8	Door Gasket, Magnetic (Mist Beige)
9	Insert, Handle (Biscuit)
9	Insert, Handle (White)
9	Insert, Handle (Black)
10	WP3400012 Whirlpool Refrigerator Screw
11	Gasket, Door Compartment
12	Divider, Bin
13	End Cap, Handle
13	End Cap (Black)
13	End Cap, Handle (Biscuit)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
16	Bracket, Door Stop (Black)
17	Retainer, Shelf Ladder (2)
18	Ladder, Shelf (2)
19	Trim, Door Shelf
20	WP3400852 Whirlpool Refrigerator Screw
21	Butter Tray
22	Bin, Door (3)
23	ENDCAP
