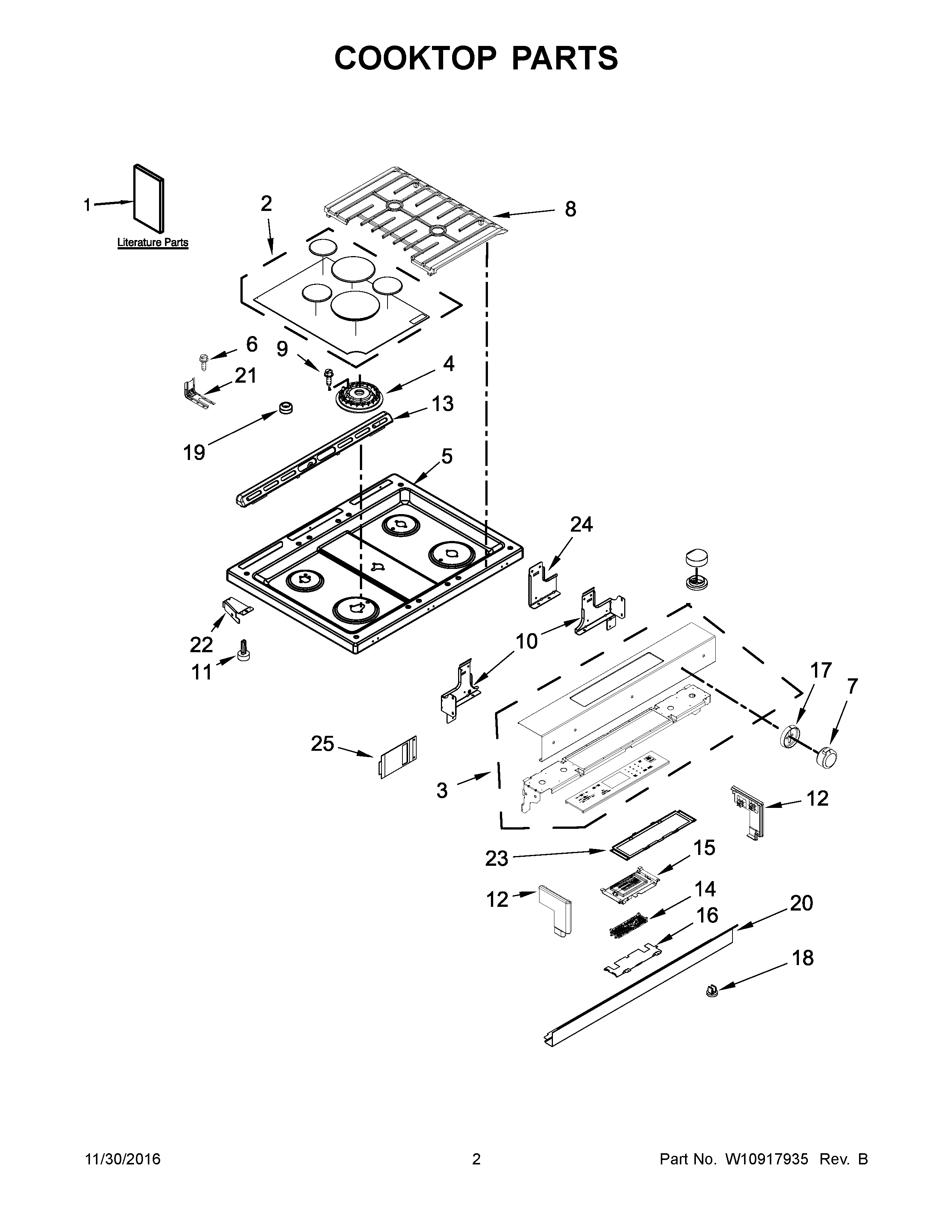

KSGB900ESS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11176109 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	W11198972 Whirlpool Wire Harness
NI	W10580265 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	INSULATION, VENT TRIM
NI	W11684889 Whirlpool Insulation
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10911847 Whirlpool Wire Harness
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
1F	GUIDE, QUICK START
1G	QUICK START GUIDE (FRENCH)
1C	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1A	GUIDE, USE & CARE
2	W10876582 Whirlpool Burner Cap
3	W10913685 Whirlpool Control Panel
4B	W10836467 Whirlpool Burner Head
4	WPW10256028 Whirlpool Stove Surface Burner Base
4A	WPW10256025 Whirlpool Burner Head
4C	W11106799 Whirlpool Range Burner Base Surface
5	W10816366 Whirlpool Maintop
6	SCREW, ANTI-TIP KIT
7A	W10872674 Whirlpool Knob
7	W10872668 Whirlpool Control Knob
8	W11026378 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	GLIDE, MAIN TOP
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W10577782 Whirlpool Vent Trim Assembly
14	W11100100 Whirlpool Electronic Control Board
15	W10909684 Whirlpool Display
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10555934 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W10757531 Whirlpool Shield
