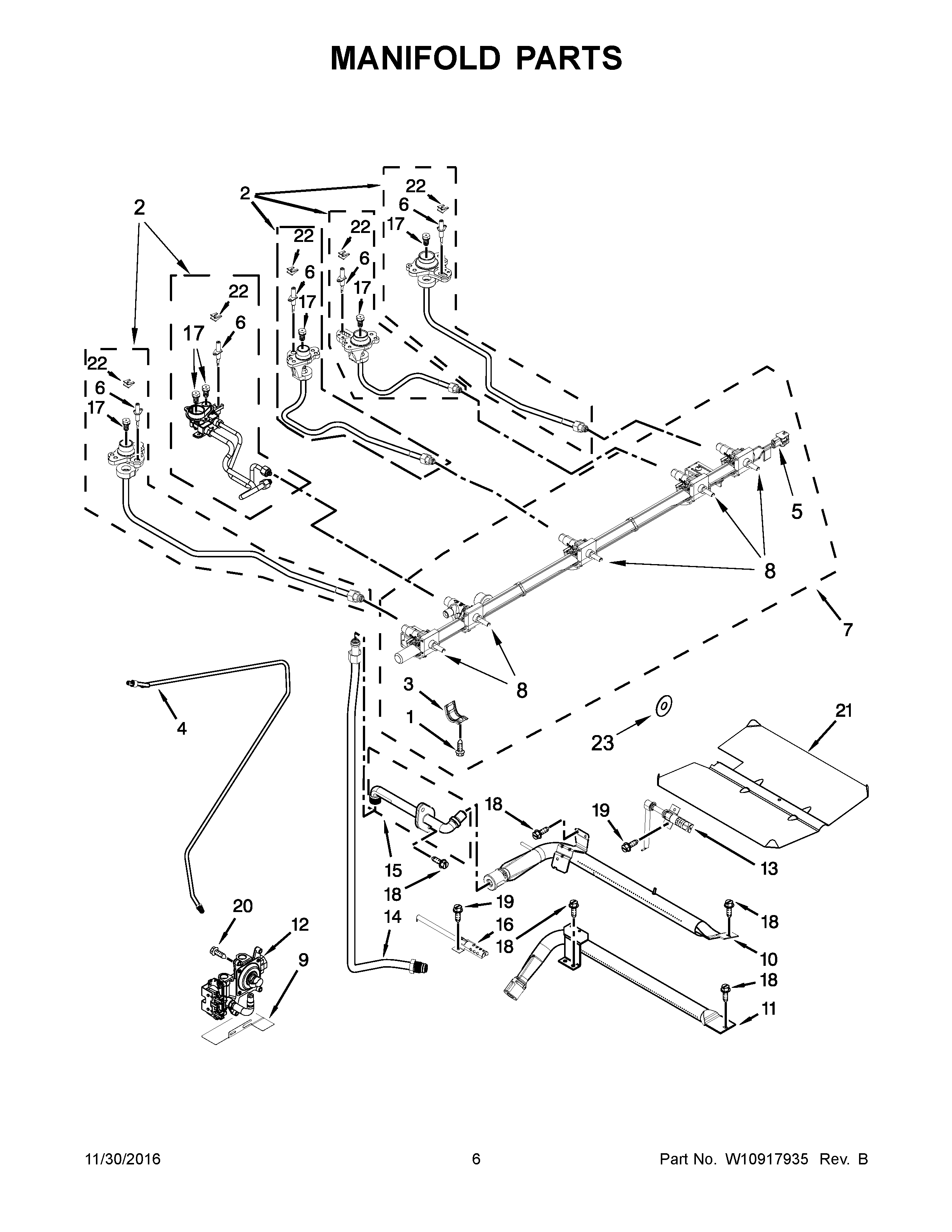

KSGB900ESS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10909678 Whirlpool ORFCE Spud
NI	W11087486 Whirlpool Spud Orifice
1	W11241230 Whirlpool Screw
2B	W10552121 Whirlpool Orifice Holder
2A	W10552119 Whirlpool Orifice Holder
2	W11628649 Whirlpool Orifice Holder
2D	W10552124 Whirlpool Orifice Holder
2C	W10552122 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10432252 Whirlpool Gas Tubing
5	W11376663 Whirlpool Wire Harness
6A	W11447374 Whirlpool Surface Igniter
6	W11220383 Whirlpool Surface Igniter
6C	W11611678 Whirlpool Surface Igniter
6B	W11050467 Whirlpool Surface Igniter
7	W10826727 Whirlpool Manifold
8B	W10831591 Whirlpool Burner Valve
8	W11233561 Whirlpool Burner Valve
8A	W11241561 Whirlpool Burner Valve
8C	W11109973 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17B	W10819958 Whirlpool Orifice Spud
17	W10821182 Whirlpool Orifice
17A	SPUD-ORFCE
17C	W10566082 Whirlpool Orifice Spud
17E	W10756981 Whirlpool Spud Orifice
17D	W10657947 Whirlpool Orifice Spud
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	W11190173 Whirlpool Clip
23	W10140571 Whirlpool Seal Switch
