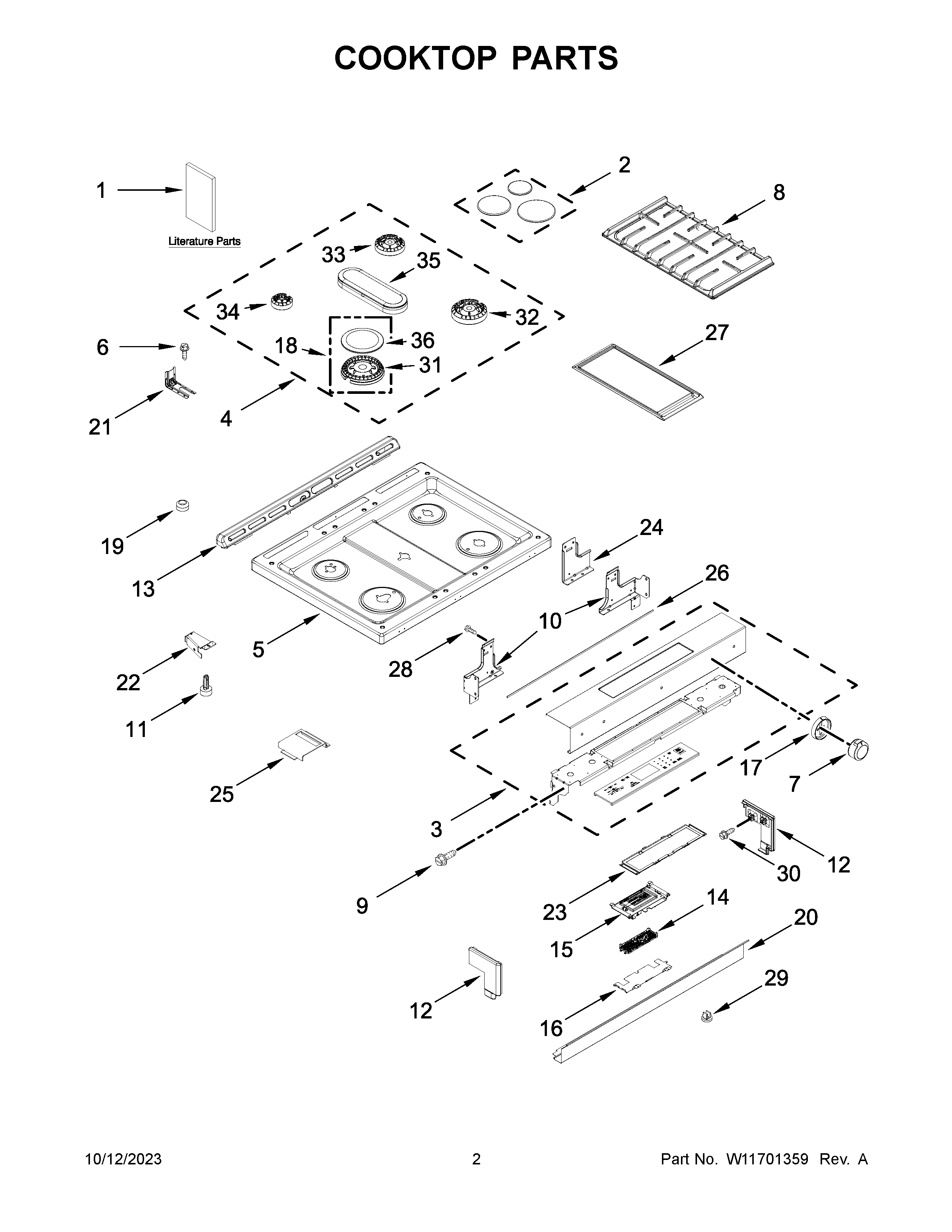

KSGB900ESS9 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W10580229 Whirlpool Grounding Wire
NI	HARNS-WIRE
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1	OWNERS MANUAL
1A	TECH SHEET
1B	QUICK START GUIDE
2	W11605764 Whirlpool Burner Cap
3	W10913685 Whirlpool Control Panel
4	W11662377 Whirlpool Range Burner Head
5	W11445310 Whirlpool Cooktop Assembly
6	SCREW, ANTI-TIP KIT
7	W10872668 Whirlpool Control Knob
7A	W10872674 Whirlpool Knob
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10A	BRACKET, SUPPORT (RIGHT)
10	BRACKET,SUPPORT (LEFT)
11	GLIDE, MAIN TOP
12	W10555937 Whirlpool Endcap Panel
12A	W10555940 Whirlpool Endcap Panel
13	W10577782 Whirlpool Vent Trim Assembly
14	W11620672-includeCORE Whirlpool W11620672 Refrigerator Electronic Control Board
15	W11128223 Whirlpool Display
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11443594 Whirlpool Burner Head
19	W11690600 Whirlpool Bumper
20	W10743276 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W11355689 Whirlpool Shield
26	GASKET, CONSOLE AND COOKTOP
27	W10432544 Whirlpool Range Griddle
28	WPW10067840 Whirlpool Screw
29	W11025100 Whirlpool Insert
30	W11245710 Whirlpool Refrigerator Screw
31	W11436986 Whirlpool Burner Head
32	W11531096 Whirlpool Burner Head
33	W11531097 Whirlpool Burner – Head
34	W11531098 Whirlpool Burner Head
35	W11548764 Whirlpool Burner Head
36	W11576413 Whirlpool Burner Cap
