KSGB900EWH0 02 – COOKTOP PARTS
Written by
in

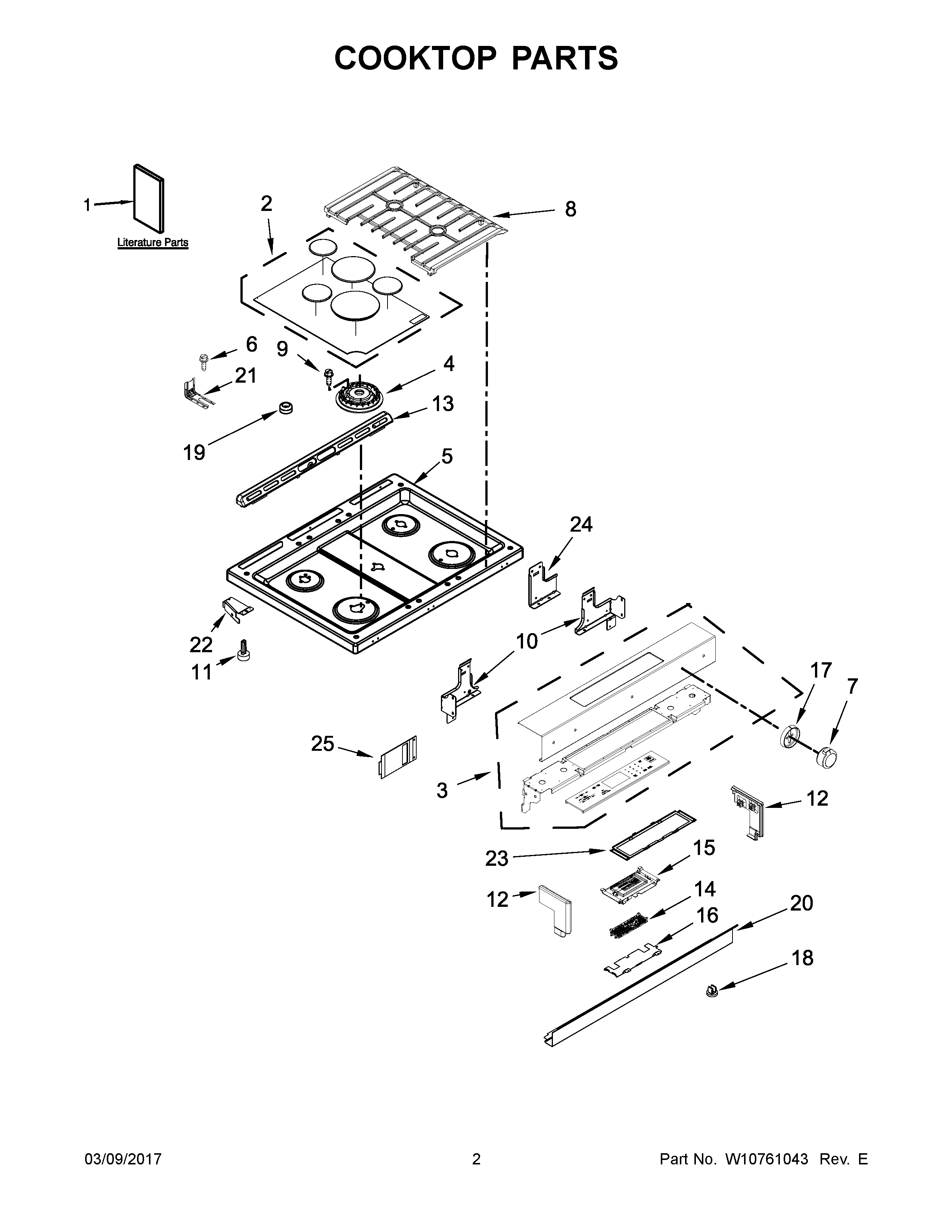

KSGB900EWH0 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11176109 Whirlpool Wire Harness
NI
W11198972 Whirlpool Wire Harness
NI
W10580265 Whirlpool Wire Harness
NI
INSULATION, BURNER BOX
NI
W11025616 Whirlpool Wire Harness
NI
W10580229 Whirlpool Grounding Wire
NI
16515 Whirlpool Clip
NI
3400964 Whirlpool Oven Clip
NI
W10911847 Whirlpool Wire Harness
1
INSTRUCTIONS, INSTALLATION
1D
SAFER COOKING TIPS (ENGLISH
1E
Safer Cooking Tips (French)
1F
GUIDE, QUICK START
1G
QUICK START GUIDE (FRENCH)
1B
SHEET, TECH
1A
GUIDE, USE & CARE
1C
WIRING DIAGRAM
2
W10876582 Whirlpool Burner Cap
3
W10697322 Whirlpool Control Panel
3A
W10697323 Whirlpool Control Panel
3B
W10913685 Whirlpool Control Panel
4B
W10836467 Whirlpool Burner Head
4
WPW10256028 Whirlpool Stove Surface Burner Base
4C
W11106799 Whirlpool Range Burner Base Surface
4A
WPW10256025 Whirlpool Burner Head
5B
W10816366 Whirlpool Maintop
5
W10795406 Whirlpool Cooktop
5A
W10795407 Whirlpool Cooktop Assembly
6
SCREW, ANTI-TIP KIT
7A
W10872674 Whirlpool Knob
7
W10872668 Whirlpool Control Knob
8
W11026378 Whirlpool Grate Assembly
9
WP3196557 Whirlpool Screw
10A
W10289169 Whirlpool Bracket Support
10
W10289170 Whirlpool Support Bracket
11
GLIDE, MAIN TOP
12C
W10555939 Whirlpool Endcap Panel
12
W10555936 Whirlpool Endcap Panel
12E
W10555940 Whirlpool Endcap Panel
12D
W10555938 Whirlpool Endcap Panel
12A
W10555935 Whirlpool Endcap Panel
12B
W10555937 Whirlpool Endcap Panel
13
W11256338 Whirlpool Vent Trim
13B
W10577782 Whirlpool Vent Trim Assembly
13A
W10636527 Whirlpool Vent Trim
14
W11100100 Whirlpool Electronic Control Board
15
W10909684 Whirlpool Display
16
W10558372 Whirlpool Bracket Mounting
17
W10814133 Whirlpool Knob Bezel
18
W11025100 Whirlpool Insert
19
W11104127 Whirlpool Bumper Assembly
20A
CONSOLE, LOWER PANEL (WHITE)
20
W10555932 Whirlpool Mounting Bracket
20B
W10555934 Whirlpool Mounting Bracket
21
W11502257 Whirlpool Anchor Tip
22A
W10162252 Whirlpool Bracket Mounting
22
W10162253 Whirlpool Mounting Bracket
23
W10555923 Whirlpool Mounting Bracket
24
W10598048 Whirlpool Support Bracket
25
W10757531 Whirlpool Shield
←
