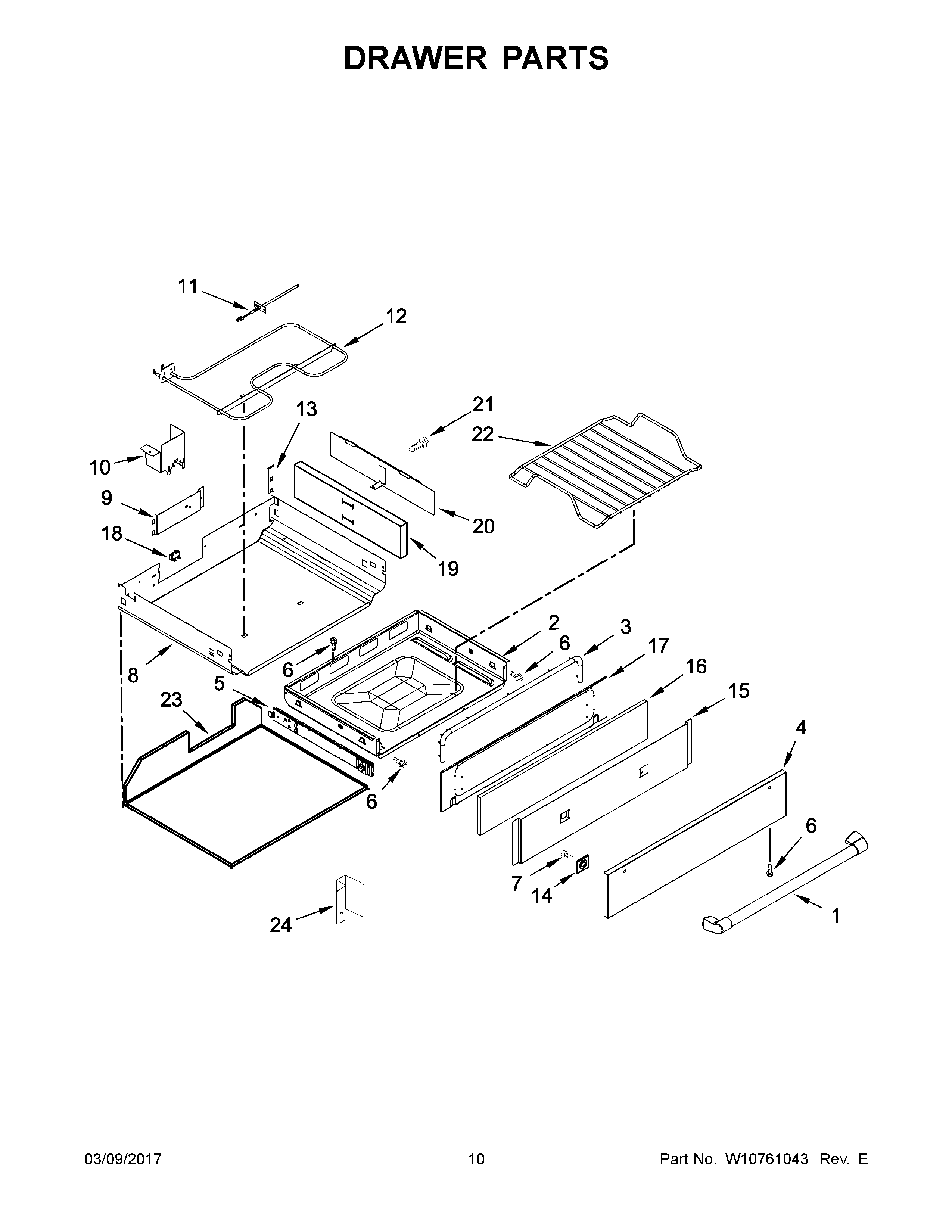

KSGB900EWH0 06 – DRAWER PARTS
Written by
in
KSGB900EWH0 06 – DRAWER PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
INSULATION, RETAINER BAKE DRAWER
NI
W11688782 Whirlpool Insulation
1
W11104399 Whirlpool Door Handle
2
W11036176 Whirlpool Utility Drawer
3
W10550987 Whirlpool Door Seal
4A
W10541952 Whirlpool Drawer Panel
4B
W10861216 Whirlpool Drawer Panel
4
W10541953 Whirlpool Drawer Panel
5
W11670722 Whirlpool Drawer Slide
5A
W11670723 Whirlpool Drawer Slide
6
WP355214 Whirlpool Screw
7
WP8533988 Whirlpool Screw Fastener
8
W10634260 Whirlpool Utility Drawer
9
COVER, GAS VALVE
10
W10634259 Whirlpool Wire Cover
11
SENSOR-RANGE
12
W10541944 Whirlpool Bake Element
13
W10551019 Whirlpool Clip
14
SPACER, HANDLE
15
W10551018 Whirlpool Drawer Panel
16
W11688515 Whirlpool Insulation Assembly
17
W10541947 Whirlpool Drawer Panel
18
W10729897 Whirlpool Thermal Fuse
19
INSULATION, DRAWER SIDE
20
W10550985 Whirlpool Retainer
21
W11169708 Whirlpool Screw
22
W10602493 Whirlpool Oven Rack
23
W11688775 Whirlpool Insulation
24
SHIELD, CORNER
←
