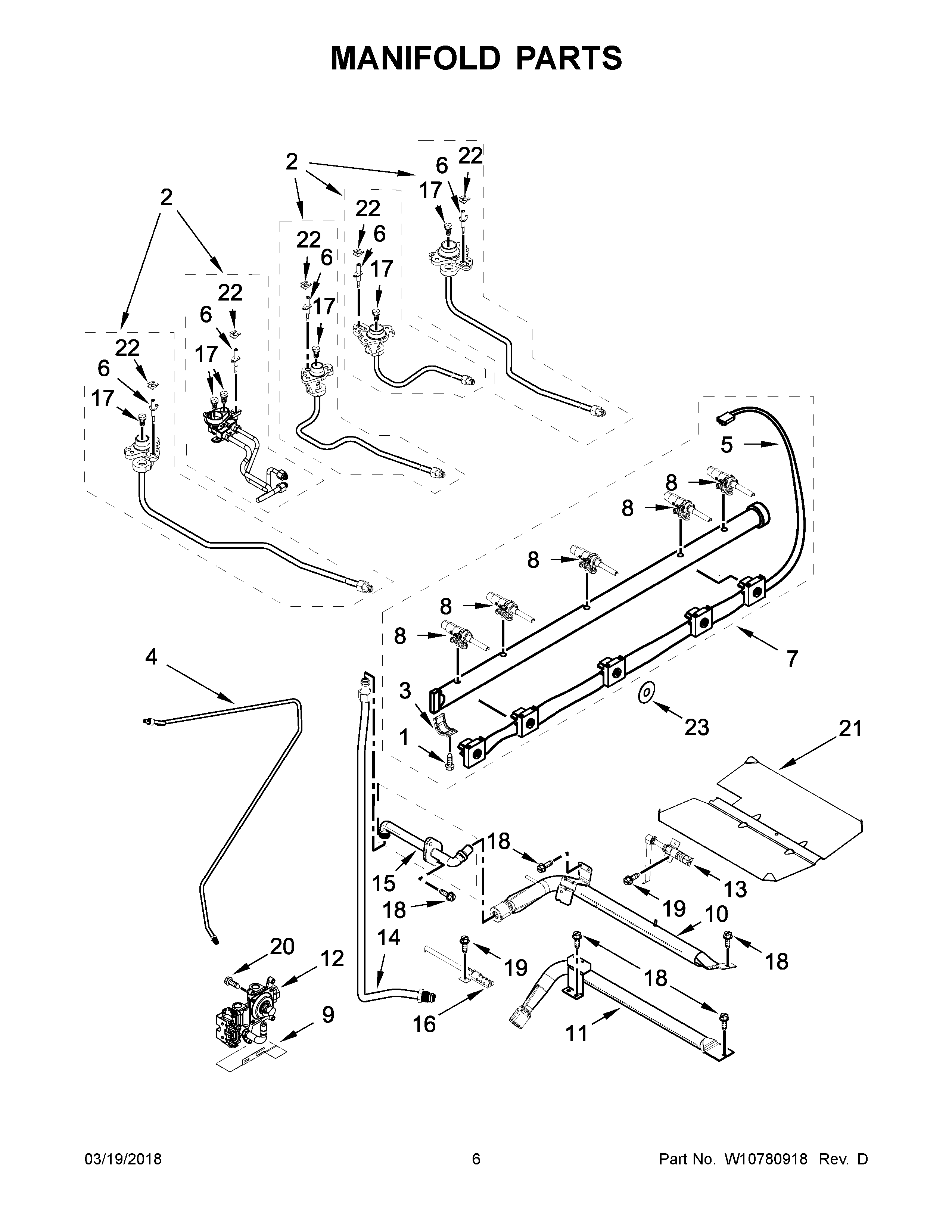

KSGG700EBL0 04 – MANIFOLD PARTS

KSGG700EBL0 04 – MANIFOLD PARTS

Written by

in

KSGG700EBL0 04 – MANIFOLD PARTS

Products

PositionProduct
1W10295997 Whirlpool Screw
2W10552123 Whirlpool Orifice Holder
2BW11628649 Whirlpool Orifice Holder
2CW10552119 Whirlpool Orifice Holder
2AW10552121 Whirlpool Orifice Holder
2DW10552124 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10432252 Whirlpool Gas Tubing
5W11376663 Whirlpool Wire Harness
6W11611678 Whirlpool Surface Igniter
6AW11050467 Whirlpool Surface Igniter
6BW11447374 Whirlpool Surface Igniter
6CW11220383 Whirlpool Surface Igniter
7W10826727 Whirlpool Manifold
8BW11241561 Whirlpool Burner Valve
8CW11233561 Whirlpool Burner Valve
8W11109973 Whirlpool Burner Valve
8AW10831591 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10861656 Whirlpool Regulator Assembly
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10583216 Whirlpool Fitting Assembly
16WPW10333842 Whirlpool Oven Igniter
17EW10657947 Whirlpool Orifice Spud
17BW10756981 Whirlpool Spud Orifice
17CW10821182 Whirlpool Orifice
17W11051480 Whirlpool Orifice Assembly
17AW10819958 Whirlpool Orifice Spud
17DSPUD-ORFCE
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
21BAFFLE, BROIL BURNER
22AW10256046 Whirlpool Clip
22W11190173 Whirlpool Clip
23W10140571 Whirlpool Seal Switch
