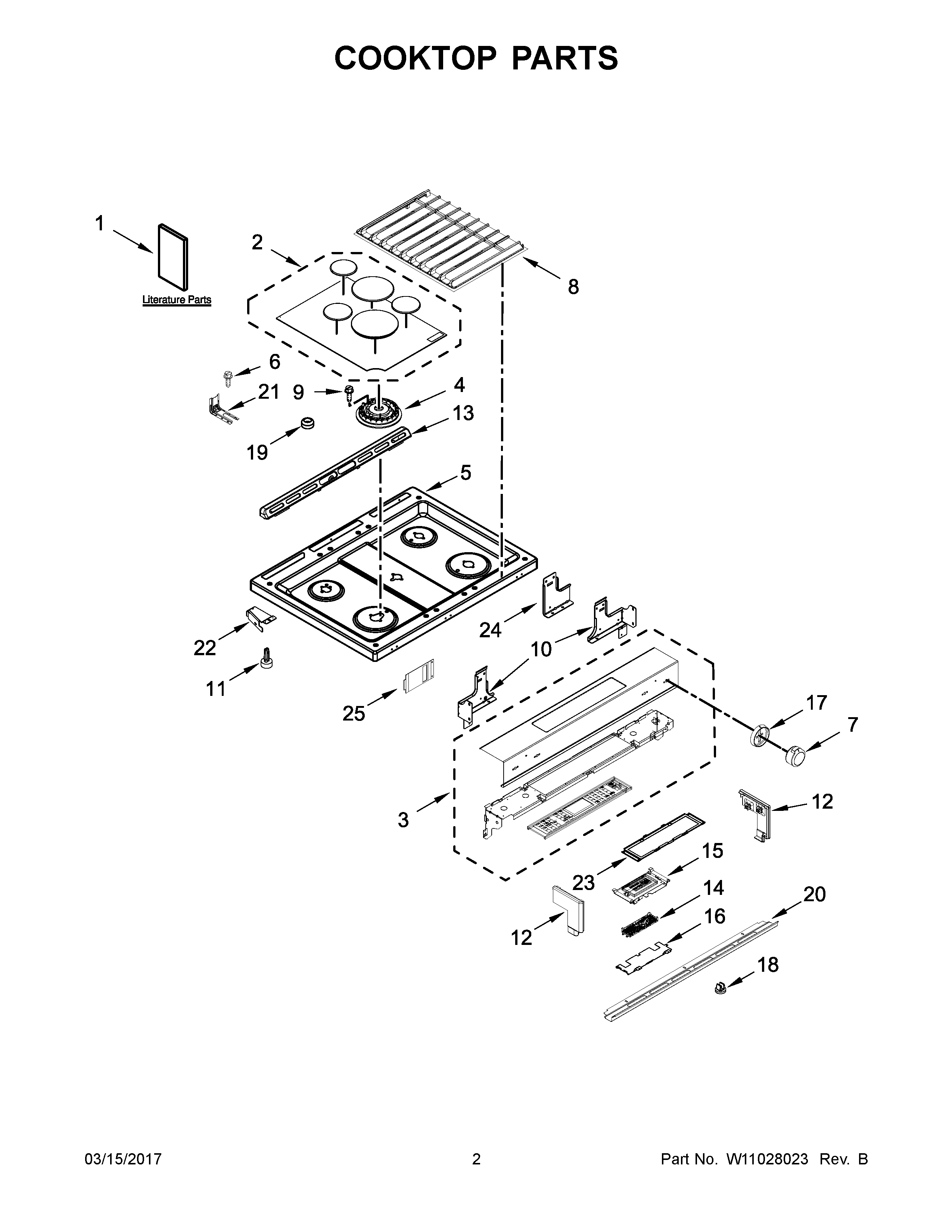

KSGG700EBL1 02 – COOKTOP PARTS

KSGG700EBL1 02 – COOKTOP PARTS

Written by

in

KSGG700EBL1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	W11087486 Whirlpool Spud Orifice
NI	W11025616 Whirlpool Wire Harness
NI	W10911846 Whirlpool Wire Harness
NI	W10909678 Whirlpool ORFCE Spud
NI	W11198972 Whirlpool Wire Harness
NI	W11176109 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	WPW10182767 Whirlpool Wire Tie
NI	W11123868 Whirlpool Venturi Assembly
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
1F	GUIDE, QUICK START
1G	QUICK START GUIDE (FRENCH)
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1A	GUIDE, USE & CARE
1C	WIRING DIAGRAM
2	W10876582 Whirlpool Burner Cap
3B	W11029431 Whirlpool Range Control Panel – Stainless Steel
3	W11029422 Whirlpool Range Control Panel
3A	W11029426 Whirlpool Control Panel
4	W11106799 Whirlpool Range Burner Base Surface
4A	W10836467 Whirlpool Burner Head
4C	WPW10256025 Whirlpool Burner Head
4B	WPW10256028 Whirlpool Stove Surface Burner Base
5	W10795406 Whirlpool Cooktop
5A	W10795407 Whirlpool Cooktop Assembly
6	SCREW, ANTI-TIP KIT
7A	W10872674 Whirlpool Knob
7	W10872668 Whirlpool Control Knob
8	W11026378 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	GLIDE, MAIN TOP
12	W10555936 Whirlpool Endcap Panel
12A	W10555939 Whirlpool Endcap Panel
12B	W10555935 Whirlpool Endcap Panel
12E	W10555940 Whirlpool Endcap Panel
12D	W10555937 Whirlpool Endcap Panel
12C	W10555938 Whirlpool Endcap Panel
13A	W10577780 Whirlpool Vent Trim Assembly
13	W11256338 Whirlpool Vent Trim
14	W11034208-includeCORE Whirlpool W11034208 Refrigerator Control Board + Core
15A	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
15	WPW10603096 Whirlpool Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10555932 Whirlpool Mounting Bracket
20A	CONSOLE, LOWER PANEL (WHITE)
20B	W10555934 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W10757531 Whirlpool Shield
