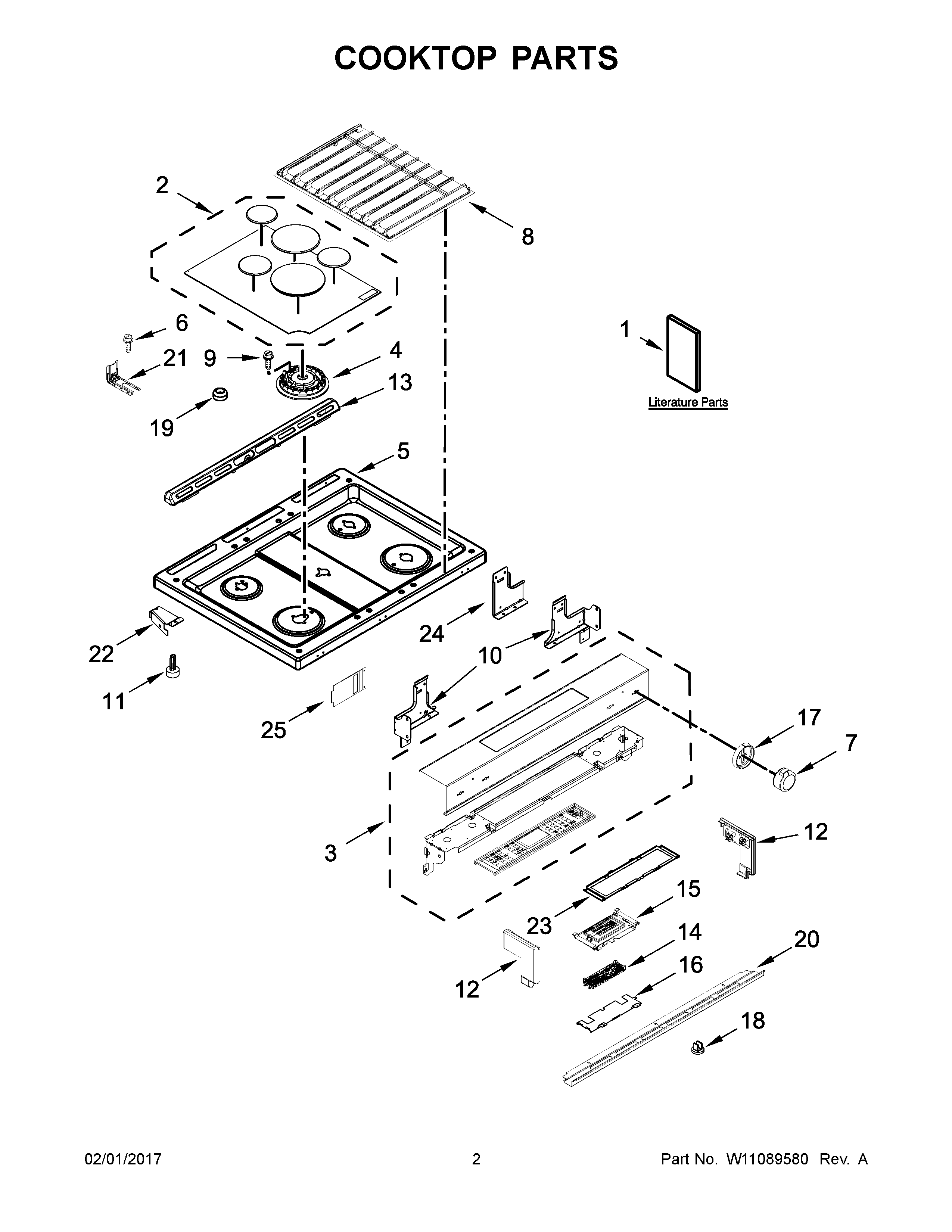

KSGG700EBS1 02 – COOKTOP PARTS

KSGG700EBS1 02 – COOKTOP PARTS

Written by

in

KSGG700EBS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11087486 Whirlpool Spud Orifice
NI	W10580229 Whirlpool Grounding Wire
NI	W11025616 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	WPW10182767 Whirlpool Wire Tie
NI	W11176109 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10909678 Whirlpool ORFCE Spud
NI	W10911846 Whirlpool Wire Harness
1F	GUIDE, QUICK START
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1C	WIRING DIAGRAM
1A	GUIDE, USE & CARE
1G	QUICK START GUIDE (FRENCH)
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
2	W10876582 Whirlpool Burner Cap
3	W11091882 Whirlpool Range Control Panel
4A	W10836467 Whirlpool Burner Head
4B	WPW10256028 Whirlpool Stove Surface Burner Base
4C	WPW10256025 Whirlpool Burner Head
4	W11106799 Whirlpool Range Burner Base Surface
5	W10795406 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7	W10872668 Whirlpool Control Knob
7A	W10872674 Whirlpool Knob
8	W11026378 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10	W10289170 Whirlpool Support Bracket
10A	W10289169 Whirlpool Bracket Support
11	GLIDE, MAIN TOP
12A	W10913413 Whirlpool Endcap Panel
12	W10913412 Whirlpool Panel End Cap
13	W11256338 Whirlpool Vent Trim
14	W11034208-includeCORE Whirlpool W11034208 Refrigerator Control Board + Core
15	WPW10603096 Whirlpool Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10860957 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W10757531 Whirlpool Shield
