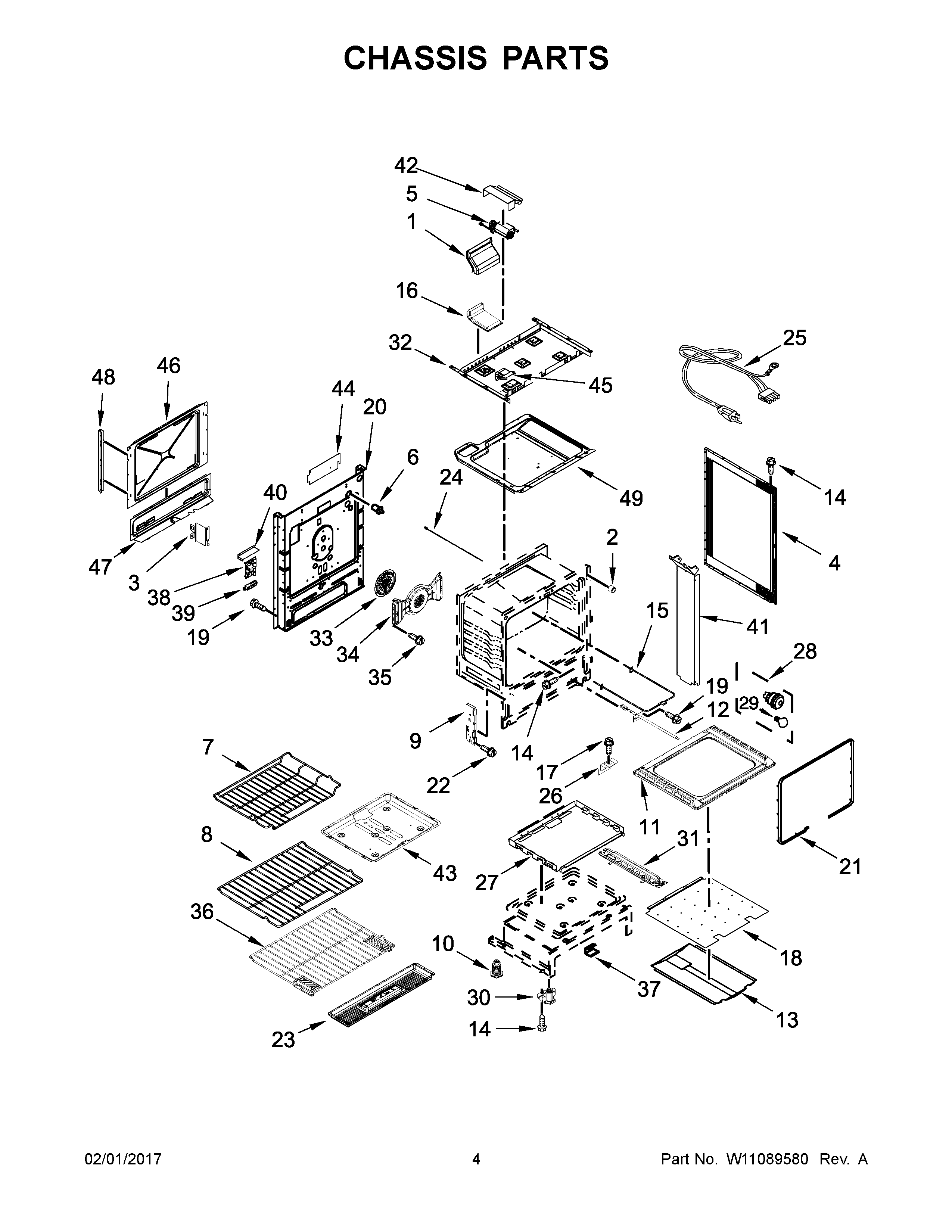

KSGG700EBS1 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, STRAP
NI	W11684889 Whirlpool Insulation
NI	W11688363 Whirlpool Insulation
NI	W11688567 Whirlpool Insulation Assembly
1	W10614920 Whirlpool Oven Flue
2	W10877054 Whirlpool Spacer Assembly
3	W10273002 Whirlpool Support Bracket
4	W11730303 Whirlpool Side Panel
5	W11107275 Whirlpool Range Control Panel Cooling Fan
6	WP9757262 Whirlpool Light Switch
7	W11256463 Whirlpool Oven Rack
8	W11699908 Whirlpool Rack
9	W10647259 Whirlpool Hinge Receiver
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WPW10211368 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	BAFFLE, BAKE BURNER
15	W10552502 Whirlpool Broil Element
16	W11243157 Whirlpool Oven Flue
18	W10323077 Whirlpool Burner Baffle
19	SCREW
20	BACK, MAIN
21	W11562931 Whirlpool Door Gasket
22	W10777162 Whirlpool Screw
23	W11403917 Whirlpool Reservoir Assembly
24	W11370463 Whirlpool Door Rod Assembly
25	W10889764 Whirlpool Power Cord
26	W10035900 Whirlpool Support Bracket
27	W10541959 Whirlpool Heat Shield Assembly
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31A	WPW10306546 Whirlpool Base Rail
32	W10558276 Whirlpool Burner Box
33	W11441001 Whirlpool Convection Fan
34	W11676564 Whirlpool Baffle Conveyor
36	W11673270 Whirlpool Oven Rack
37	W10137382 Whirlpool Clip
38	W10860916 Whirlpool Spark Module
39	WPW10475149 Whirlpool Spark Module
40	W10655451 Whirlpool Spill Guard
41	W10162254 Whirlpool Air Duct
42	W10162255 Whirlpool Exhaust Cover
43	W11379356 Whirlpool Hidden Pan Assembly
44	W10813366 Whirlpool Shield
45	W10162257 Whirlpool HVAC Air Duct
46	W11379354 Whirlpool Rear Cover
47	W10162249 Whirlpool Wire Cover
48	W10162241 Whirlpool Channel
49	W10289168 Whirlpool Burner Box
