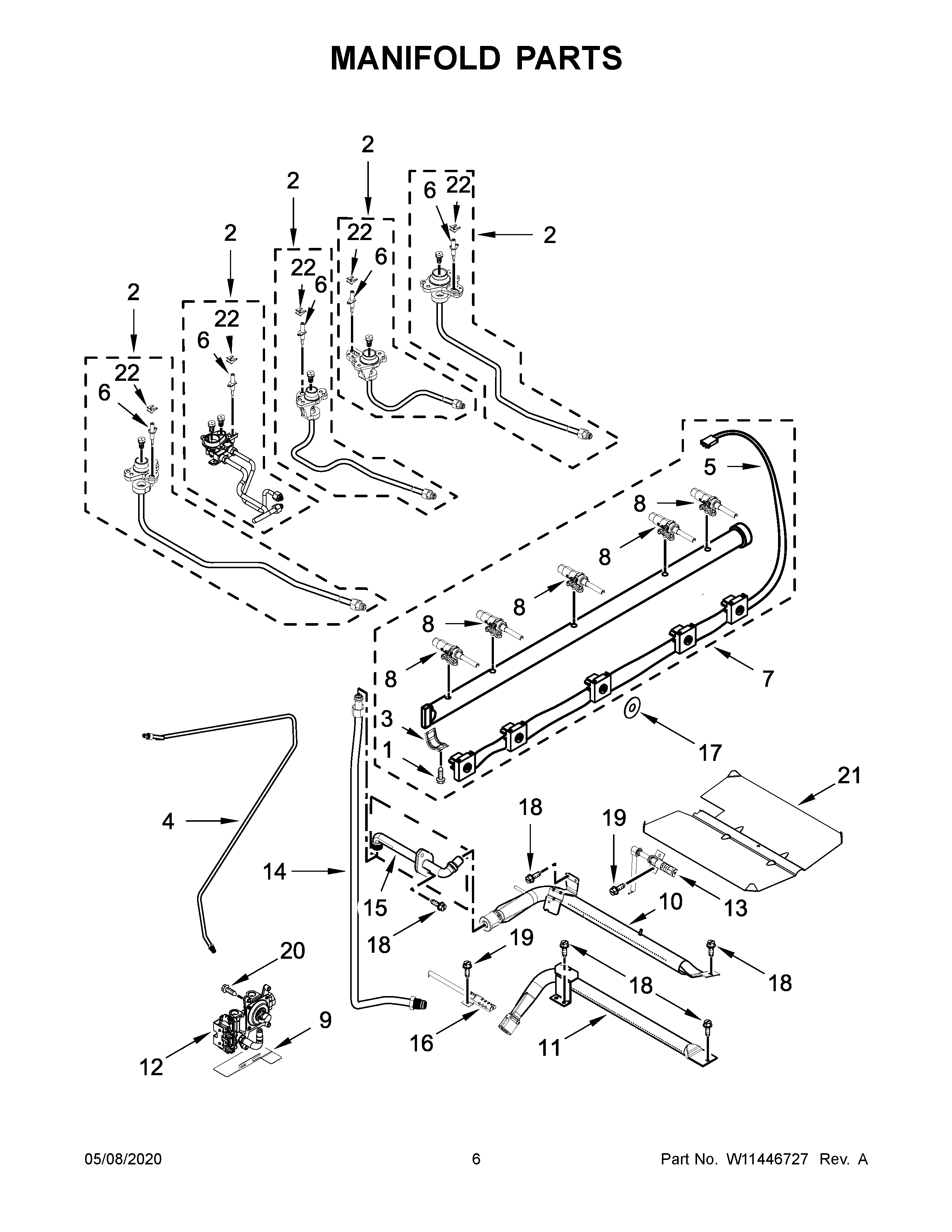

KSGG700EBS2 04 – MANIFOLD PARTS

Products

Position	Product
1	W10295997 Whirlpool Screw
2	W11662212 Whirlpool Range Orifice Holder
2C	W11186522 Whirlpool Orifice Holder
2D	W11186518 Whirlpool Range Orifice Holder
2B	W11186526 Whirlpool Range Orifice Holder
2A	W11186509 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10432252 Whirlpool Gas Tubing
5	W11376663 Whirlpool Wire Harness
6C	W11661897 Whirlpool Range Surface Igniter
6B	W11643126 Whirlpool Surface Igniter
6A	W11666003 Whirlpool Range Surface Igniter
6	W11675301 Whirlpool Range Surface Igniter
7	W11679667 Whirlpool Manifold
8B	W11241561 Whirlpool Burner Valve
8A	W10873134 Whirlpool Burner Valve
8	W11109973 Whirlpool Burner Valve
8C	W11233561 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17	W10140571 Whirlpool Seal Switch
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	W11684564 Whirlpool Clip Assembly
