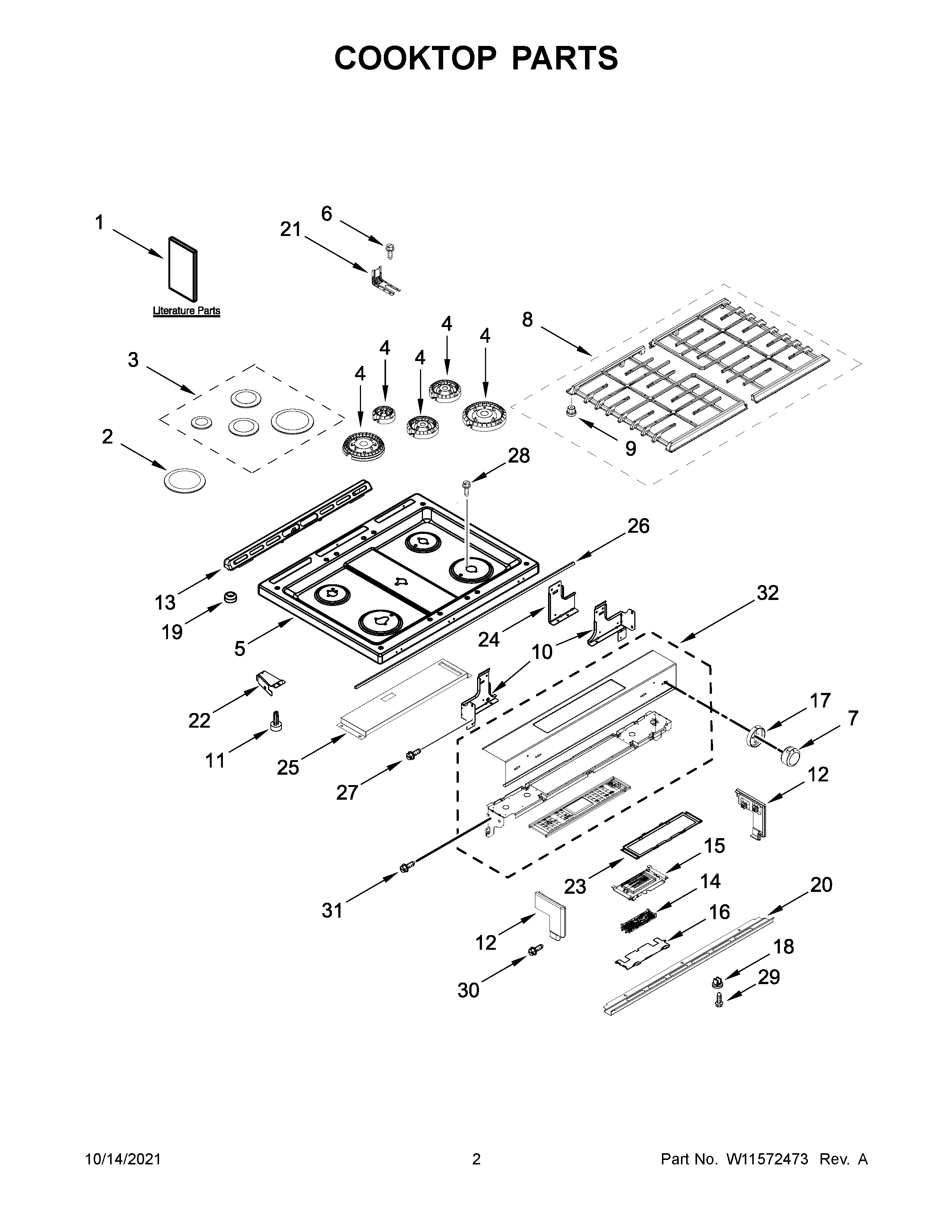

KSGG700EBS3 02 – COOKTOP PARTS

KSGG700EBS3 02 – COOKTOP PARTS

Written by

in

KSGG700EBS3 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11436985 Whirlpool Orifice Spud
NIW10580229 Whirlpool Grounding Wire
NIW11176109 Whirlpool Wire Harness
NIW11198972 Whirlpool Wire Harness
NIW11454287 Whirlpool Wire Harness
NIW11025616 Whirlpool Wire Harness
NIW11087486 Whirlpool Spud Orifice
NICLAMP, WIRE
NIWPW10182767 Whirlpool Wire Tie
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
NIWP3196174 Whirlpool Screw
1OWNERS MANUAL
1BQUICK START GUIDE
1ATECH SHEET
2W11576413 Whirlpool Burner Cap
3W11436988 Whirlpool Burner Cap
4BW11531096 Whirlpool Burner Head
4CW11531097 Whirlpool Burner – Head
4AW11531098 Whirlpool Burner Head
4W11436986 Whirlpool Burner Head
5W11441000 Whirlpool Cooktop
6SCREW, ANTI-TIP KIT
7W10872668 Whirlpool Control Knob
7AW10872674 Whirlpool Knob
8W11026378 Whirlpool Grate Assembly
9W10919249 Whirlpool Burner Grate Foot
10W10289170 Whirlpool Support Bracket
10AW10289169 Whirlpool Bracket Support
11GLIDE, MAIN TOP
12W10913412 Whirlpool Panel End Cap
12AW10913413 Whirlpool Endcap Panel
13W11256338 Whirlpool Vent Trim
14W11034208-includeCORE Whirlpool W11034208 Refrigerator Control Board + Core
15W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16W10558372 Whirlpool Bracket Mounting
17W10814133 Whirlpool Knob Bezel
18W11025100 Whirlpool Insert
19W11690600 Whirlpool Bumper
20W10860957 Whirlpool Mounting Bracket
21W11502257 Whirlpool Anchor Tip
22W10162253 Whirlpool Mounting Bracket
22AW10162252 Whirlpool Bracket Mounting
23W10555923 Whirlpool Mounting Bracket
24W10598048 Whirlpool Support Bracket
25W11355689 Whirlpool Shield
26W10802441 Whirlpool Gasket
27WPW10067840 Whirlpool Screw
28W11241230 Whirlpool Screw
29W10516115 Whirlpool Screw
30W11245710 Whirlpool Refrigerator Screw
31WP3196557 Whirlpool Screw
32W11091882 Whirlpool Range Control Panel
