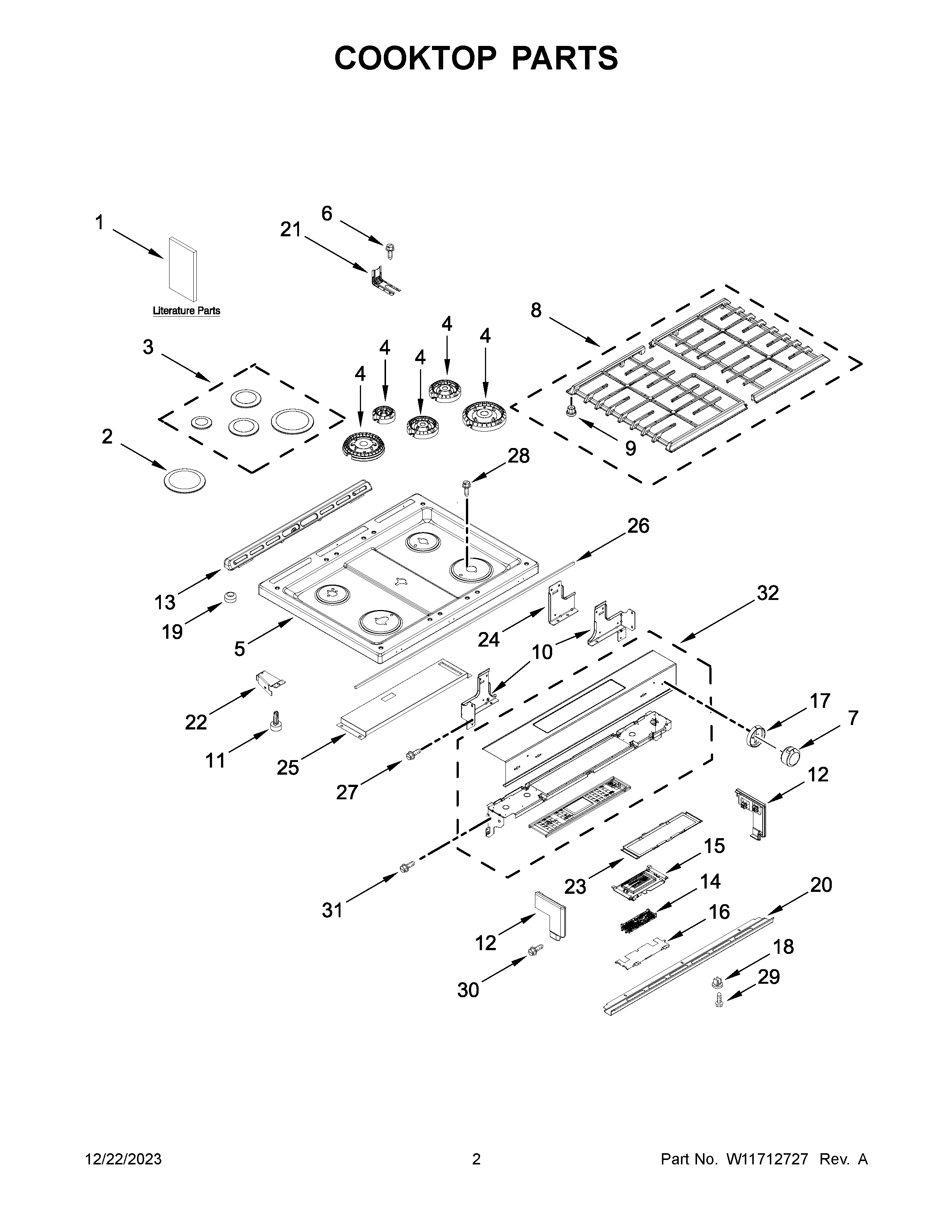

KSGG700EBS7 02 – COOKTOP PARTS
Written by
in
KSGG700EBS7 02 – COOKTOP PARTS
Products
Position
Product
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
W11176109 Whirlpool Wire Harness
NI
W11436985 Whirlpool Orifice Spud
NI
W11087486 Whirlpool Spud Orifice
NI
W11198972 Whirlpool Wire Harness
NI
W11025616 Whirlpool Wire Harness
NI
CLAMP, WIRE
NI
3196896 Whirlpool Clip
NI
WPW10182767 Whirlpool Wire Tie
NI
W10580229 Whirlpool Grounding Wire
NI
W11465340 Whirlpool Wire Harness
NI
WP3196174 Whirlpool Screw
NI
16515 Whirlpool Clip
NI
3400964 Whirlpool Oven Clip
1A
TECH SHEET
1
OWNERS MANUAL
1B
QUICK START GUIDE
2
W11576413 Whirlpool Burner Cap
3
W11436988 Whirlpool Burner Cap
4B
W11531096 Whirlpool Burner Head
4C
W11531097 Whirlpool Burner – Head
4A
W11531098 Whirlpool Burner Head
4
W11436986 Whirlpool Burner Head
5
W11441000 Whirlpool Cooktop
6
SCREW, ANTI-TIP KIT
7A
W10872674 Whirlpool Knob
7
W10872668 Whirlpool Control Knob
8
W11026378 Whirlpool Grate Assembly
9
W10919249 Whirlpool Burner Grate Foot
10
BRACKET,SUPPORT (LEFT)
10A
BRACKET, SUPPORT (RIGHT)
11
GLIDE, MAIN TOP
12
W10913412 Whirlpool Panel End Cap
12A
W10913413 Whirlpool Endcap Panel
13
W11256338 Whirlpool Vent Trim
14
W11685628 Whirlpool Electronic Control Board with Core
15
W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16
W10558372 Whirlpool Bracket Mounting
17
W10814133 Whirlpool Knob Bezel
18
W11025100 Whirlpool Insert
19
W11690600 Whirlpool Bumper
20
W10860957 Whirlpool Mounting Bracket
21
W11502257 Whirlpool Anchor Tip
22A
W10162252 Whirlpool Bracket Mounting
22
W10162253 Whirlpool Mounting Bracket
23
W10555923 Whirlpool Mounting Bracket
24
W10598048 Whirlpool Support Bracket
25
W11355689 Whirlpool Shield
26
GASKET, CONSOLE AND COOKTOP
27
WPW10067840 Whirlpool Screw
28
W11241230 Whirlpool Screw
29
W10516115 Whirlpool Screw
30
W11245710 Whirlpool Refrigerator Screw
31
WP3196557 Whirlpool Screw
32
W11091882 Whirlpool Range Control Panel
←
