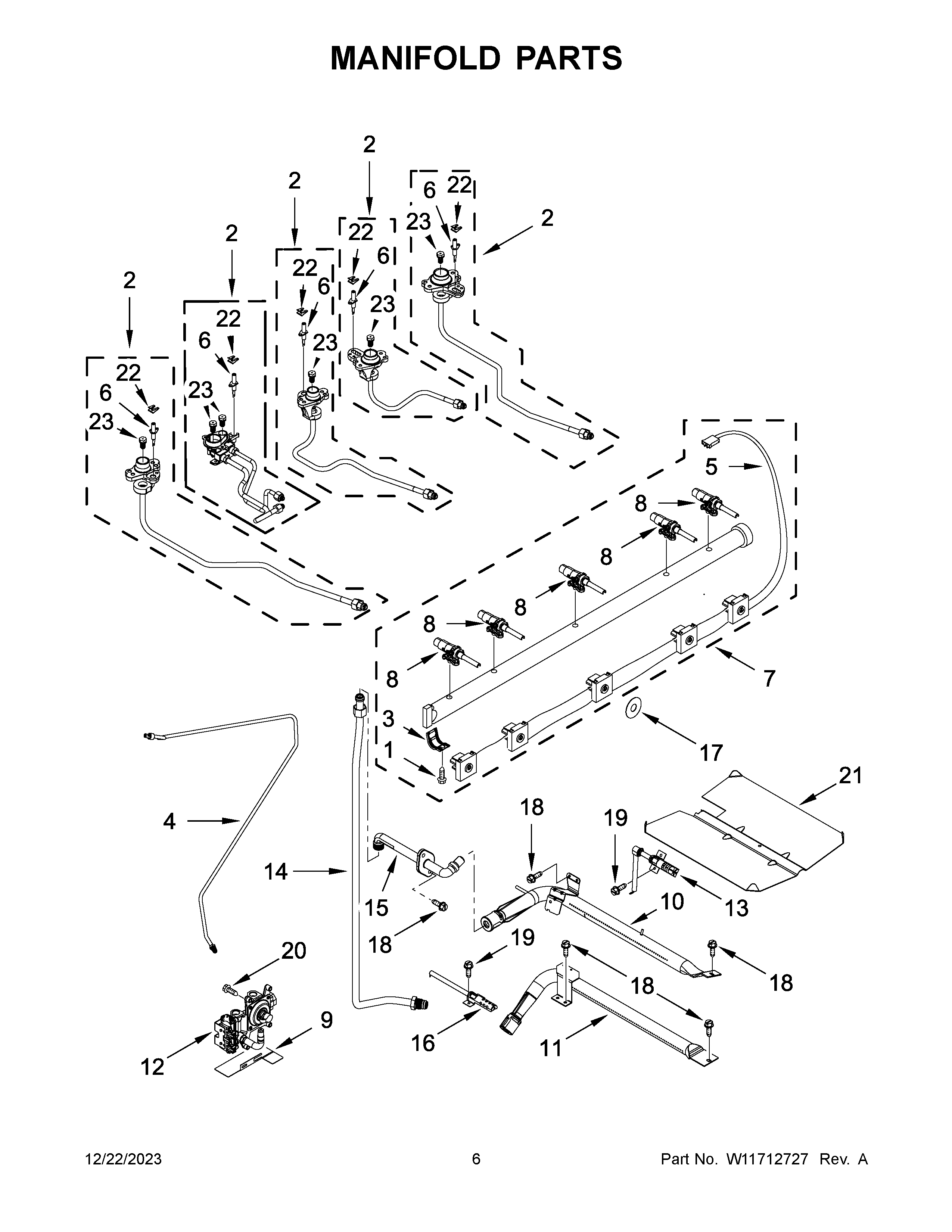

KSGG700EBS7 04 – MANIFOLD PARTS
Written by
in
KSGG700EBS7 04 – MANIFOLD PARTS
Products
Position
Product
NI
W11677633 Whirlpool Spud Orifice
NI
ORIFICE (1.45K) (LEFT FRONT)
NI
W10849717 Whirlpool Orifice Spud
NI
W10849714 Whirlpool Orifice Spud
NI
ORIFICE (8K) (CENTER)
1
W10295997 Whirlpool Screw
2B
W11186526 Whirlpool Range Orifice Holder
2A
W11186509 Whirlpool Orifice Holder
2
W11662212 Whirlpool Range Orifice Holder
2D
W11186518 Whirlpool Range Orifice Holder
2C
W11186522 Whirlpool Orifice Holder
3
W10949105 Whirlpool Mounting Bracket
4
W10432252 Whirlpool Gas Tubing
5
W11376663 Whirlpool Wire Harness
6
W11675301 Whirlpool Range Surface Igniter
6C
W11661897 Whirlpool Range Surface Igniter
6B
W11643126 Whirlpool Surface Igniter
6A
W11666003 Whirlpool Range Surface Igniter
7
W11679667 Whirlpool Manifold
8C
W11233561 Whirlpool Burner Valve
8B
W11241561 Whirlpool Burner Valve
8A
W10873134 Whirlpool Burner Valve
8
W11109973 Whirlpool Burner Valve
9
W10224921 Whirlpool Bracket Mounting
10
W11676566 Whirlpool Range Burner Broiler
11
W10764654 Whirlpool Oven Burner
12
W10861656 Whirlpool Regulator Assembly
13
WPW10324262 Whirlpool Oven Igniter
14
W10306050 Whirlpool Gas Tubing
15
W10583216 Whirlpool Fitting Assembly
16
WPW10333842 Whirlpool Oven Igniter
17
W10140571 Whirlpool Seal Switch
18
SCREW
19
W11684507 Whirlpool Screw
20
WP3400016 Whirlpool Screw Assembly
21
BAFFLE, BROIL BURNER
22
W11684564 Whirlpool Clip Assembly
←
