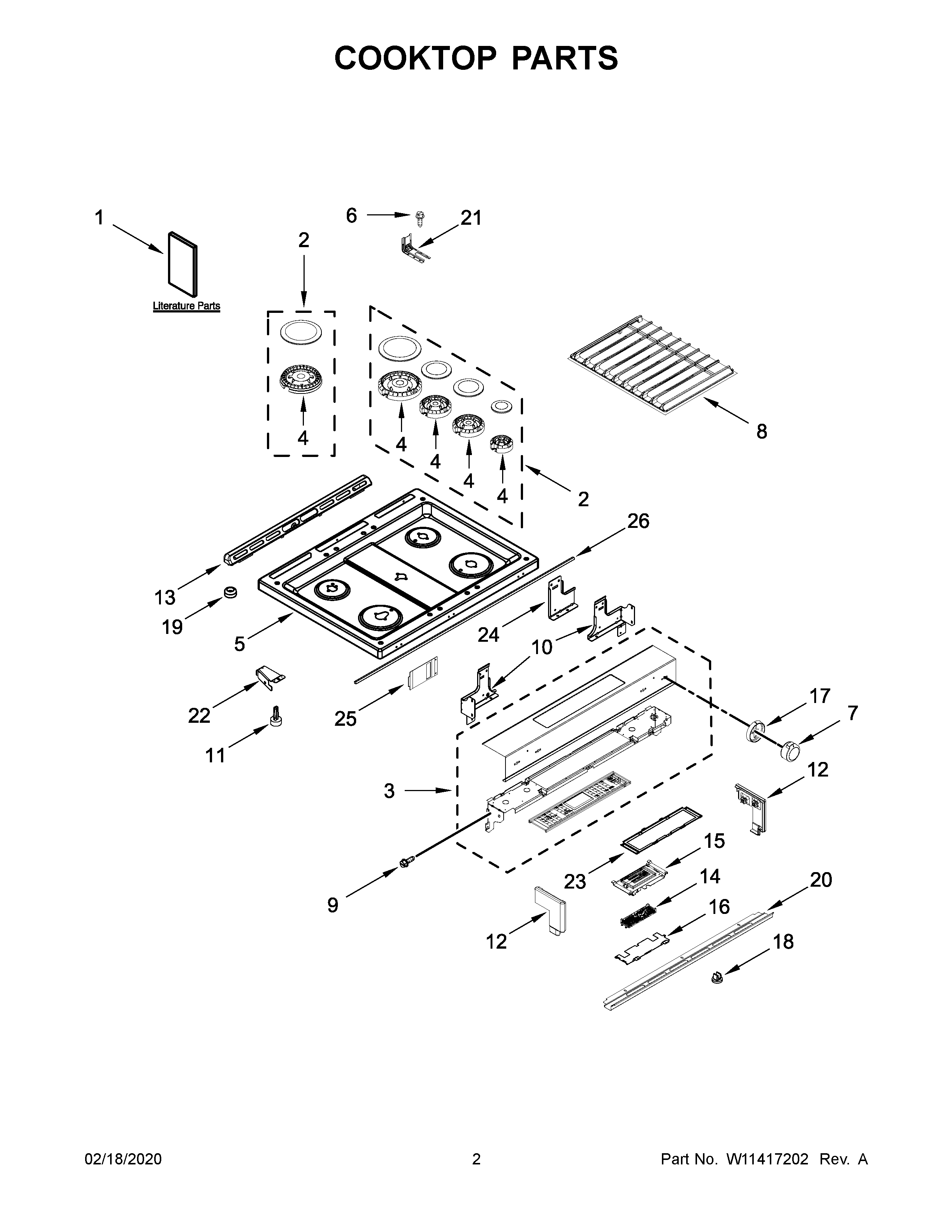

KSGG700ESS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11436985 Whirlpool Orifice Spud
NI	W10580229 Whirlpool Grounding Wire
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
NI	W11123868 Whirlpool Venturi Assembly
NI	W10911846 Whirlpool Wire Harness
NI	W11436988 Whirlpool Burner Cap
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11087486 Whirlpool Spud Orifice
NI	WPW10182767 Whirlpool Wire Tie
NI	CLAMP, WIRE
1B	SHEET, TECH
1E	QUICK START GUIDE (FRENCH)
1	INSTALLATION INSTRUCTIONS
1A	USE & CARE GUIDE
1C	WIRING DIAGRAM
1D	GUIDE, QUICK START
2A	W11443594 Whirlpool Burner Head
2	W11443577 Whirlpool Burner Head
3	W11029431 Whirlpool Range Control Panel – Stainless Steel
4	W11436986 Whirlpool Burner Head
4A	W11084059 Whirlpool Burner Head
4B	W11084058 Whirlpool Burner Head
4C	W11084062 Whirlpool Burner Head
5	W11441000 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7A	W10872674 Whirlpool Knob
7	W10872668 Whirlpool Control Knob
8	W11026378 Whirlpool Grate Assembly
9	WP3196557 Whirlpool Screw
10	W10289170 Whirlpool Support Bracket
10A	W10289169 Whirlpool Bracket Support
11	GLIDE, MAIN TOP
12A	W10555940 Whirlpool Endcap Panel
12	W10555937 Whirlpool Endcap Panel
13	W11256338 Whirlpool Vent Trim
14	W11034208-includeCORE Whirlpool W11034208 Refrigerator Control Board + Core
15	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
16	W10558372 Whirlpool Bracket Mounting
17	W10814133 Whirlpool Knob Bezel
18	W11025100 Whirlpool Insert
19	W11690600 Whirlpool Bumper
20	W10555934 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22A	W10162252 Whirlpool Bracket Mounting
22	W10162253 Whirlpool Mounting Bracket
23	W10555923 Whirlpool Mounting Bracket
24	W10598048 Whirlpool Support Bracket
25	W10757531 Whirlpool Shield
26	W10802441 Whirlpool Gasket
