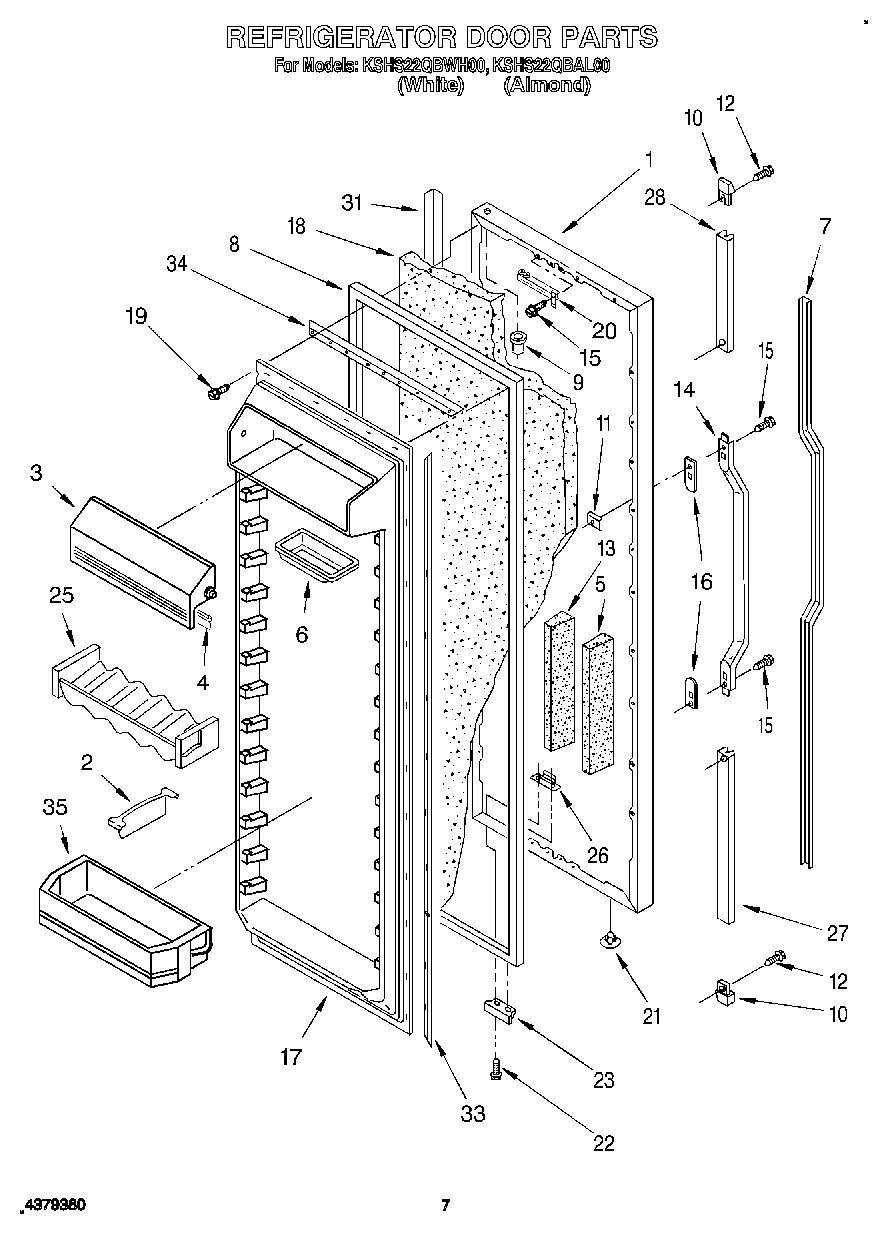

KSHS22QBAL00 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond (Also Order Item 18))
2	WPL 1117999
3	Compartment Door,
4	Gasket, Utility Door
5	Dike, Door Handle Side
6	Butter, Tray
7	Insert, Handle (White)
7	Insert, Handle (Almond)
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
13	Dike, Door Hinge Side
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	Door Closer, Upper Cam
21	Hole Plug (6) (Almond)
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop (Chrome)
25	WPL 1125981
26	Tap, Plate
27	Retainer, Insert
28	Retainer, Insert
31	Trim, Door
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Trim Kit Trim Kit Panel
35	Almond Handle Insert
35	Bin, Door Shelf Deep. Wide
35	Trim Kit Panel (White)
35	Woodgrain
35	Handle Insert (Black)
35	Black Grille Kit
