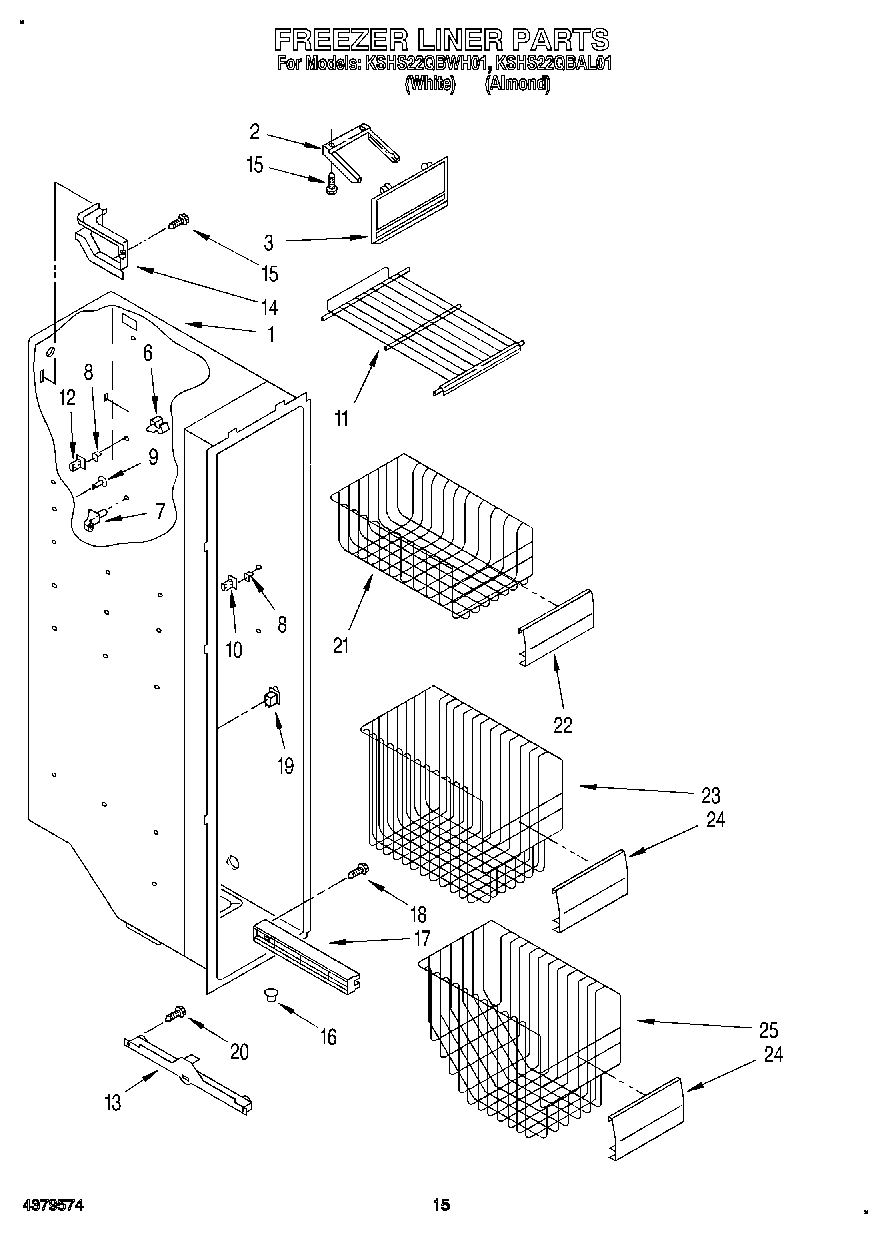

KSHS22QBAL01 09 – FREEZER LINER

KSHS22QBAL01 09 – FREEZER LINER

Written by

in

KSHS22QBAL01 09 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
3Door, Ice Compartment
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Support
9Grommet (8)
10Stud, Front R.S.
11Shelf
12Stud, Rear R.S.
13W10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14Cover, Wiring
15WP488729 Whirlpool Refrigerator Door Screw
16Drain Ferrule
17Shelf Track (Left Side (4))
17Shelf Track (Right Side (4))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20718257 Whirlpool Dishwasher Screw
21Basket, Small
22Front, Basket
23Basket, Upper
24Front, Basket
25Basket, Lower
