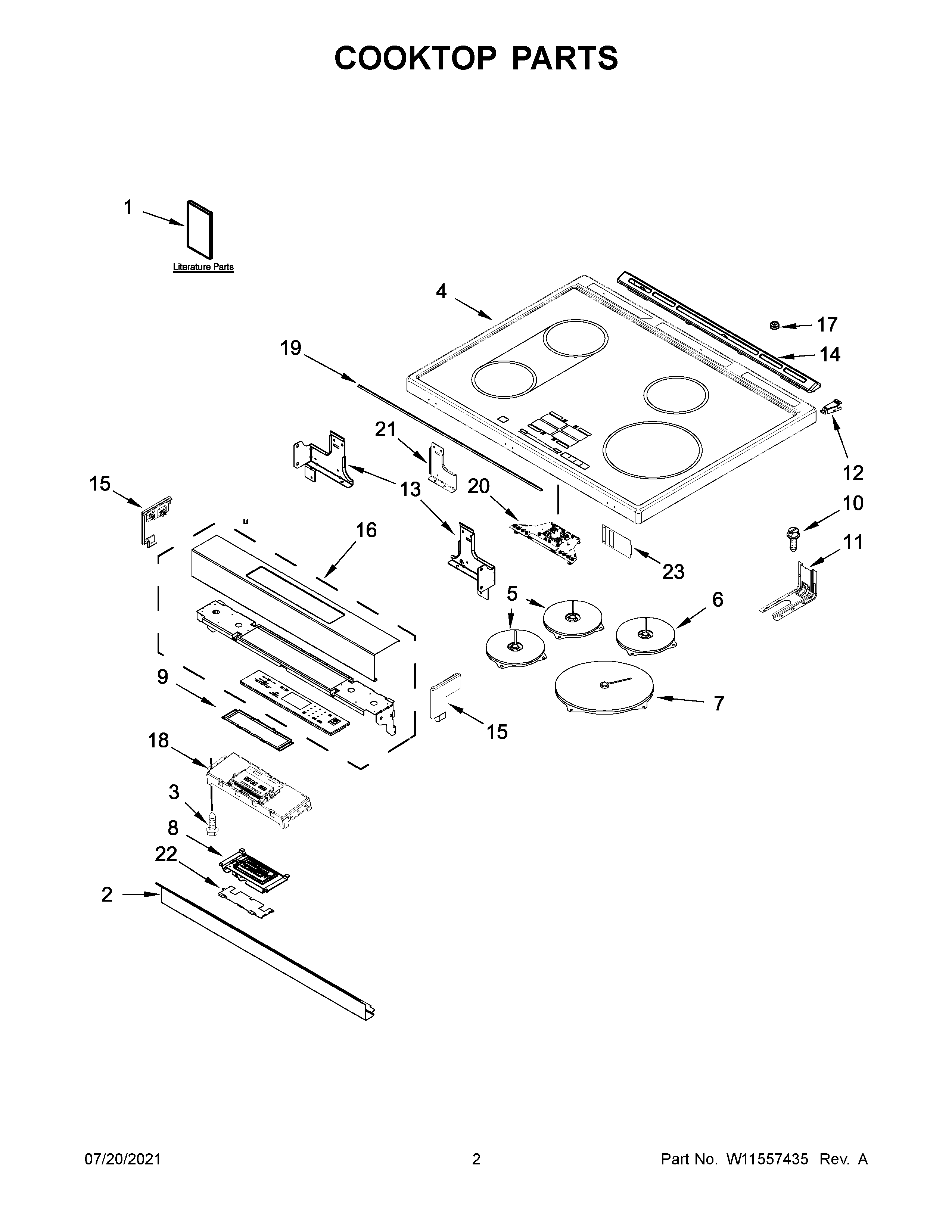

KSIB900ESS3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11175842 Whirlpool Suppressor
NI	Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	3400964 Whirlpool Oven Clip
NI	W11226775 Whirlpool Wire Harness
NI	W11454514 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W11025616 Whirlpool Wire Harness
1B	QUICK START GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
2	W10743276 Whirlpool Mounting Bracket
3	SCREW
4	W10808299 Whirlpool Cooktop
5	W11672688 Whirlpool Surface Element
6	WPW10410580 Whirlpool Hot Plate
7	WPW10410578 Whirlpool Hot Plate
8	W11128223 Whirlpool Display
9	W10555923 Whirlpool Mounting Bracket
10	SCREW, ANTI-TIP KIT
11	W11502257 Whirlpool Anchor Tip
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13	W10289169 Whirlpool Bracket Support
13A	W10289170 Whirlpool Support Bracket
14	W11170796 Whirlpool Vent Trim
15A	W10555940 Whirlpool Endcap Panel
15	W10555937 Whirlpool Endcap Panel
16	W11034444 Whirlpool Control Panel
17	W11104127 Whirlpool Bumper Assembly
18	W11100619 Whirlpool Electronic Control Board
19	W10802441 Whirlpool Gasket
20	W11208294 Whirlpool Display
21	W10598048 Whirlpool Support Bracket
22	W10558372 Whirlpool Bracket Mounting
23	W11355689 Whirlpool Shield
