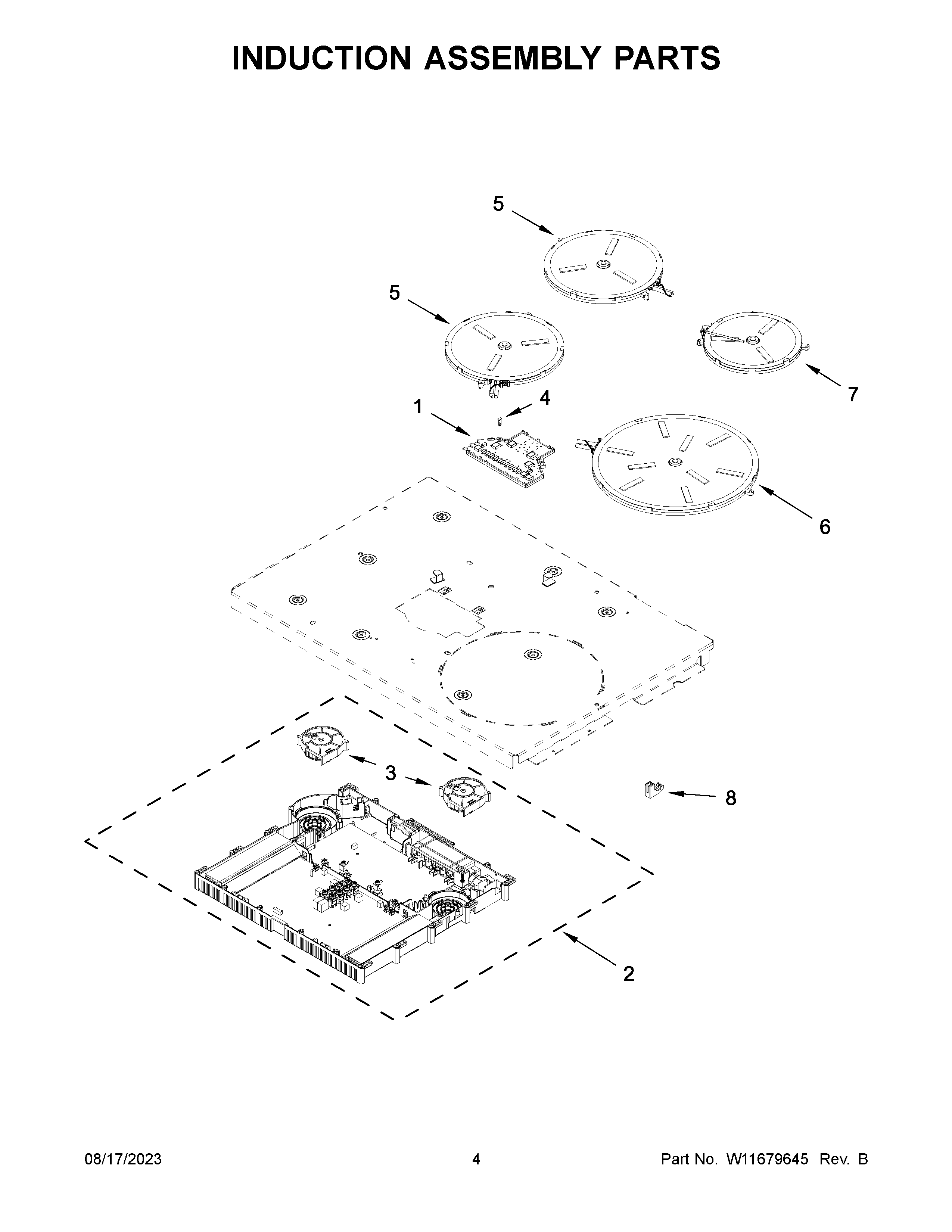

KSIS730PSS0 03 – INDUCTION ASSEMBLY PARTS

KSIS730PSS0 03 – INDUCTION ASSEMBLY PARTS

Written by

in

KSIS730PSS0 03 – INDUCTION ASSEMBLY PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11689158 Whirlpool Wire Harness
NIHARNESS, INDUCTION COOKTOP PAN, INDUCTION (UPPER)
NI16515 Whirlpool Clip
1W11689156 Whirlpool Display
2W11689155 Whirlpool Module Assembly
3FAN, COOLING
5W11689152 Whirlpool Hotplate
6W11689153 Whirlpool Hotplate
7W11689154 Whirlpool Hotplate
8STRAIN RELIEF, CABLE
