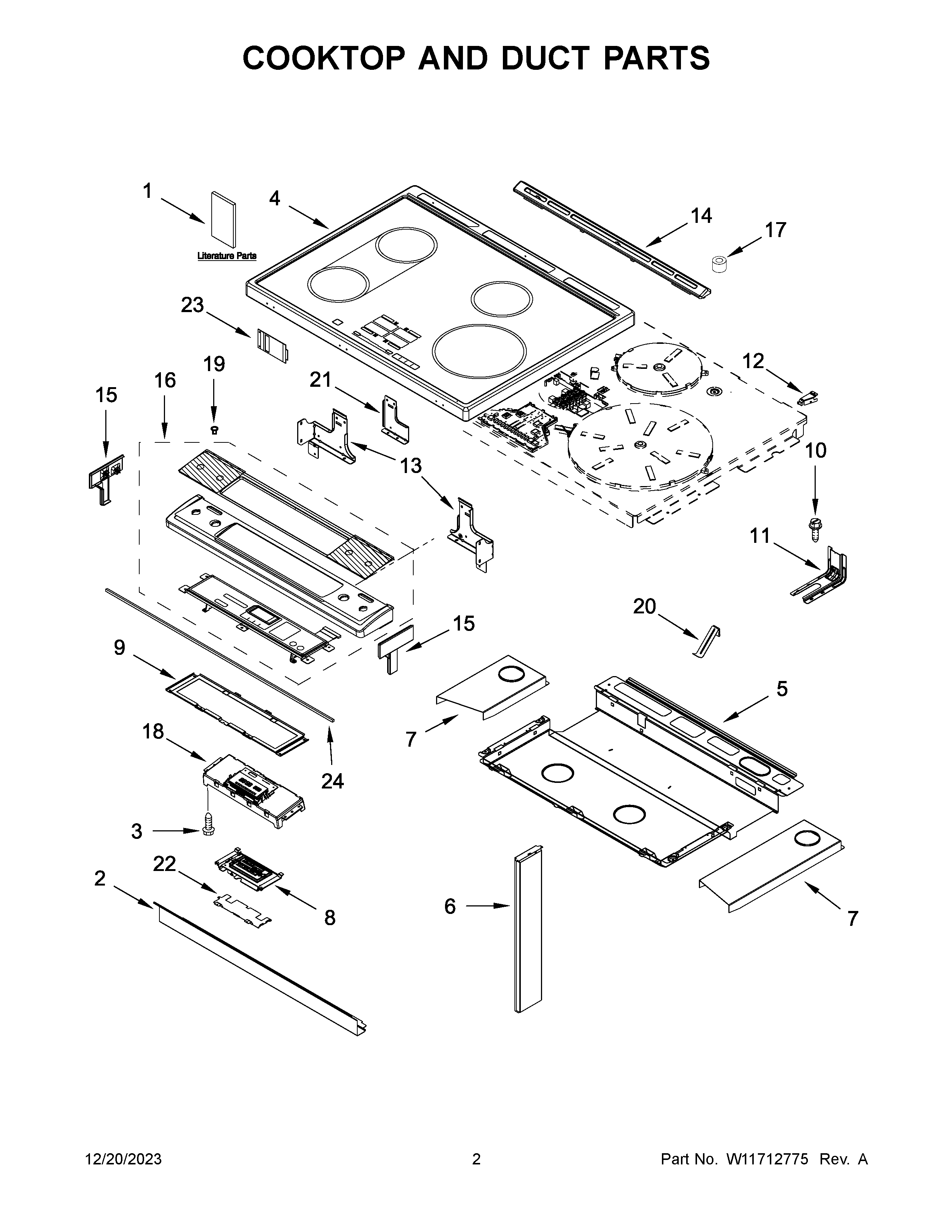

KSIS730PSS1 02 – COOKTOP AND DUCT PARTS

Products

Position	Product
NI	W11691348 Whirlpool Electronic Control Core
NI	Nut
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	16515 Whirlpool Clip
NI	W11025616 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
1B	QUICK START GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
1C	DIMENSION GUIDE
2	W10743276 Whirlpool Mounting Bracket
3	SCREW
4	W11690817 Whirlpool Cooktop
5	PAN, INDUCTION (LOWER)
6	ASSEMBLY, INDUCTION SIDE DUCT
7A	DUCT, RECIRCULATION PLATE (RIGHT)
7	DUCT, RECIRCULATION PLATE (LEFT)
8	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
9	W10555923 Whirlpool Mounting Bracket
10	SCREW, ANTI-TIP KIT
11	W11502257 Whirlpool Anchor Tip
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	W10289170 Whirlpool Support Bracket
13	W10289169 Whirlpool Bracket Support
14	W11170796 Whirlpool Vent Trim
15	W10555937 Whirlpool Endcap Panel
15A	W10555940 Whirlpool Endcap Panel
16	W11691346 Whirlpool Control Panel
17	W11690600 Whirlpool Bumper
18	W11691347-includeCORE Whirlpool Electronic Control+Core
19	WP3196068 Whirlpool Light Lens
20	SPRING (CANTILEVER)
21	W10598048 Whirlpool Support Bracket
22	W10558372 Whirlpool Bracket Mounting
23	W11355689 Whirlpool Shield
24	W10802441 Whirlpool Gasket
