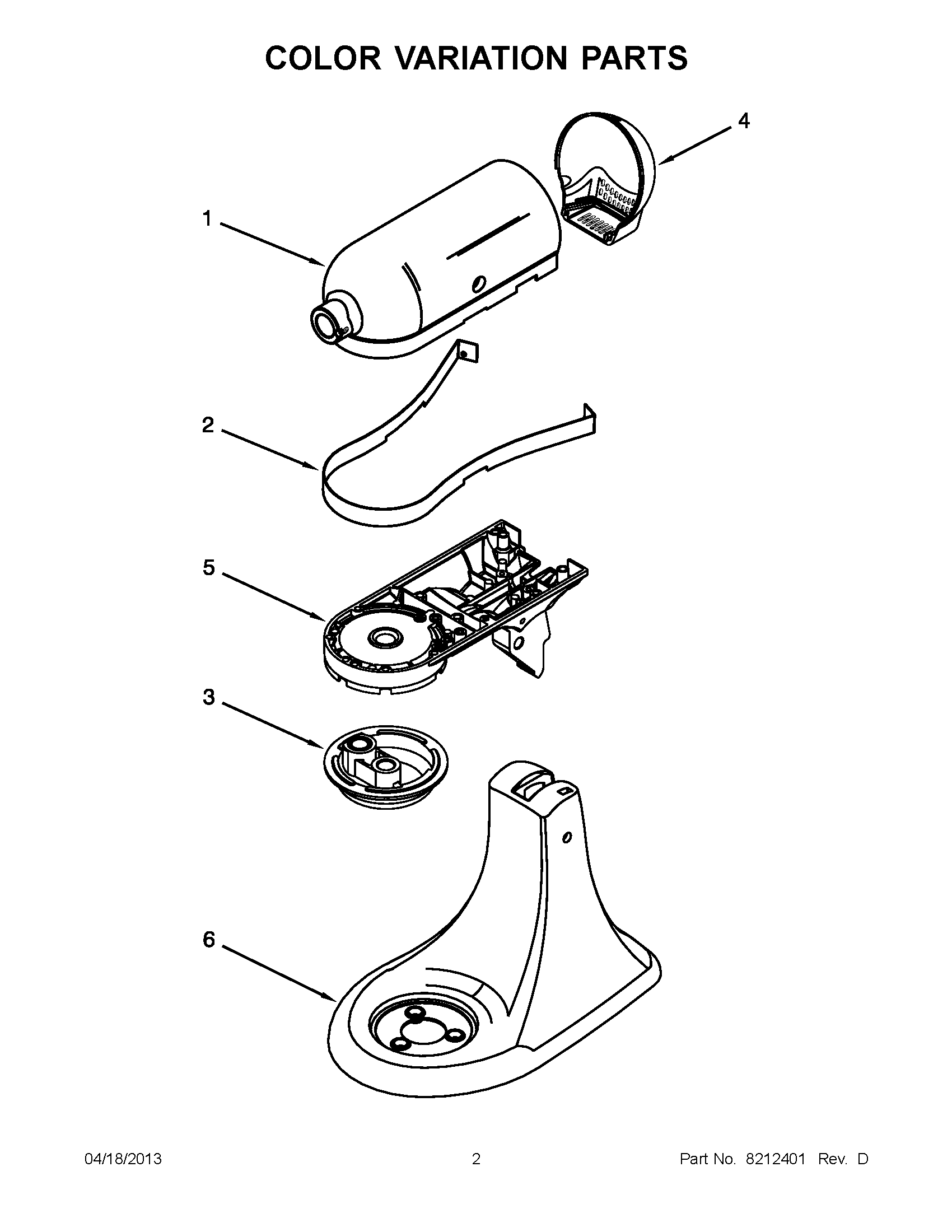

KSM100PSDP0 01 – COLOR VARIATION PARTS

Products

Position	Product
1	9704025 Whirlpool Housing Assembly
1	Motor Housing (White)
1	MOTOR HOUSING (EMPIRE RED)
1	Motor Housing (Onyx Black)
1	MOTOR HOUSING (CRANBERRY/FLAMINGO)
1	MOTOR HOUSING (SLATE/DARK PEWTER)
2	Trim Band (Black)
2	Trim Band (Grey)
3	WPL 9706799
3	PLANETARY (EMPIRE RED)
3	PLANETARY (SLATE/DARK PEWTER)
3	9706670 Whirlpool Planetary
3	PLANETARY-Onyx Black
3	PLANETARY-White
4	9706801 Whirlpool Cover
4	END COVER-White
4	9704029 Whirlpool Cover Assembly
4	END COVER (SLATE/DARK PEWTER)
4	END COVER (EMPIRE RED)
4	END COVER (ONYX BLACK)
5	LOWER GEARCASE-White
5	LOWER GEARCASE (ONYX BLACK)
5	LOWER GEARCASE-Empire Red
5	9706792 Whirlpool Gearcase
5	9706662 Whirlpool Gearcase Assembly
5	LOWER GEARCASE (SLATE/DARK PEWTER)
6	3179260 Whirlpool Pedestal
6	W11131262 Whirlpool Pedestal
6	WPL 9706790
6	WPL 9706684
6	PEDESTAL W/FEET (SLATE/DARK PEWTER)
6	Pedestal w/Feet (Onyx Black)
