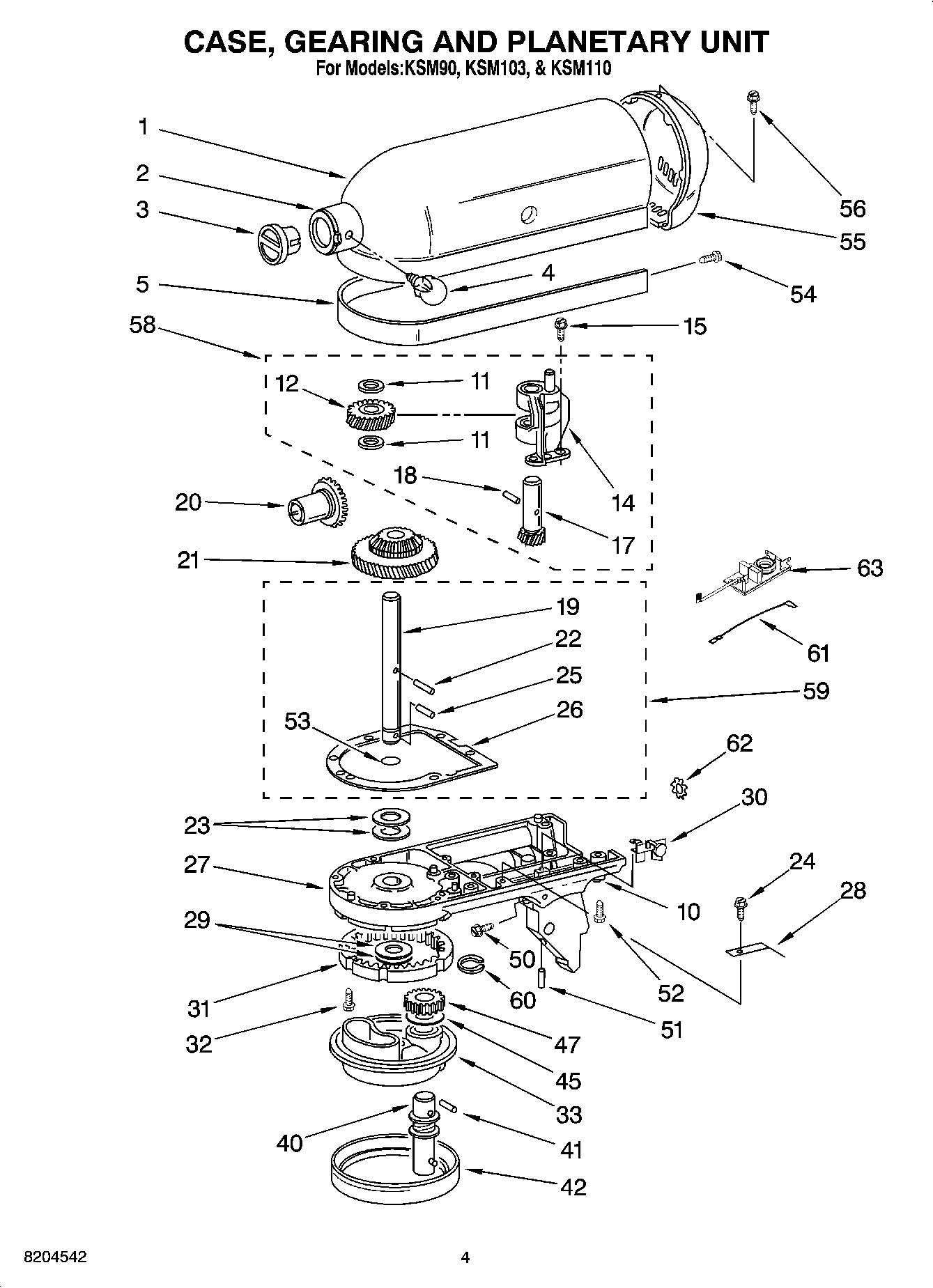

KSM103 02 – CASE, GEARING, AND PLANETARY UNIT

Products

Position	Product
1	Gearcase Motor Housing
2	4159709 Whirlpool Ring
3	CAP, ATTACHMNT HUB (PAINTED)
3	Cap, Attachment Hub
4	WP9709194 Whirlpool Black Thumb Screw
4	Thumb Screw (Buff)
4	Thumb Screw (White (Storm Gray))
5	Band, Trim
10	WP8533914 Whirlpool Lock
11	WPW10323373 Whirlpool Washer
12	WPW10112253 Whirlpool Gear Assembly
14	W11082541 Whirlpool Bearing
15	W11097298 Whirlpool Dishwasher Screw
17	Shaft & Pinion
18	WP9705444 Whirlpool Pin Groove
19	WP240026 Whirlpool Control Shaft
20	Gear, Attachment Hub Bevel (23T)
21	W11192794 Whirlpool HUB Gear
24	WPL 4176022
25	WP9705443 Whirlpool Pin Groove
26	WP4162324 Whirlpool Case Gasket
27	Lower Gear Case
28	WPL 9701864
29	WPW10323378 Whirlpool Washer
30	WP3184200 Whirlpool Latch Lever
31	W11340106 Whirlpool Gear Assembly
32	Screw, Special (5)
33	Planetary
40	WP243368 Whirlpool Agitator Shaft
41	Pin (Vertical Center Shaft)
42	WP240285 Whirlpool Drip Ring
45	Washer, Shim (.015`` Thk.) (.031`` Thk.)
47	W11133645 Whirlpool Pinion Gear
50	W11028216 Whirlpool Screw
51	WP3400203 Whirlpool Screw
52	WP3400025 Whirlpool Screw
53	O RING
54	W10853069 Whirlpool Screw
55	WPL ARI92217A1
56	WP241877 Whirlpool Screw
58	GEAR, WORM AND BRACKET
59	4160474 Whirlpool Control Shaft
60	WP9703438 Whirlpool Snap Retaining Ring
61	WPL 9702311
62	W11170663 Whirlpool Washer
63	WPL 9706789
63	4176340 Whirlpool Refrigerator Mixer Filter
