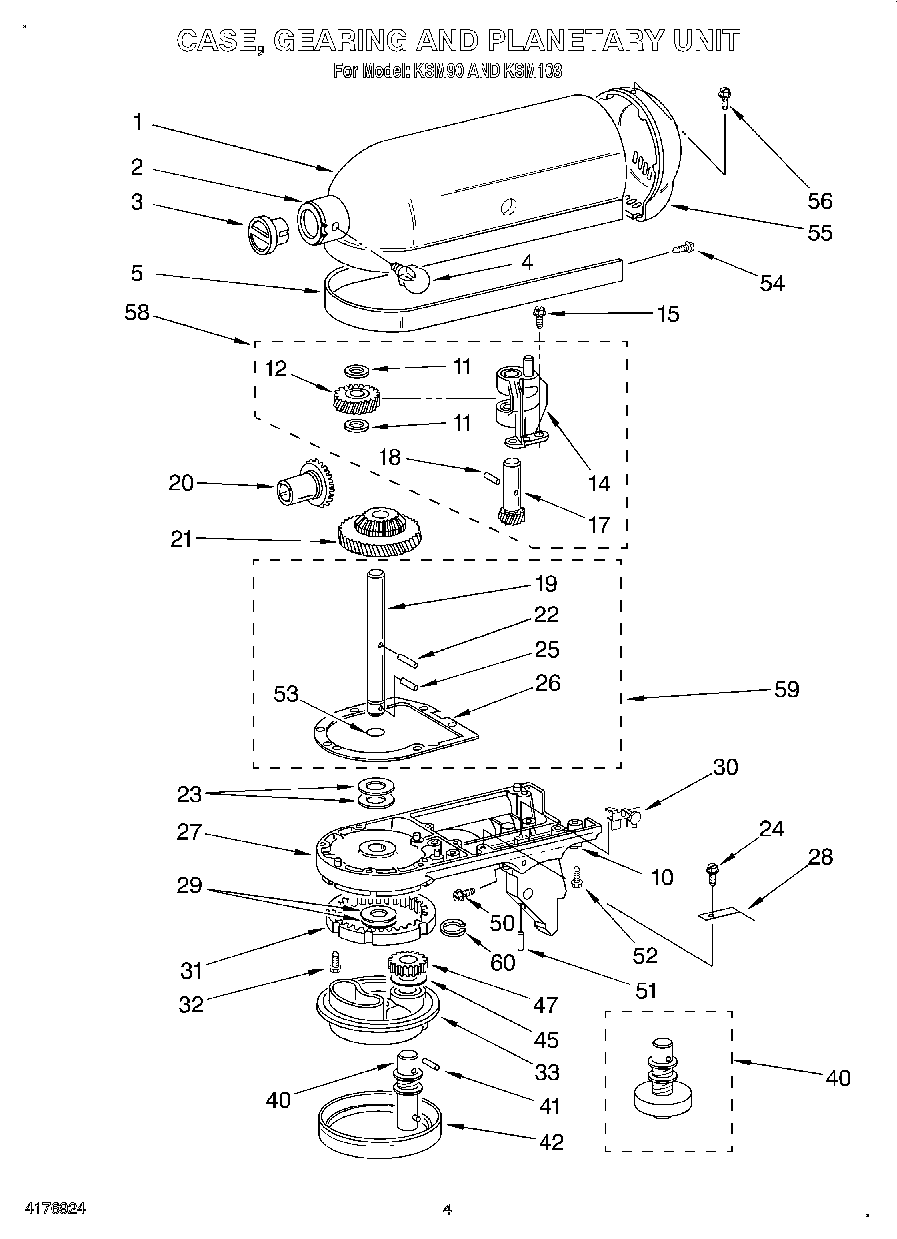

KSM103RB 04 – CASE, GEARING AND PLANETARY
Written by
in
KSM103RB 04 – CASE, GEARING AND PLANETARY
Products
Position
Product
1
GEARCASE MOTOR HOUSING-Biscuit
1
W11672793 Whirlpool Housing
1
GEARCASE MOTOR HOUSING-NICKEL (INTERNATIONAL)
1
GEARCASE MOTOR HOUSING-Majestic Yellow
1
GEARCASE MOTOR HOUSING-Empire Green
1
GEARCASE MOTOR HOUSING-Imperial Gray
1
WP240291-7 Whirlpool Housing Assembly
1
WP240291-21 Whirlpool Housing
1
Motor Housing (Chrome)
1
WP240291-16 Whirlpool Housing
1
GEARCASE MOTOR HOUSING-Sea Green
1
WP240291-22 Whirlpool Housing
1
WP240291-13 Whirlpool Housing
1
Motor Housing (Royal Crimson)
1
9706473 Whirlpool Housing
1
Motor Housing (Black Chrome)
1
MOTOR HOUSING-Caviar
1
9704752 Whirlpool Housing
1
WP9706270 Whirlpool Housing
2
4159709 Whirlpool Ring
3
W11047429 Whirlpool Hub Cap
3
W11048596 Whirlpool Hub Chrome Cap
4
WP9709194 Whirlpool Black Thumb Screw
4
WP9709196 Whirlpool Screw
5
TRIM BAND-INTERNATIONAL
5
9702645 Whirlpool Trim Band
10
WP8533914 Whirlpool Lock
11
WPW10323373 Whirlpool Washer
12
WPW10112253 Whirlpool Gear Assembly
14
W11082541 Whirlpool Bearing
15
W11097298 Whirlpool Dishwasher Screw
17
WP240210-2 Whirlpool Worm Gear
18
WP9705444 Whirlpool Pin Groove
19
WP240026 Whirlpool Control Shaft
20
Gear, Attachment Hub Bevel (23T)
21
W11192794 Whirlpool HUB Gear
24
WPL 4176022
25
WP9705443 Whirlpool Pin Groove
26
WP4162324 Whirlpool Case Gasket
27
WPL 4176205
27
WPL 9705238
27
WPL 4176221
27
WPL 4173573
27
WPL 4176325
27
WPL 9705526
27
WPL 9706273
27
WPL 9706472
27
WP240350-31 Whirlpool Gearcase
27
WP240350-84 Whirlpool Gearcase
27
W10861717 Whirlpool Gearcase
27
WPL 4176326
27
240350-62 Whirlpool Gearcase
27
WPL 4176450
27
WPL 4176336
27
WPL 9704748
27
WPL 4176121
27
WP240350-56 Whirlpool Gearcase
28
WPL 9701864
29
WPW10323378 Whirlpool Washer
30
WP3184200 Whirlpool Latch Lever
31
W11340106 Whirlpool Gear Assembly
32
WPL 4160595
33
WPL 9705533
33
WPL 4176203
33
240286-24 Whirlpool Mixer Planetary Gear
33
PLANETARY-Caviar
33
PLANETARY-NICKEL
33
9704755 Whirlpool Planetary Assembly
33
W10128414 Whirlpool Planetary Gear
33
WPL 4176226
33
WP240286-1 Whirlpool Planetary Mixer
33
WPL 4176338
33
W11199173 Whirlpool Planetary Assembly
33
W11084831 Whirlpool Planetary Mixer
33
240286-22 Whirlpool Planetary Assembly
33
9706670 Whirlpool Planetary
33
240286-18 Whirlpool Planetary
33
240286-10 Whirlpool Planetary Gear
33
WPL 4176089
33
WPL 9706475
40
WP243368 Whirlpool Agitator Shaft
41
WP9707223 Whirlpool Dowel Pin
42
WP240285 Whirlpool Drip Ring
45
Washer, Shim (.015“ Thk.) (.031“ Thk.)
47
W11133645 Whirlpool Pinion Gear
50
W11028216 Whirlpool Screw
51
WP3400203 Whirlpool Screw
52
WP3400025 Whirlpool Screw
53
WP67500-55 Whirlpool O-Ring
54
W10853069 Whirlpool Screw
55
WPW10291362 Whirlpool Cover
55
WPL 4176134
55
9704029 Whirlpool Cover Assembly
55
9706469 Whirlpool Cover
55
WPL 4176224
55
240253-8 Whirlpool End Cover
55
WP240253-1 Whirlpool Cover
55
W11084313 Whirlpool Cover
55
9704757 Whirlpool Cover Assembly
55
WPL 9705527
55
WPL 4176320
55
240253-16 Whirlpool Cover
55
240253-23 Whirlpool Cover Assembly
55
W10291364 Whirlpool Cover Assembly
55
9705241 Whirlpool Cover
55
WPL 4176202
55
240253-14 Whirlpool Cover Assembly
55
240253-21 Whirlpool Cover
56
WP241877 Whirlpool Screw
58
GEAR-WORM
59
4160474 Whirlpool Control Shaft
60
WP9703438 Whirlpool Snap Retaining Ring
←
