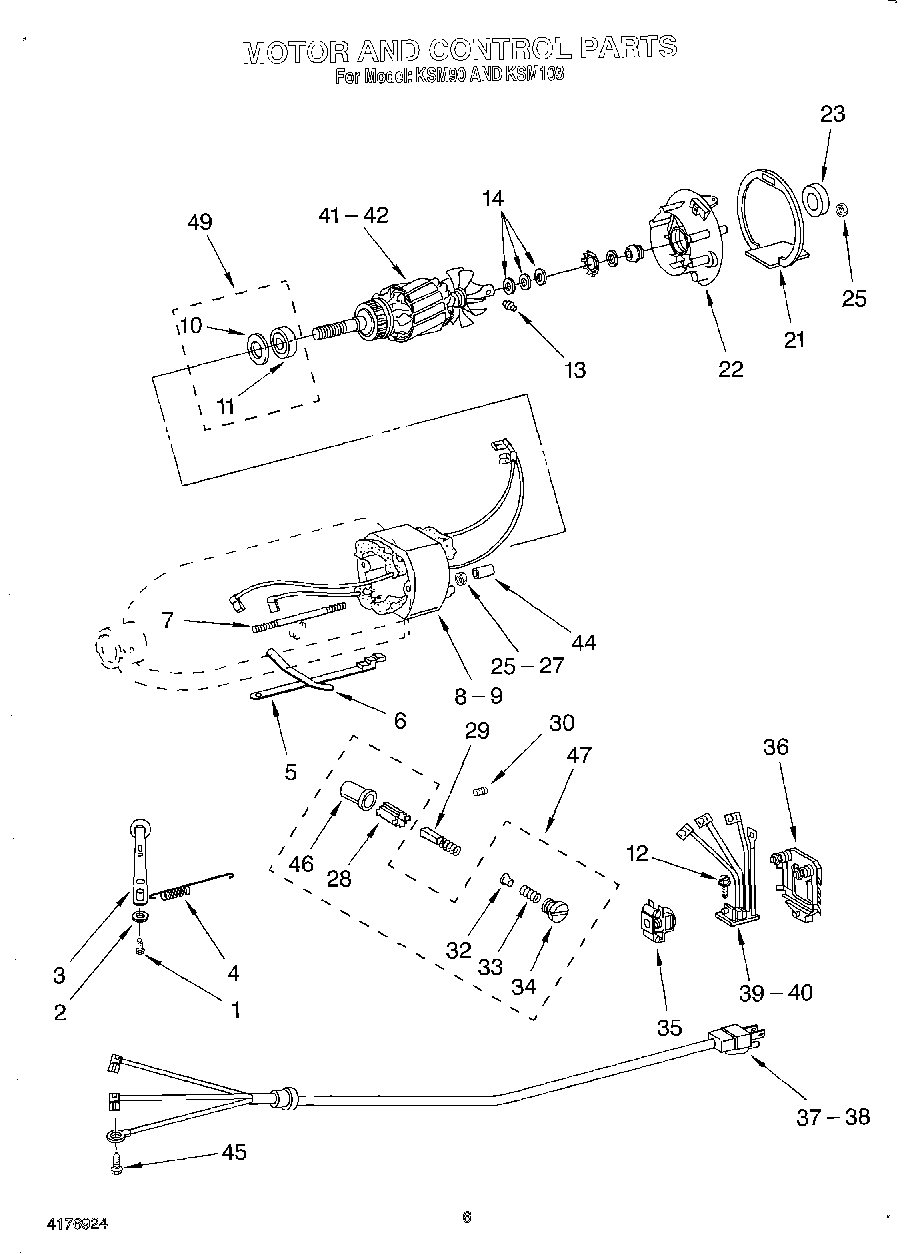

KSM103RB 05 – MOTOR AND CONTROL

Products

Position	Product
1	Screw, Pivot
2	Washer, Spring
3	WP9709277 Whirlpool Speed Lever
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	W10870869 Whirlpool Field Assembly
9	WPW10417246 Whirlpool Field Assembly
10	Washer, Ball Bearing (Front)
11	W11133634 Whirlpool Armature
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
21	WP240775-1 Whirlpool Endcap Seal
22	WP3180526 Whirlpool Bearing Bracket
23	Washer, Felt Bearing
25	Nut, Machine Hex (10-24)
27	Lock Washer No.10 Ext. Shake- proof
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184211 Whirlpool Brush Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
35	WPW10330804 Whirlpool Speed Governor
36	WPW10119326 Whirlpool Speed Control
37	W11545825 Whirlpool Power Cord
37	Cord & Plug 115V (White (International))
37	W11396625 Whirlpool Power Cord
37	Cord & Plug 115 Volt (Black (International))
38	Cord & Plug 110 Volt (Cord & Plug (220 Volts))
39	WPW10325124 Whirlpool Phase Board
40	W11174552 Whirlpool Stand Mixer Phase Board
42	W10900799 Whirlpool Armature
44	W11210996 Whirlpool Sleeve
45	WPL 4176022
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
49	W11200218 Whirlpool Grease Filter
49	PASTA MAKER PLATES (SNPA)
49	SAUSAGE STUFFER KIT (SSA)
49	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
49	Speed Disc (Service Tool)
49	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
49	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
49	Grain Mill (GM-A)
49	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
49	Food Tray (FT)
49	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
49	W11312468 Whirlpool Pour Shelf
49	W10802058 Whirlpool Mixer Bowl
49	FOOD GRINDER (FG-A)
49	JUICER (JE)
49	CAN OPENER (CO)
49	Bowl,
49	WPL 3180617
49	WPL 4176025
49	Bowl Cover, Plastic Non-Sealing
