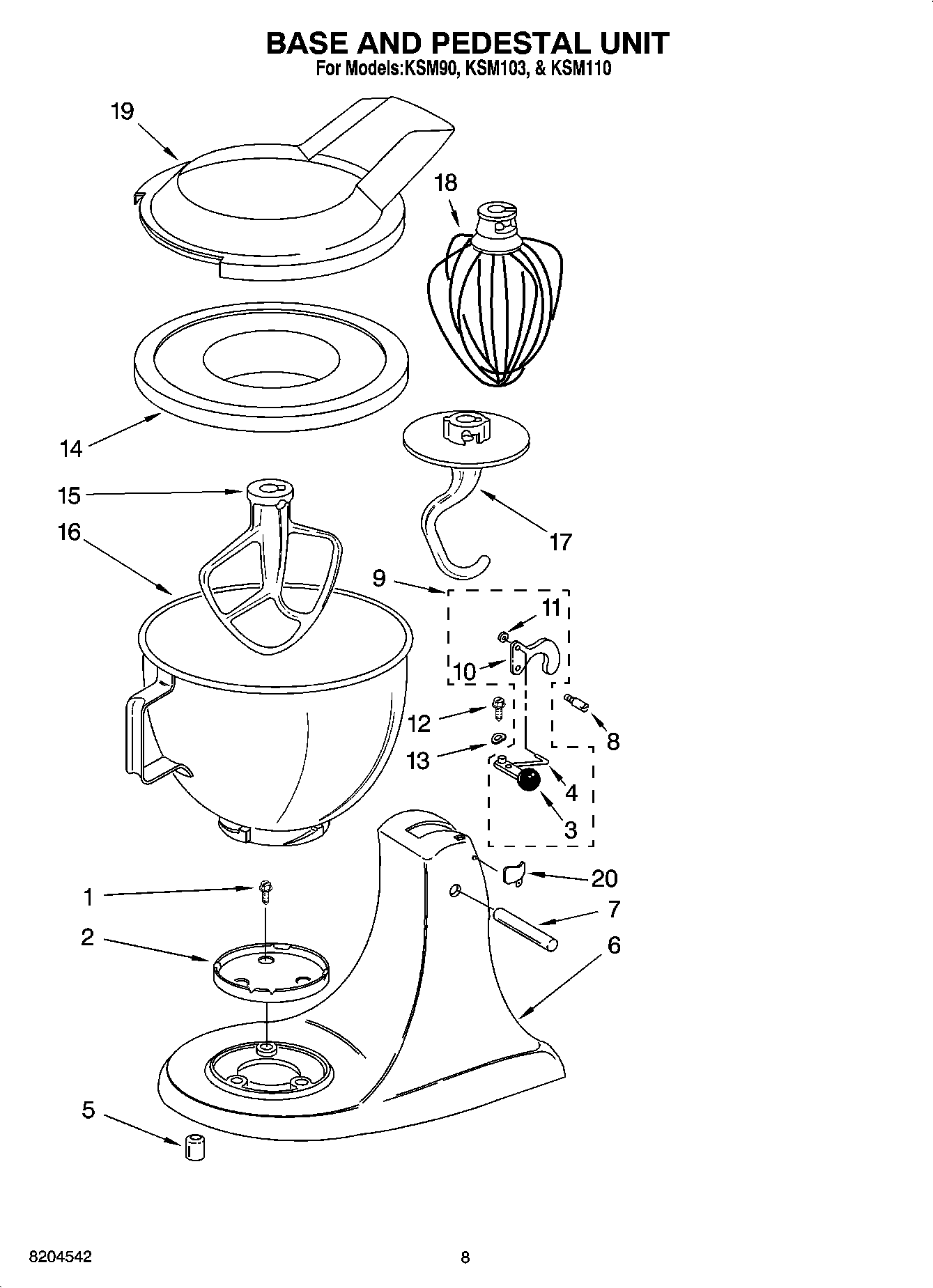

KSM111 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
	Use and Care Guide (US)
	Use and Care Guide (Japan)
	Literature Parts (Repair Parts List)
	WPL LIT9705170
1	SCREW
2	WPW10191926 Whirlpool Cap Screw
3	WP9709280 Whirlpool Latch Lever
3	WP9709267 Whirlpool Latch Lever
3	Lever, Latch (Storm Gray)
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	Pedestal
7	WP16910 Whirlpool Dowel Pin
8	103993 Whirlpool Screw
9	Latch, Link & Lever (Storm Grey)
9	WP3184200 Whirlpool Latch Lever
10	W11246352 Whirlpool Latch Mechanism
11	Washer
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	Cover, Bowl
15	WPW10672617 Whirlpool Stand Mixer Flat Beater
16	W10802058 Whirlpool Mixer Bowl
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	W11312468 Whirlpool Pour Shelf
20	WP3184264 Whirlpool Headlock Assembly
