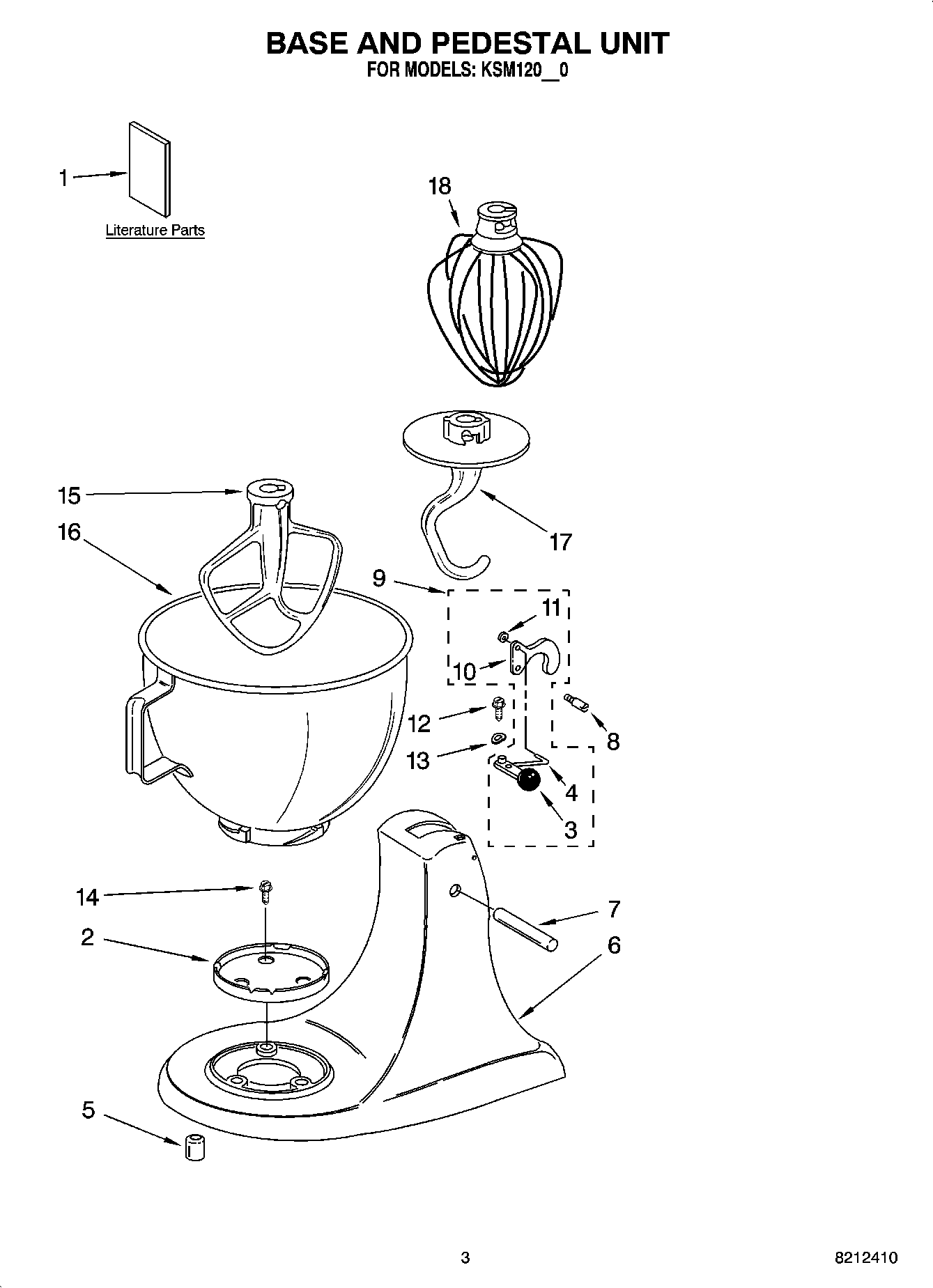

KSM120OB0 02 – BASE AND PEDESTAL UNITadmin2025-04-26T12:34:48+00:00KSM120OB0 02 – BASE AND PEDESTAL UNIT ProductsPositionProduct1Repair Parts List1Use & Care, Trilin2WPW10191926 Whirlpool Cap Screw3WP9709280 Whirlpool Latch Lever4W11232016 Whirlpool Latch Link5Foot, Base6Pedestal7WP16910 Whirlpool Dowel Pin8103993 Whirlpool Screw9WP24452 Whirlpool Latch Lever10W11246352 Whirlpool Latch Mechanism11W11218705 Whirlpool Washer Assembly12WP110679 Whirlpool Screw13WP116241 Whirlpool Washer14SCREW15WPW10672617 Whirlpool Stand Mixer Flat Beater16ACCESSORY PARTS, BOWL, 4.5 QT. WITH HANDLE17WPW10674618 Whirlpool Dough Hook18WP9704329 Whirlpool Wire Whip
