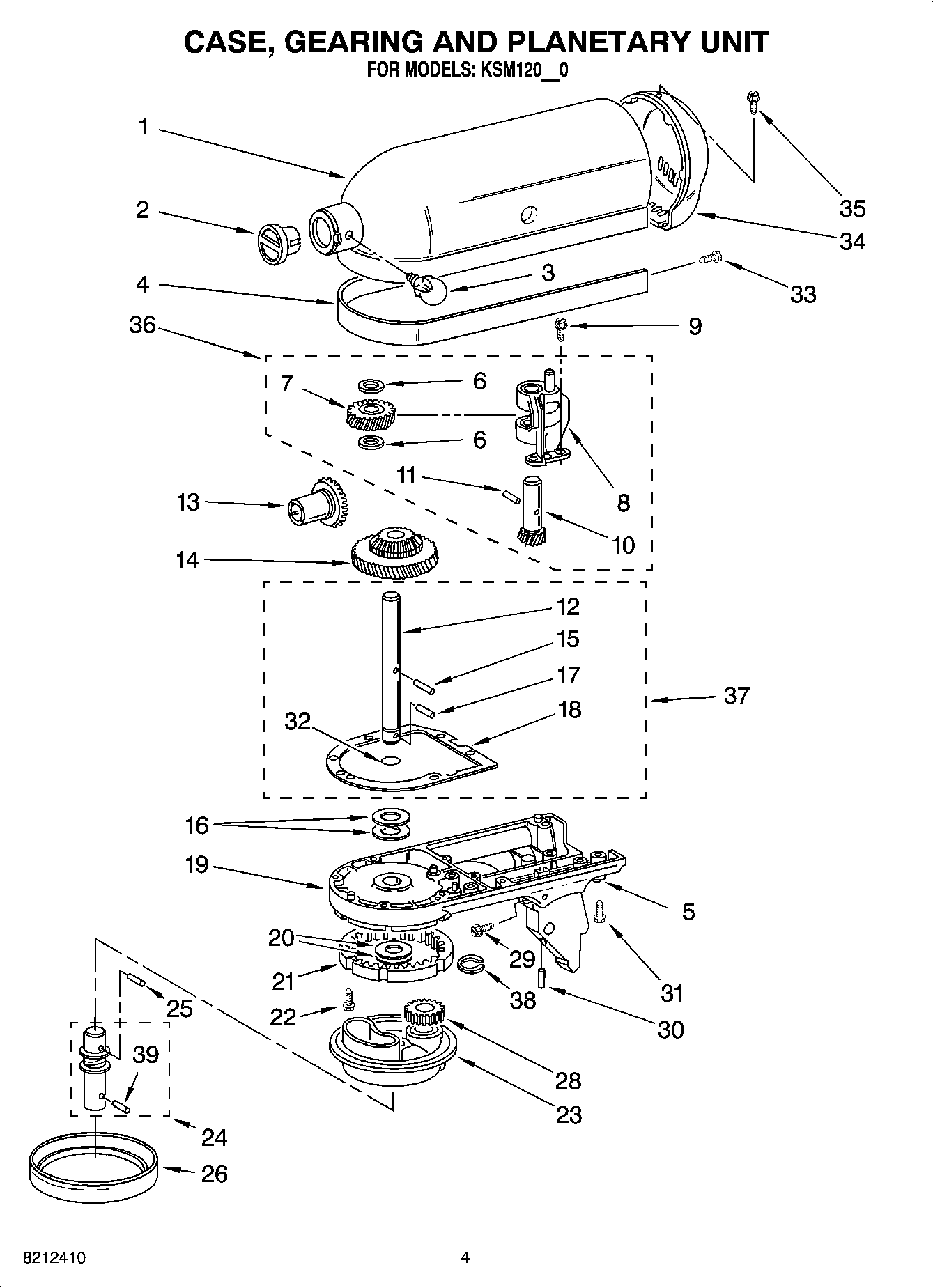

KSM120WH0 03 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
1	Gearcase Motor Housing
2	Cap, Attachment Hub
3	WP9709194 Whirlpool Black Thumb Screw
4	Band, Trim
5	WP8533914 Whirlpool Lock
6	WPW10323373 Whirlpool Washer
7	WPW10112253 Whirlpool Gear Assembly
8	W11082541 Whirlpool Bearing
9	W11097298 Whirlpool Dishwasher Screw
10	Shaft & Pinion
11	WP9705444 Whirlpool Pin Groove
12	WP240026 Whirlpool Control Shaft
13	W11192794 Whirlpool HUB Gear
17	WP9705443 Whirlpool Pin Groove
18	WP4162324 Whirlpool Case Gasket
19	Lower Gear Case
20	WPW10323378 Whirlpool Washer
21	W11340106 Whirlpool Gear Assembly
22	Screw, Special (5)
23	Planetary
24	WP243368 Whirlpool Agitator Shaft
25	Pin (Vertical Center Shaft)
26	WP240285 Whirlpool Drip Ring
28	W11133645 Whirlpool Pinion Gear
29	W11028216 Whirlpool Screw
30	WP3400203 Whirlpool Screw
31	WP3400025 Whirlpool Screw
32	O RING
33	WP313808 Whirlpool Screw
34	Cover, End
35	WP9706090 Whirlpool Washer
36	GEAR, WORM AND BRACKET
37	4160474 Whirlpool Control Shaft
38	WP9703438 Whirlpool Snap Retaining Ring
39	W11664709 Whirlpool Groove Pin
