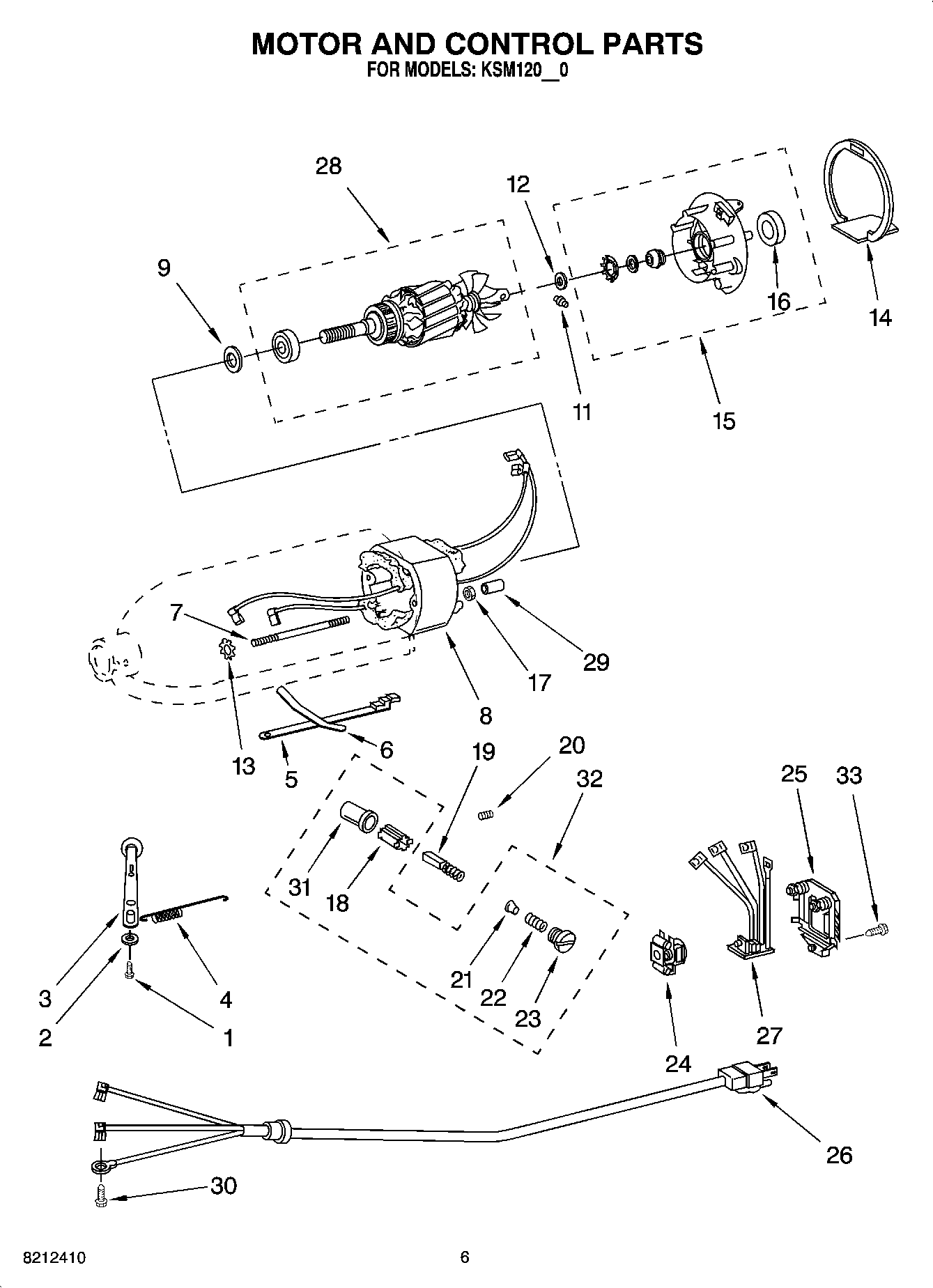

KSM120WH0 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

KSM120WH0 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

Written by

in

KSM120WH0 04 – MOTOR AND CONTROL PARTS, OPTIONAL PARTS

Products

PositionProduct
SAUSAGE STUFFER KIT (SSA)
Bowl Cover, Plastic Non-Sealing
Food Tray (FT)
Ice Cream Maker (KICA0WH0)
CAN OPENER (CO)
Grain Mill, KGMA
JUICER (JE)
FOOD GRINDER (FG-A)
Speed Disc (Service Tool)
W10802058 Whirlpool Mixer Bowl
W11312468 Whirlpool Pour Shelf
Bowl,
W11200218 Whirlpool Grease Filter
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
WPL 3180617
PASTA MAKER PLATES (SNPA)
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8W10870869 Whirlpool Field Assembly
9WP9704324 Whirlpool Washer
11WP16998 Whirlpool Drive Stud
12W11233557 Whirlpool Washer
13W11170663 Whirlpool Washer
14SEAL, END
15WP3180526 Whirlpool Bearing Bracket
16WASHER
178533905 Whirlpool Nut
18W11656718 Whirlpool Insert
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
21WP116286 Whirlpool Spring Cap
22WP116287 Whirlpool Spring Cap
23WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24WPW10330804 Whirlpool Speed Governor
25Control Plate Assembly
26W11396625 Whirlpool Power Cord
26W11545825 Whirlpool Power Cord
27WPW10325124 Whirlpool Phase Board
28W11133634 Whirlpool Armature
29W11210996 Whirlpool Sleeve
30Screw
31WP3179908 Whirlpool Brush Holder
324162546 Whirlpool Brush Holder
33W11084238 Whirlpool Screw Assembly
