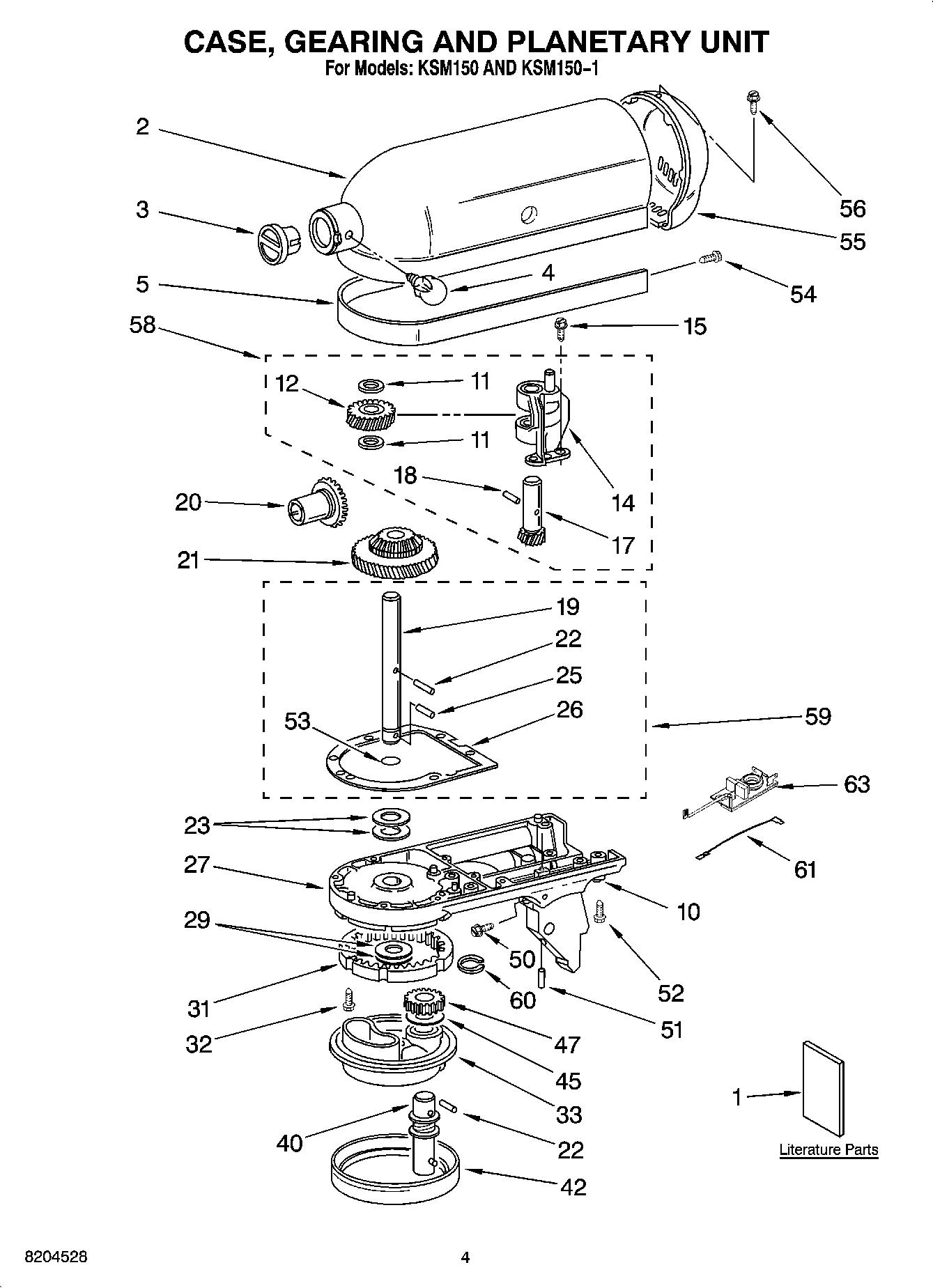

KSM150 02 – CASE, GEARING, AND PLANETARY UNITadmin2025-04-26T12:37:00+00:00KSM150 02 – CASE, GEARING, AND PLANETARY UNIT
Products
| Position | Product |
|---|
| 1 | Use and Care Guide (International) |
| 1 | Use and Care Guide (US) |
| 1 | Literature Parts (Repair Parts List) |
| 2 | Gearcase Motor Housing |
| 3 | CAP, ATTACHMENT HUB (ALMOND) |
| 3 | Cap, Attachment Hub |
| 3 | CAP, ATTACHMNT HUB (PAINTED) |
| 4 | Thumb Screw (Buff) |
| 4 | WP9709194 Whirlpool Black Thumb Screw |
| 4 | Thumb Screw (White (Storm Gray)) |
| 5 | Band, Trim |
| 10 | WP8533914 Whirlpool Lock |
| 11 | WPW10323373 Whirlpool Washer |
| 12 | WPW10112253 Whirlpool Gear Assembly |
| 14 | Worm Gear, Bracket and Bearing |
| 15 | W11097298 Whirlpool Dishwasher Screw |
| 17 | Shaft & Pinion |
| 18 | WP9705444 Whirlpool Pin Groove |
| 19 | WP240026 Whirlpool Control Shaft |
| 20 | Gear, Attachment Hub Bevel (23T) |
| 21 | W11192794 Whirlpool HUB Gear |
| 22 | Pin (Vertical Center Shaft) |
| 25 | WP9705443 Whirlpool Pin Groove |
| 26 | WP4162324 Whirlpool Case Gasket |
| 27 | Lower Gear Case |
| 29 | WPW10323378 Whirlpool Washer |
| 31 | W11340106 Whirlpool Gear Assembly |
| 32 | Screw, Special (5) |
| 33 | Planetary |
| 40 | WP243368 Whirlpool Agitator Shaft |
| 42 | WP240285 Whirlpool Drip Ring |
| 45 | Washer, Shim (.015`` Thk.) (.031`` Thk.) |
| 47 | W11133645 Whirlpool Pinion Gear |
| 50 | W11028216 Whirlpool Screw |
| 51 | WP3400203 Whirlpool Screw |
| 52 | WP3400025 Whirlpool Screw |
| 53 | O RING |
| 54 | WP313808 Whirlpool Screw |
| 55 | Cover, |
| 56 | WP241877 Whirlpool Screw |
| 58 | GEAR, WORM AND BRACKET |
| 59 | 4160474 Whirlpool Control Shaft |
| 60 | WP9703438 Whirlpool Snap Retaining Ring |
| 61 | WPL 9702311 |
| 63 | 4176340 Whirlpool Refrigerator Mixer Filter |
