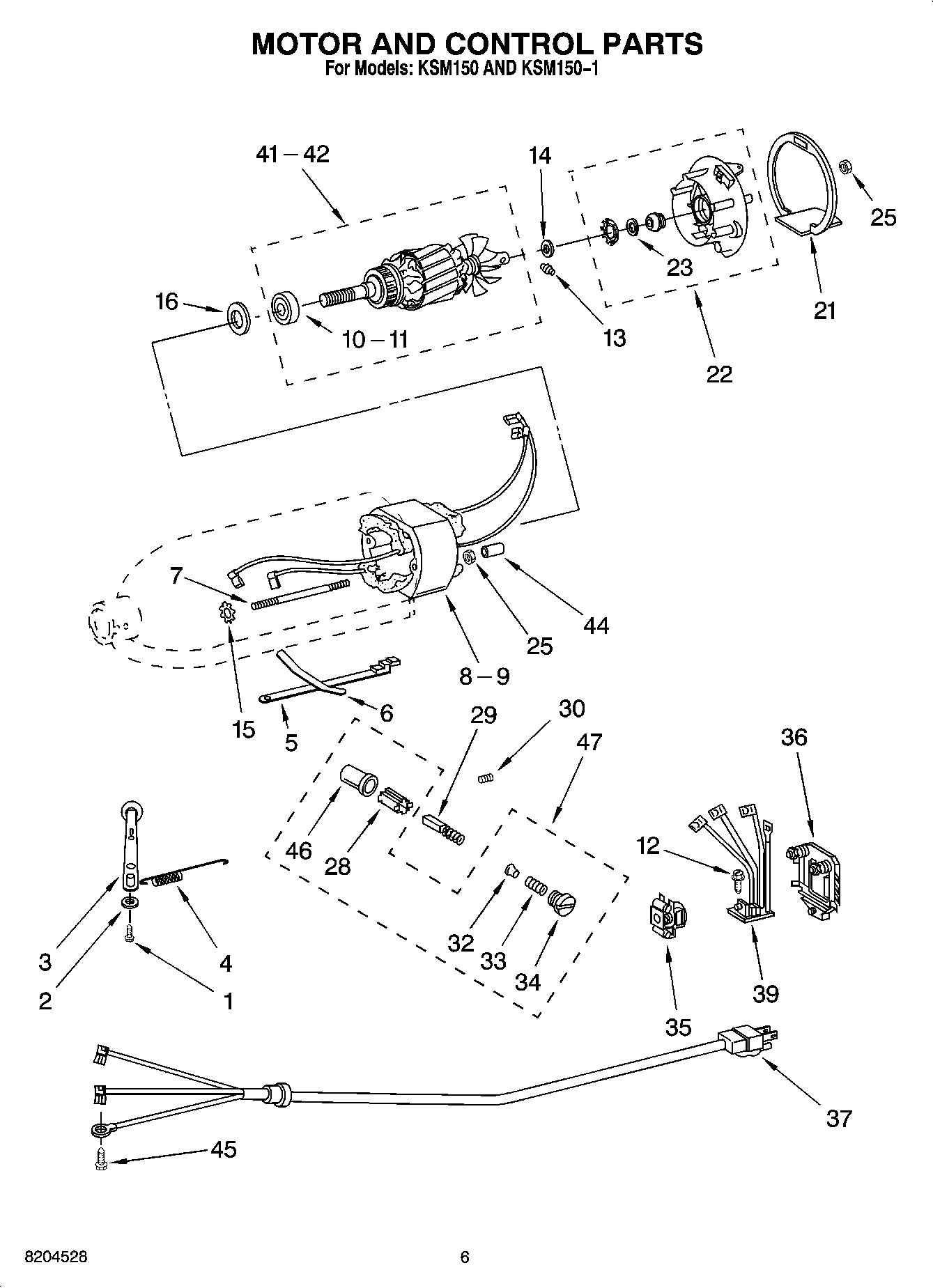

KSM150 03 – MOTOR AND CONTROL PARTS

KSM150 03 – MOTOR AND CONTROL PARTS

Written by

in

KSM150 03 – MOTOR AND CONTROL PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709277 Whirlpool Speed Lever
3WP9709276 Whirlpool Speed Control Lever
39709278 Whirlpool Speed Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8W10870869 Whirlpool Field Assembly
9WPW10417246 Whirlpool Field Assembly
10W11133634 Whirlpool Armature
11Ball Bearing
12W11084238 Whirlpool Screw Assembly
13WP16998 Whirlpool Drive Stud
14W11233557 Whirlpool Washer
15W11170663 Whirlpool Washer
16WP9704324 Whirlpool Washer
21SEAL, END
21WP240775-1 Whirlpool Endcap Seal
22WP3180526 Whirlpool Bearing Bracket
23WASHER
258533905 Whirlpool Nut
28W11656718 Whirlpool Insert
29WPW10380496 Whirlpool Stand Mixer Motor Brush
30W11176201 Whirlpool Screw
32WP116286 Whirlpool Spring Cap
33WP116287 Whirlpool Spring Cap
34WP3184211 Whirlpool Brush Cap
34WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
343184213 Whirlpool Brush Cap
35WPW10330804 Whirlpool Speed Governor
36Control Plate Assembly
37W10908276 Whirlpool Power Cord
37Cord And Plug (Swiss)
37Cord And Plug-Black (Swiss)
37W11112762 Whirlpool Power Cord
37W11545825 Whirlpool Power Cord
37W11396625 Whirlpool Power Cord
37W10706734 Whirlpool Power Cord
39W11174552 Whirlpool Stand Mixer Phase Board
39WPW10325124 Whirlpool Phase Board
42ARMATURE/BEARING
44W11210996 Whirlpool Sleeve
45Screw
46WP3179908 Whirlpool Brush Holder
474162546 Whirlpool Brush Holder
