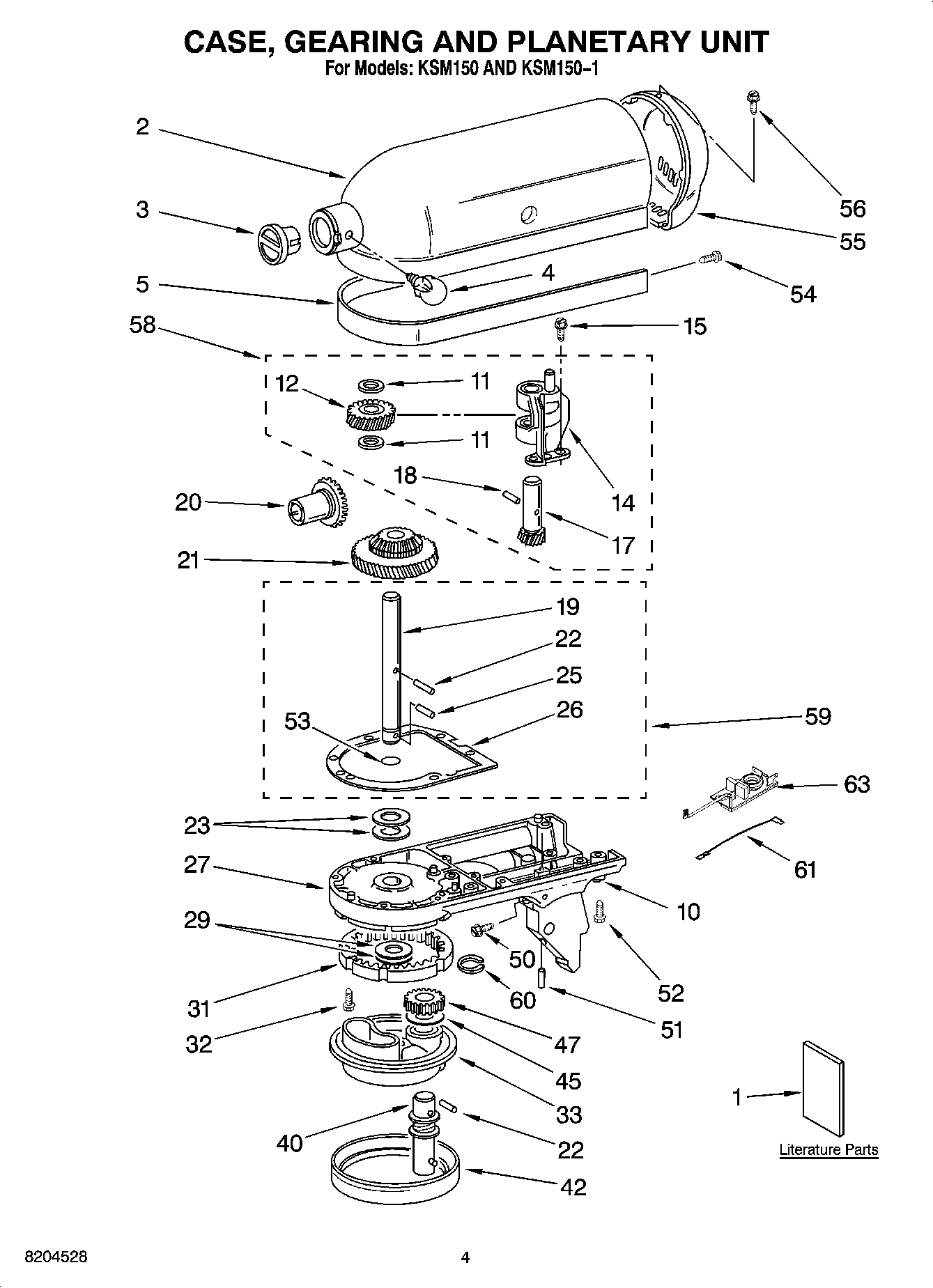

KSM150-1 02 – CASE, GEARING, AND PLANETARY UNIT

KSM150-1 02 – CASE, GEARING, AND PLANETARY UNIT

Written by

in

KSM150-1 02 – CASE, GEARING, AND PLANETARY UNIT

Products

PositionProduct
1Use and Care Guide (International)
1Use and Care Guide (US)
1Literature Parts (Repair Parts List)
2Gearcase Motor Housing
3CAP, ATTACHMENT HUB (ALMOND)
3Cap, Attachment Hub
3CAP, ATTACHMNT HUB (PAINTED)
4Thumb Screw (White (Storm Gray))
4WP9709194 Whirlpool Black Thumb Screw
4Thumb Screw (Buff)
5Band, Trim
10WP8533914 Whirlpool Lock
11WPW10323373 Whirlpool Washer
12WPW10112253 Whirlpool Gear Assembly
14Worm Gear, Bracket and Bearing
15W11097298 Whirlpool Dishwasher Screw
17Shaft & Pinion
18WP9705444 Whirlpool Pin Groove
19WP240026 Whirlpool Control Shaft
20Gear, Attachment Hub Bevel (23T)
21W11192794 Whirlpool HUB Gear
22Pin (Vertical Center Shaft)
25WP9705443 Whirlpool Pin Groove
26WP4162324 Whirlpool Case Gasket
27Lower Gear Case
29WPW10323378 Whirlpool Washer
31W11340106 Whirlpool Gear Assembly
32Screw, Special (5)
33Planetary
40WP243368 Whirlpool Agitator Shaft
42WP240285 Whirlpool Drip Ring
45Washer, Shim (.015“ Thk.) (.031“ Thk.)
47W11133645 Whirlpool Pinion Gear
50W11028216 Whirlpool Screw
51WP3400203 Whirlpool Screw
52WP3400025 Whirlpool Screw
53O RING
54WP313808 Whirlpool Screw
55Cover,
56WP241877 Whirlpool Screw
58GEAR, WORM AND BRACKET
594160474 Whirlpool Control Shaft
60WP9703438 Whirlpool Snap Retaining Ring
61WPL 9702311
634176340 Whirlpool Refrigerator Mixer Filter
