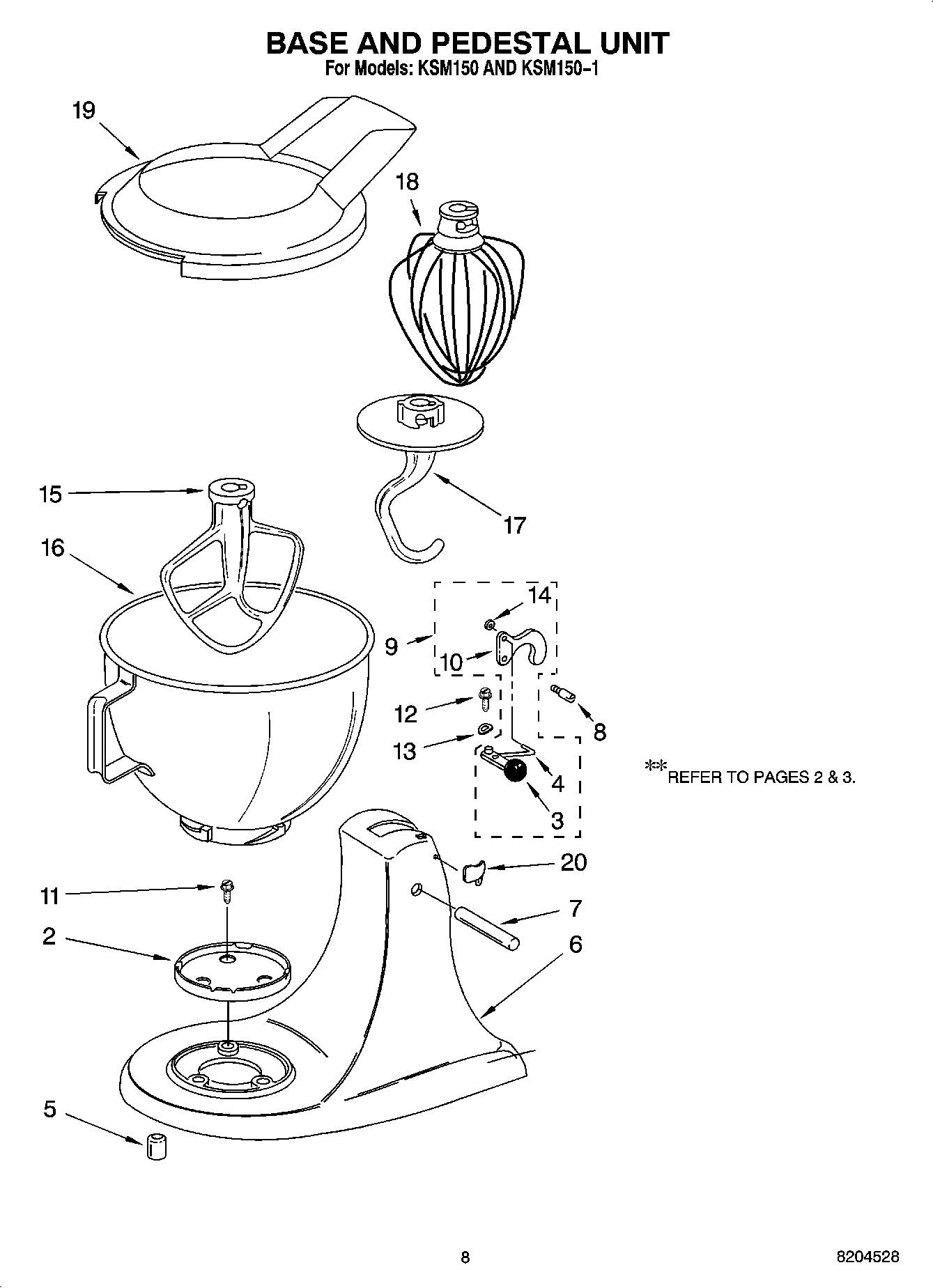

KSM150-1 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
	WPL 4176770
	Food Tray (FT)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	W10802058 Whirlpool Mixer Bowl
	Speed Disc (Service Tool)
	Bowl Cover, Plastic Non-Sealing
	Bowl,
	WPL 3180617
	W11200218 Whirlpool Grease Filter
	PASTA MAKER PLATES (SNPA)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	SAUSAGE STUFFER KIT (SSA)
	Grain Mill (GM-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
2	WPW10191926 Whirlpool Cap Screw
3	Lever, Latch (Storm Gray)
3	LEVER, LATCH (BUFF)
3	WP9709280 Whirlpool Latch Lever
3	WP9709267 Whirlpool Latch Lever
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	Pedestal
7	WP16910 Whirlpool Dowel Pin
8	103993 Whirlpool Screw
9	WP3184200 Whirlpool Latch Lever
9	WP24452 Whirlpool Latch Lever
10	Latch
11	SCREW
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	Beater, Flat (Coated, White)
16	W11324096 Whirlpool Mixer Bowl
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	W11312468 Whirlpool Pour Shelf
20	WP3184264 Whirlpool Headlock Assembly
