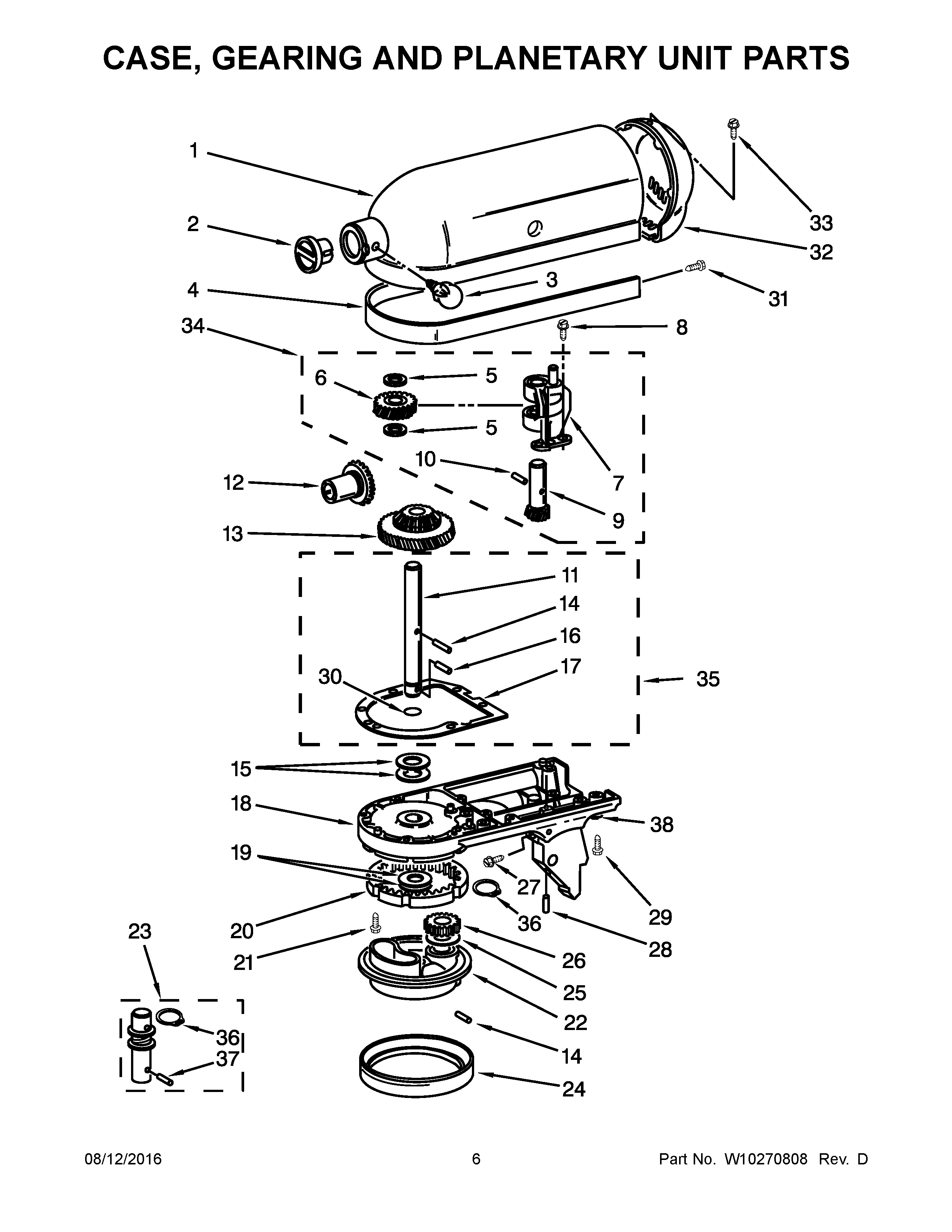

KSM150APSBS0 04 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	CAP, ATTACHMENT HUB (SATIN)
3	WP9709194 Whirlpool Black Thumb Screw
5	WPW10323373 Whirlpool Washer
6	WPW10112253 Whirlpool Gear Assembly
7	W11082541 Whirlpool Bearing
8	W11097298 Whirlpool Dishwasher Screw
9	Shaft & Pinion
10	WP9705444 Whirlpool Pin Groove
11	WP240026 Whirlpool Control Shaft
12	W11192794 Whirlpool HUB Gear
14	Pin (Vertical Center Shaft)
15	WPW10323378 Whirlpool Washer
16	WP9705443 Whirlpool Pin Groove
17	WP4162324 Whirlpool Case Gasket
19	W10854966 Whirlpool Washer
20	W11340106 Whirlpool Gear Assembly
21	W11170598 Whirlpool Screw
23	WP243368 Whirlpool Agitator Shaft
24	WP240285 Whirlpool Drip Ring
25	WP9706090 Whirlpool Washer
26	W11133645 Whirlpool Pinion Gear
27	W11028216 Whirlpool Screw
28	WP3400203 Whirlpool Screw
29	W11173547 Whirlpool Screw
30	O RING
31	WP313808 Whirlpool Screw
32	CABINET (NOT A SERVICEABLE PART)
33	WP241877 Whirlpool Screw
34	GEAR, WORM AND BRACKET
35	4160474 Whirlpool Control Shaft
36	WP9703438 Whirlpool Snap Retaining Ring
37	W11664709 Whirlpool Groove Pin
38	WP8533914 Whirlpool Lock
