KSM150APSGD0 03 – BASE AND PEDESTAL UNIT PARTS
Written by
in

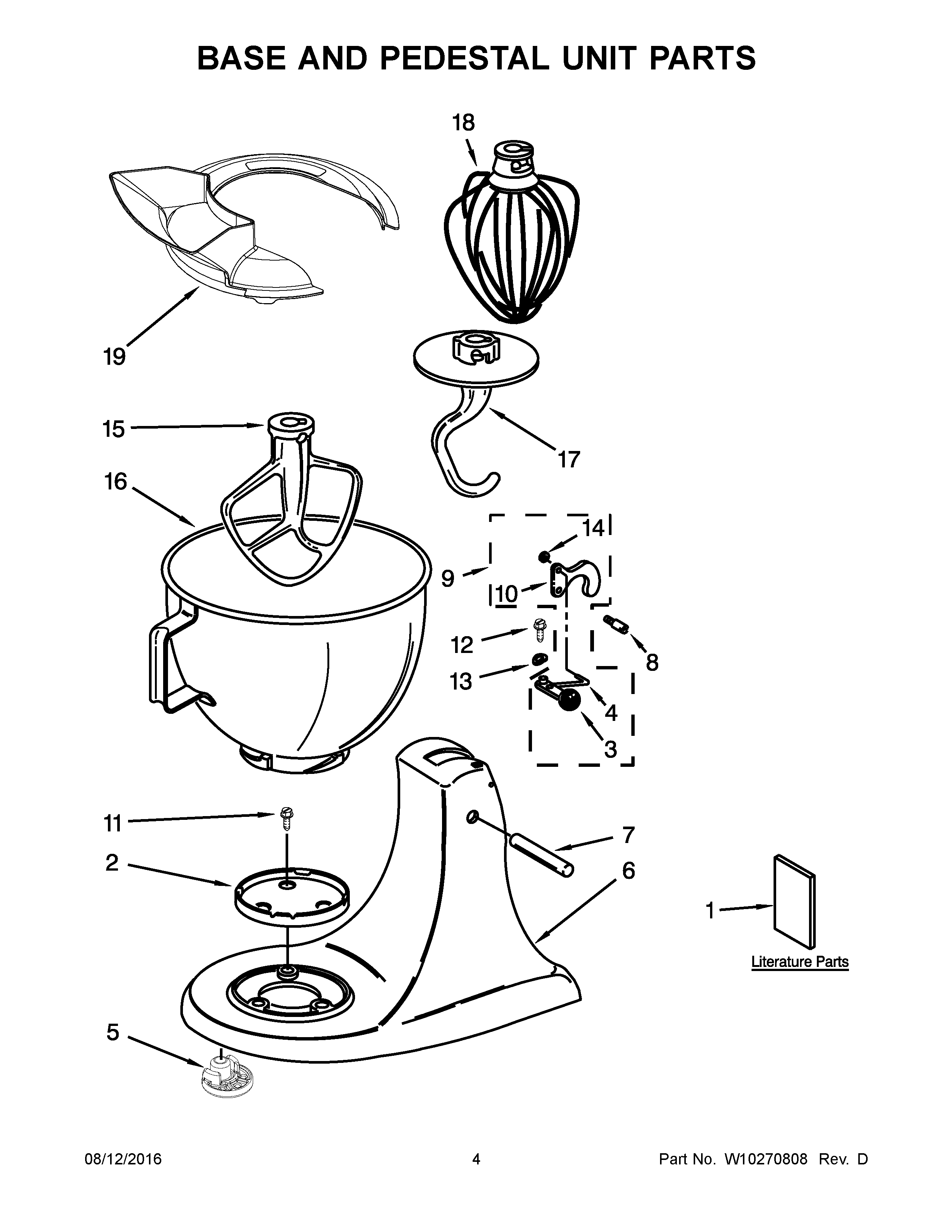

KSM150APSGD0 03 – BASE AND PEDESTAL UNIT PARTS
Products
Position
Product
1
Use & Care, Trilin
2
WPW10191926 Whirlpool Cap Screw
3
WP9709280 Whirlpool Latch Lever
4
W11232016 Whirlpool Latch Link
5
WP9709707 Whirlpool Foot
6
CABINET (NOT A SERVICEABLE PART)
7
WP16910 Whirlpool Dowel Pin
8
W10802060 Whirlpool Screw
9
WP24452 Whirlpool Latch Lever
10
W11246352 Whirlpool Latch Mechanism
11
SCREW
12
WP110679 Whirlpool Screw
13
WP116241 Whirlpool Washer
14
W11218705 Whirlpool Washer Assembly
15
W11672200 Whirlpool Mixer Beater
16
W11324096 Whirlpool Mixer Bowl
17
W11316221 Whirlpool Stand Mixer Dough Hook
18
WP9704329 Whirlpool Wire Whip
19
W11312468 Whirlpool Pour Shelf
←
