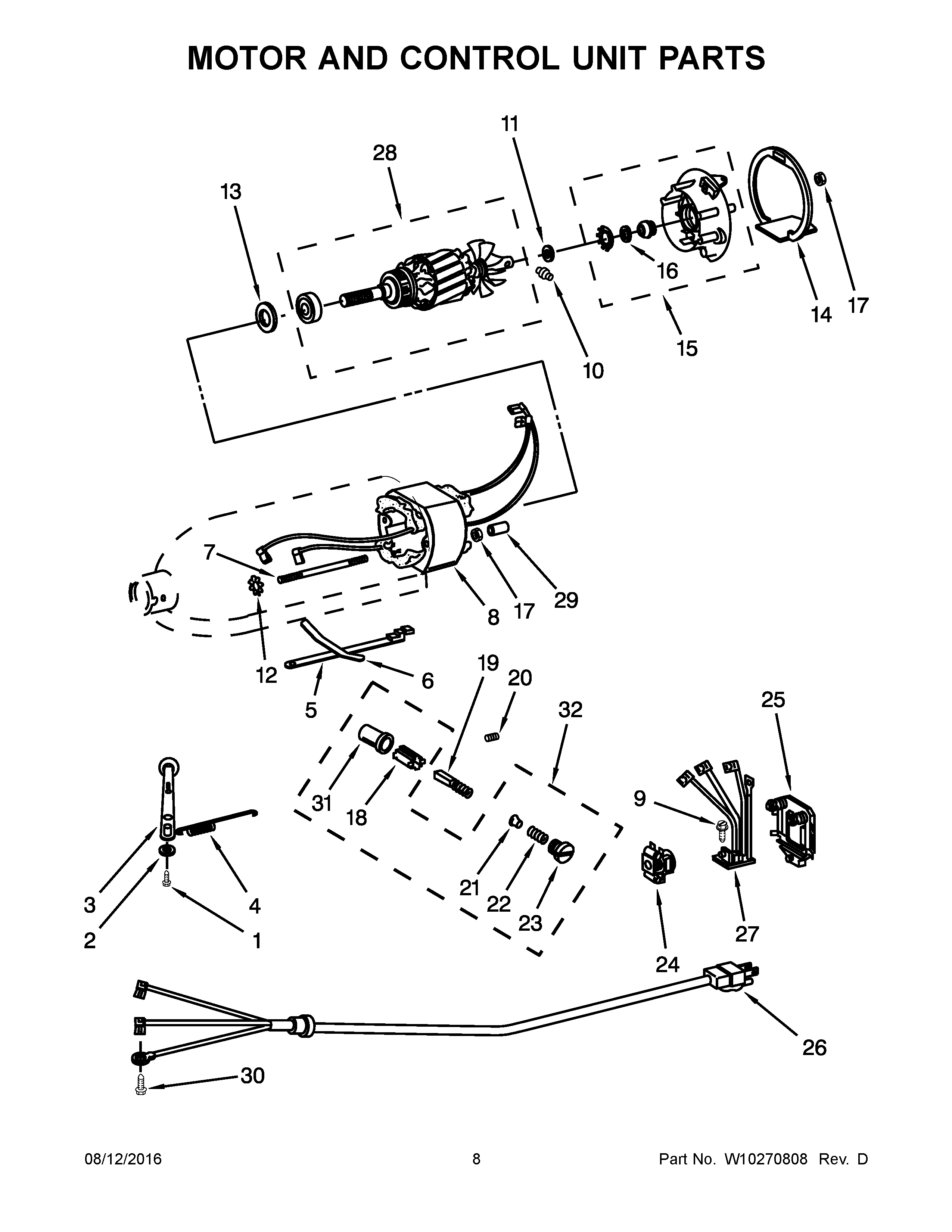

KSM150APSGD0 05 – MOTOR AND CONTROL UNIT PARTS

KSM150APSGD0 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

KSM150APSGD0 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8W10870869 Whirlpool Field Assembly
9W11084238 Whirlpool Screw Assembly
10WP16998 Whirlpool Drive Stud
11W11233557 Whirlpool Washer
12W11170663 Whirlpool Washer
13WP9704324 Whirlpool Washer
14SEAL, END
15WP3180526 Whirlpool Bearing Bracket
16WASHER
17WPW10131078 Whirlpool Nut Assembly
18W11656718 Whirlpool Insert
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
21WP116286 Whirlpool Spring Cap
22WP116287 Whirlpool Spring Cap
23WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24WPW10330804 Whirlpool Speed Governor
25WPW10119326 Whirlpool Speed Control
26W11545825 Whirlpool Power Cord
27WPW10325124 Whirlpool Phase Board
28W11133634 Whirlpool Armature
29W11210996 Whirlpool Sleeve
30Screw
31WP3179908 Whirlpool Brush Holder
324162546 Whirlpool Brush Holder
