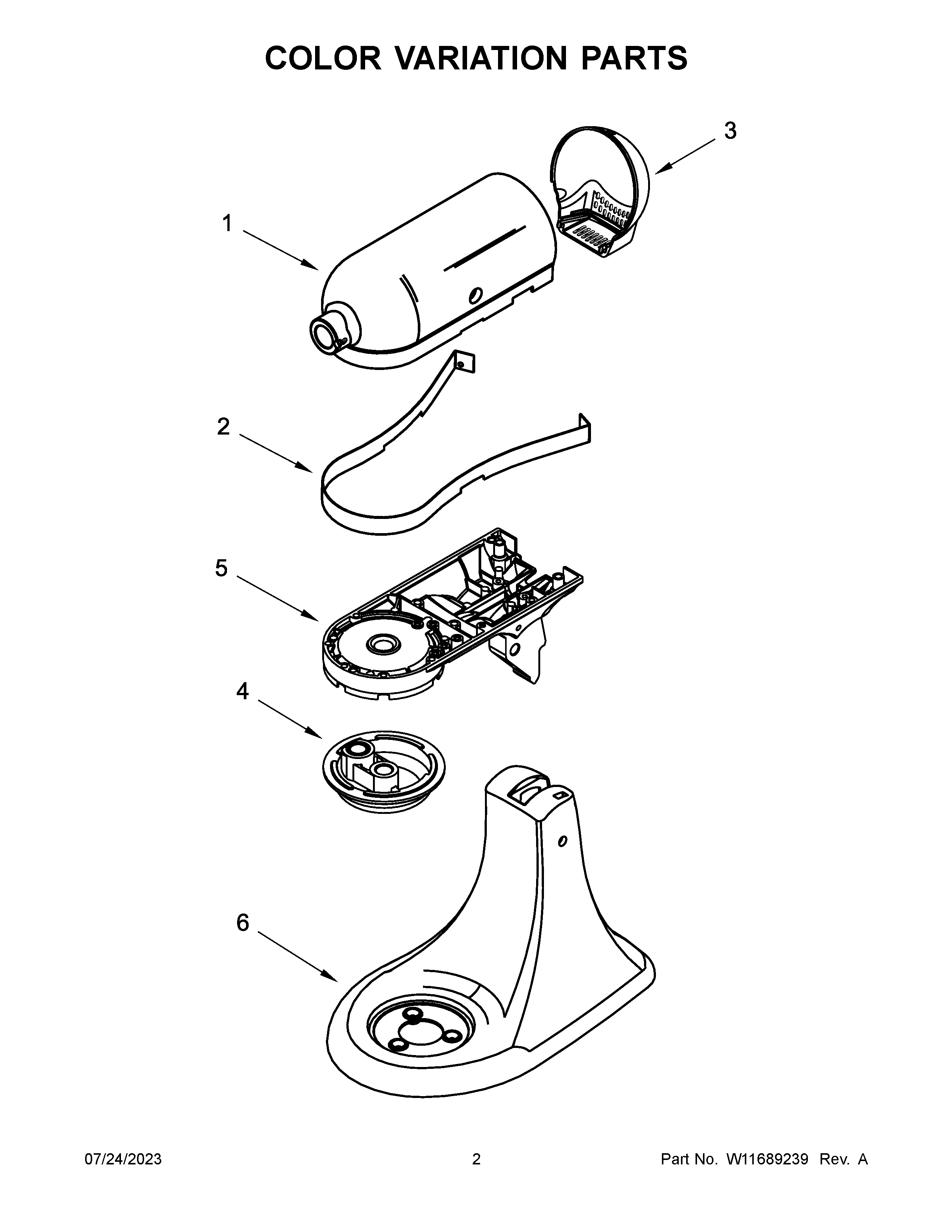

KSM150FBCU5 02 – COLOR VARIATION PARTS

KSM150FBCU5 02 – COLOR VARIATION PARTS

Written by

in

KSM150FBCU5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1AMOTOR HOUSING (CONTOUR SILVER)
1BMOTOR HOUSING (EMPIRE RED)
1MOTOR HOUSING (AQUA SKY)
29706630 Whirlpool Trim Band
3BEND COVER (EMPIRE RED)
3W10193496 Whirlpool Cover
3AW10350456 Whirlpool Cover Assembly
4BPLANETARY (EMPIRE RED)
4AW10350465 Whirlpool Planetary Mixer
4W10193498 Whirlpool Planetary Assembly
5ALOWER GEARCASE (CONTOUR SILVER)
5W10193504 Whirlpool Gearcase
5BLOWER GEARCASE-Empire Red
6BW11131262 Whirlpool Pedestal
6W10193507 Whirlpool Pedestal
6APEDESTAL W/FEET (CONTOUR SILVER)
