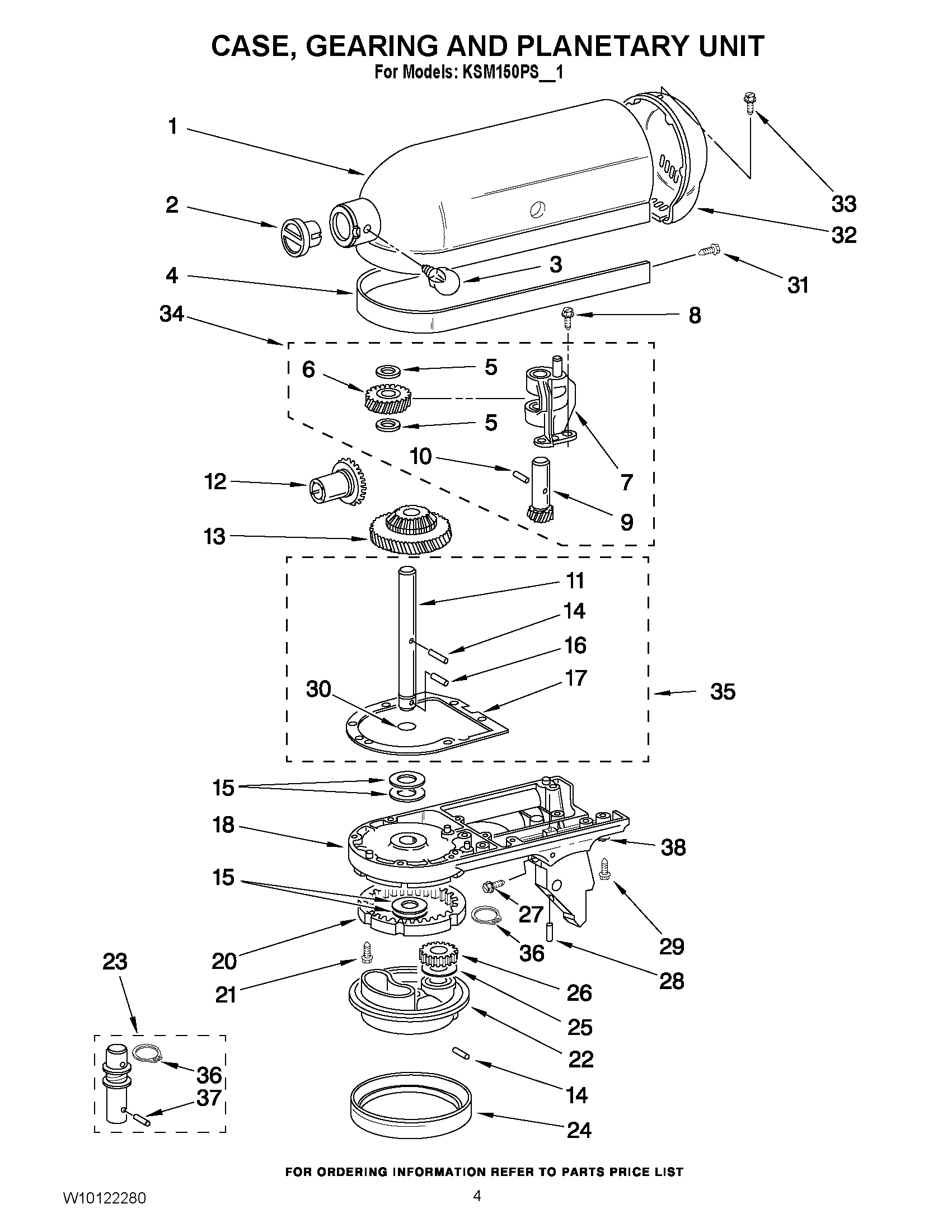

KSM150PSBU1 03 – CASE, GEARING AND PLANETARY UNIT

KSM150PSBU1 03 – CASE, GEARING AND PLANETARY UNIT

Written by

in

KSM150PSBU1 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
2CAP, ATTACHMENT HUB (ALMOND)
2Cap, Attachment Hub
3WP9709194 Whirlpool Black Thumb Screw
5WPW10323373 Whirlpool Washer
6WPW10112253 Whirlpool Gear Assembly
7W11082541 Whirlpool Bearing
8W11097298 Whirlpool Dishwasher Screw
9Shaft & Pinion
10WP9705444 Whirlpool Pin Groove
11WP240026 Whirlpool Control Shaft
12W11192794 Whirlpool HUB Gear
14Pin (Vertical Center Shaft)
15WPW10323378 Whirlpool Washer
16WP9705443 Whirlpool Pin Groove
17WP4162324 Whirlpool Case Gasket
20W11340106 Whirlpool Gear Assembly
21Screw, Special (5)
23WP243368 Whirlpool Agitator Shaft
24WP240285 Whirlpool Drip Ring
25WP9706090 Whirlpool Washer
26W11133645 Whirlpool Pinion Gear
27W11028216 Whirlpool Screw
28WP3400203 Whirlpool Screw
29WP3400025 Whirlpool Screw
30O RING
31WP313808 Whirlpool Screw
32CABINET (NOT A SERVICEABLE PART)
33WP241877 Whirlpool Screw
34GEAR, WORM AND BRACKET
354160474 Whirlpool Control Shaft
36WP9703438 Whirlpool Snap Retaining Ring
37W11664709 Whirlpool Groove Pin
38WP8533914 Whirlpool Lock
