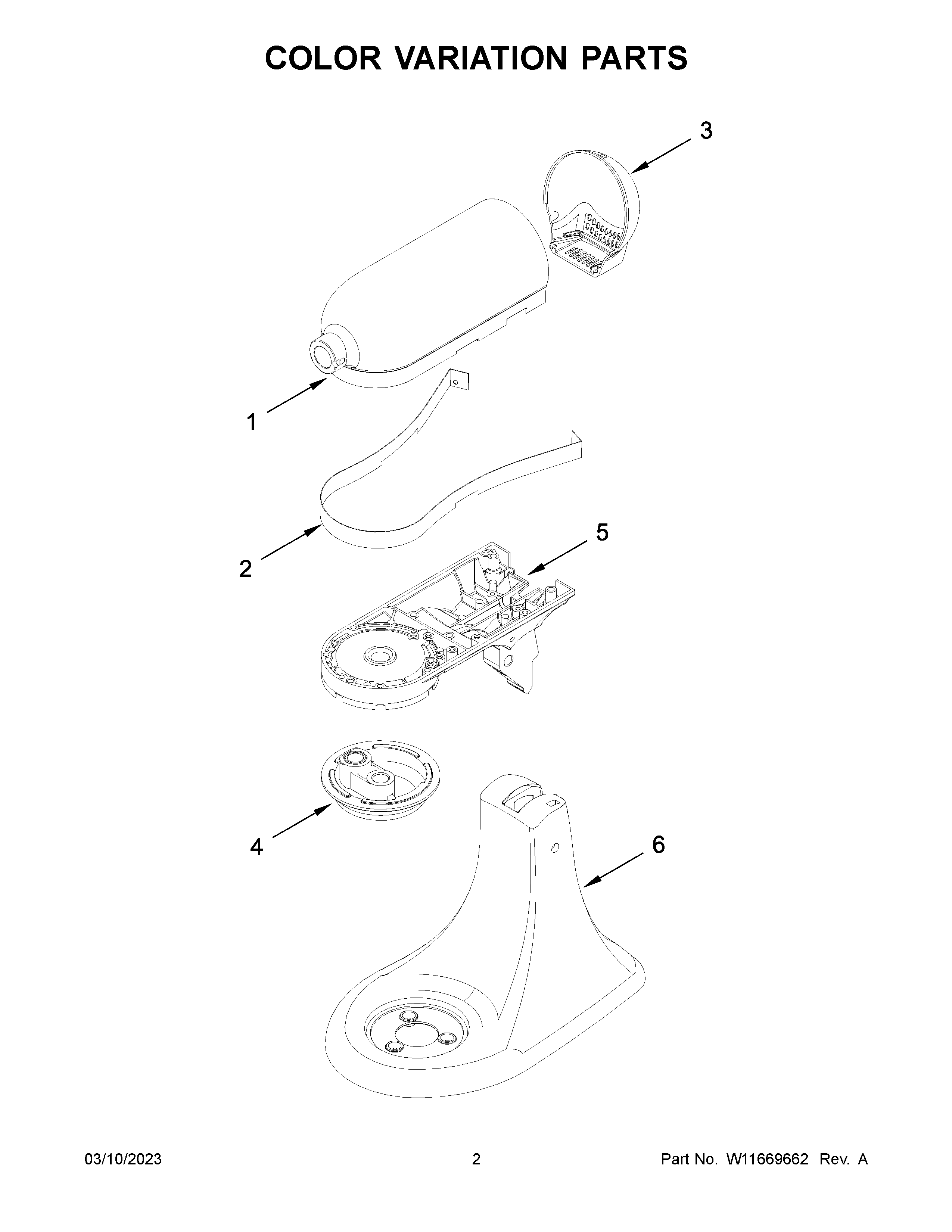

KSM150PSDR5 02 – COLOR VARIATION PARTS

KSM150PSDR5 02 – COLOR VARIATION PARTS

Written by

in

KSM150PSDR5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1FMOTOR HOUSING (MATTE DRIED ROSE)
1OMOTOR HOUSING (MATCHA)
1HMOTOR HOUSING (FEATHER PINK)
1AMOTOR HOUSING (AQUA SKY)
1CMOTOR HOUSING (BLACK MATTE)
1WMOTOR HOUSING (PASSION/SIGNATURE RED)
1DMOTOR HOUSING (BLUE STEEL)
1EMOTOR HOUSING (CONTOUR SILVER)
1PMOTOR HOUSING (METALLIC CHROME)
1QMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1AMOTOR HOUSING (SCORCHED ORANGE)
1KMOTOR HOUSING (INK BLUE)
1NMOTOR HOUSING (LAVENDER CREAM)
1LMOTOR HOUSING (ICE)
1GMOTOR HOUSING (EMPIRE RED)
1W11605627 Whirlpool Housing
1IMOTOR HOUSING (MATTE WHITE)
1UMOTOR HOUSING (MAJESTIC YELLOW)
1TMOTOR HOUSING (MEDALLION SILVER)
1YMOTOR HOUSING (PISTACHIO)
1RMOTOR HOUSING (MINERAL WATER BLUE)
1AMOTOR HOUSING (WHITE)
1ZMOTOR HOUSING (LIQUID GRAPHITE)
1MMOTOR HOUSING (KYOTO GLOW)
1VMOTOR HOUSING (ONYX BLACK)
1XMOTOR HOUSING (BIRD OF PARADISE)
1SMOTOR HOUSING (MINT JULEP)
1BMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1JW11605712 Whirlpool Housing
1AMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
29706630 Whirlpool Trim Band
3B9704805 Whirlpool Cover Assembly
3JEND COVER (IMPERIAL GRAY)
3AWPL W11444613
3Y9706841 Whirlpool Cover
3OWPL W11431671
3MWPL W11357462
3KWPL W11113833
3TWPW10435298 Whirlpool Cover
3HEND COVER (FEATHER PINK)
3ZW10512234 Whirlpool Cover
3DEND COVER (BLUE STEEL)
3P9704029 Whirlpool Cover Assembly
3EW10350456 Whirlpool Cover Assembly
3UEND COVER (MAJESTIC YELLOW)
3GEND COVER (EMPIRE RED)
3REND COVER (MINERAL WATER BLUE)
3AW10193496 Whirlpool Cover
3IWPL W10885728
3SWPL W11684801
3End Cover (Almond Creme)
3FEND COVER (MATTE DRIED ROSE)
3AE
3NW10678729 Whirlpool Cover Assembly
3L9707667 Whirlpool Cover
3VEND COVER (ONYX BLACK)
3XEND COVER (BIRD OF PARADISE)
3WWPL W11298415
3AEND COVER-White
3QWPL W11113835
3CWPL W10885707
4AWPL W11444682
4IWPL W10885730
4ZWPL W10512355
4OWPL W11431678
4XPLANETARY (BIRD OF PARADISE)
4SWPL W11684986
4MWPL W11357469
4KWPL W11113890
4TWPW10444039 Whirlpool Planetary Mixer
4FWPL W11209496
4P9706670 Whirlpool Planetary
4WWPL W11298422
4AW10193498 Whirlpool Planetary Assembly
4CW11170306 Whirlpool Planetary Assembly
4AWPL W11209470
4GPLANETARY (EMPIRE RED)
4NWPL W10678731
4L9707665 Whirlpool Planetary Mixer
4UPLANETARY (MAJESTIC YELLOW)
4EW10350465 Whirlpool Planetary Mixer
4VPLANETARY-Onyx Black
4Planetary (Almond Creme)
4B9704797 Whirlpool Planetary Mixing
4DPLANETARY (BLUE STEEL)
4JPLANETARY (IMPERIAL GRAY)
4APLANETARY-White
4HPLANETARY (FEATHER PINK)
4RPLANETARY (MINERAL WATER BLUE)
4YPLANETARY (PISTACHIO)
4QW11113886 Whirlpool Planetary Mixer
5ALOWER GEARCASE-White
5LOWER GEARCASE (ALMOND CREME)
5LWPL 970
5IWPL W10885718
5ELOWER GEARCASE (CONTOUR SILVER)
5JWPL 24035086
5BLOWER GEARCASE (IMPERIAL BLACK)
5GLOWER GEARCASE-Empire Red
5CWPL W10885699
5AW11209465 Whirlpool Gearcase
5FWPL W11209493
5KWPL W11113862
5HWPL W11431679
5DW10787890 Whirlpool Gearcase
5AW10193504 Whirlpool Gearcase
5AWPL W11444678
