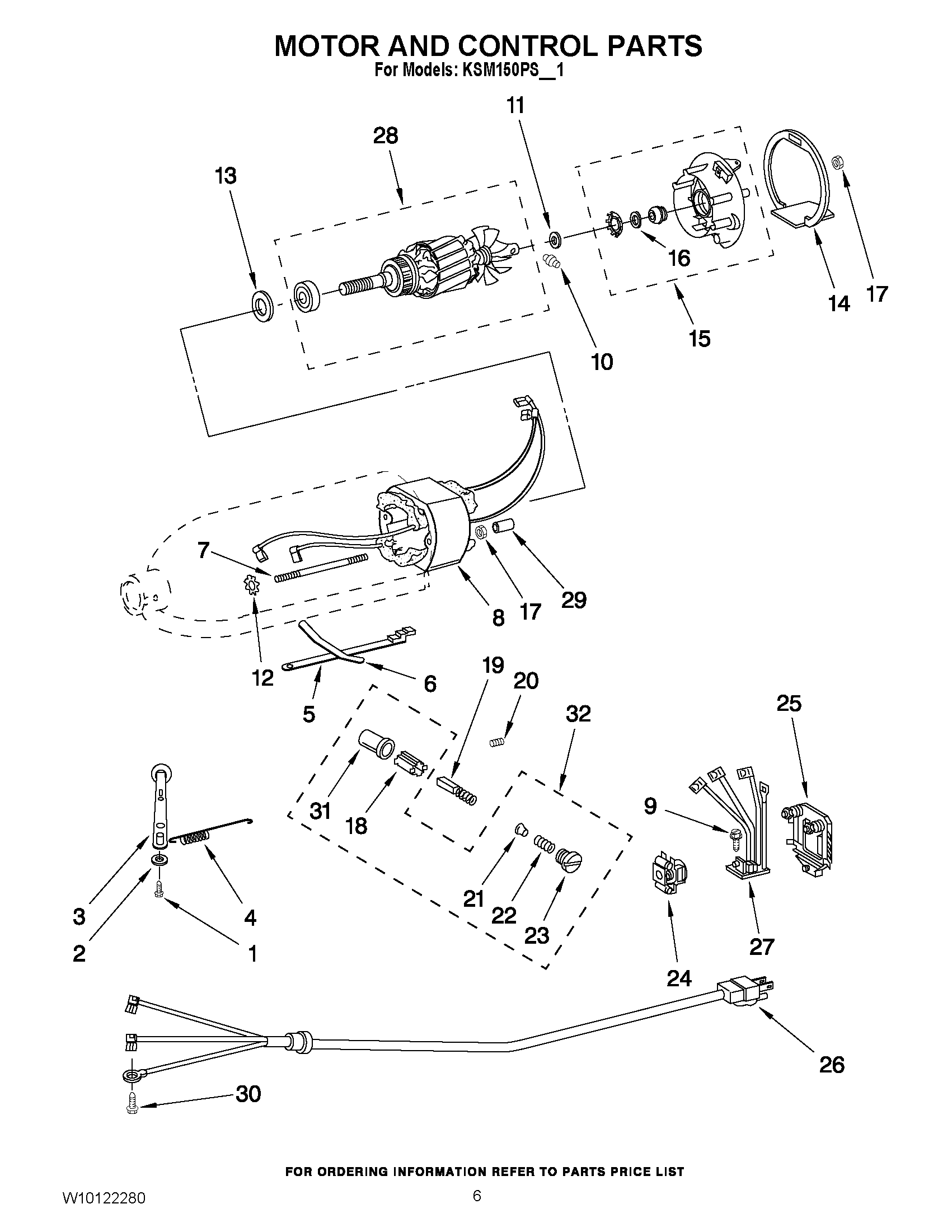

KSM150PSER1 04 – MOTOR AND CONTROL PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	9709278 Whirlpool Speed Lever
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	W10870869 Whirlpool Field Assembly
9	W11084238 Whirlpool Screw Assembly
10	WP16998 Whirlpool Drive Stud
11	W11233557 Whirlpool Washer
12	W11170663 Whirlpool Washer
13	WP9704324 Whirlpool Washer
14	SEAL, END
15	WP3180526 Whirlpool Bearing Bracket
16	WASHER
17	WPW10131078 Whirlpool Nut Assembly
18	W11656718 Whirlpool Insert
19	WPW10380496 Whirlpool Stand Mixer Motor Brush
20	W11176201 Whirlpool Screw
21	WP116286 Whirlpool Spring Cap
22	WP116287 Whirlpool Spring Cap
23	3184213 Whirlpool Brush Cap
23	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
24	WPW10330804 Whirlpool Speed Governor
25	WPW10119326 Whirlpool Speed Control
26	W11545825 Whirlpool Power Cord
26	W11396625 Whirlpool Power Cord
27	WPW10325124 Whirlpool Phase Board
28	W11133634 Whirlpool Armature
29	W11210996 Whirlpool Sleeve
30	Screw
31	WP3179908 Whirlpool Brush Holder
32	4162546 Whirlpool Brush Holder
