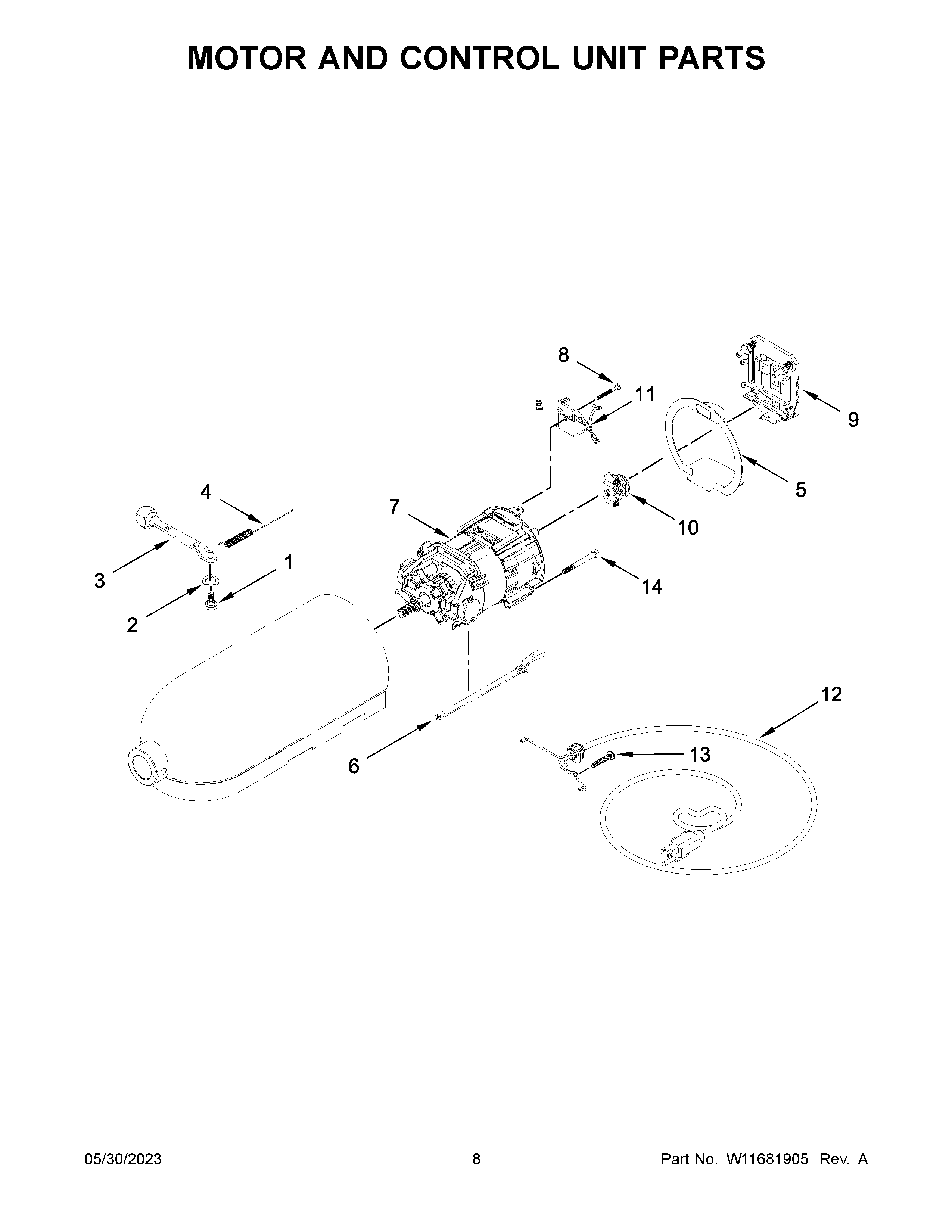

KSM150PSLCA5 05 – MOTOR AND CONTROL UNIT PARTS

KSM150PSLCA5 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

KSM150PSLCA5 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5SEAL, END
6W11557271 Whirlpool Link Speed
7ASSY, MOTOR
8W11084238 Whirlpool Screw Assembly
9WPW10119326 Whirlpool Speed Control
10WPW10330804 Whirlpool Speed Governor
11WPW10325124 Whirlpool Phase Board
12W11545825 Whirlpool Power Cord
13W10914506 Whirlpool Screw
14SCREW, MOTOR MOUNTING
