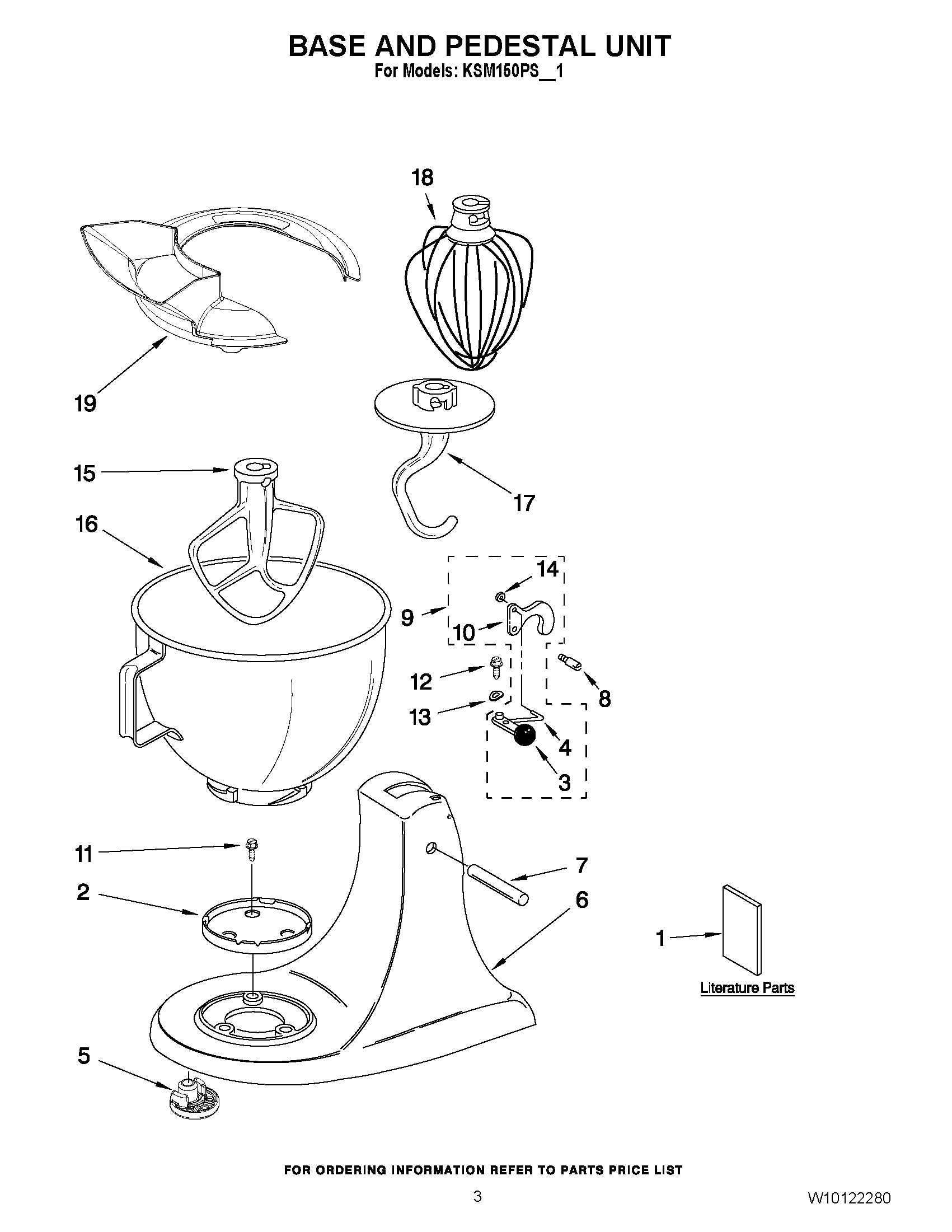

KSM150PSMY1 02 – BASE AND PEDESTAL UNIT

KSM150PSMY1 02 – BASE AND PEDESTAL UNIT

Written by

in

KSM150PSMY1 02 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1Repair Parts List
1Use & Care, Trilin
2WPW10191926 Whirlpool Cap Screw
3WP9709280 Whirlpool Latch Lever
4W11232016 Whirlpool Latch Link
5WP9709707 Whirlpool Foot
6CABINET (NOT A SERVICEABLE PART)
7WP16910 Whirlpool Dowel Pin
8103993 Whirlpool Screw
9WP24452 Whirlpool Latch Lever
10W11246352 Whirlpool Latch Mechanism
11SCREW
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15WPW10672617 Whirlpool Stand Mixer Flat Beater
16W11324096 Whirlpool Mixer Bowl
17WPW10674618 Whirlpool Dough Hook
18WP9704329 Whirlpool Wire Whip
19W11312468 Whirlpool Pour Shelf
