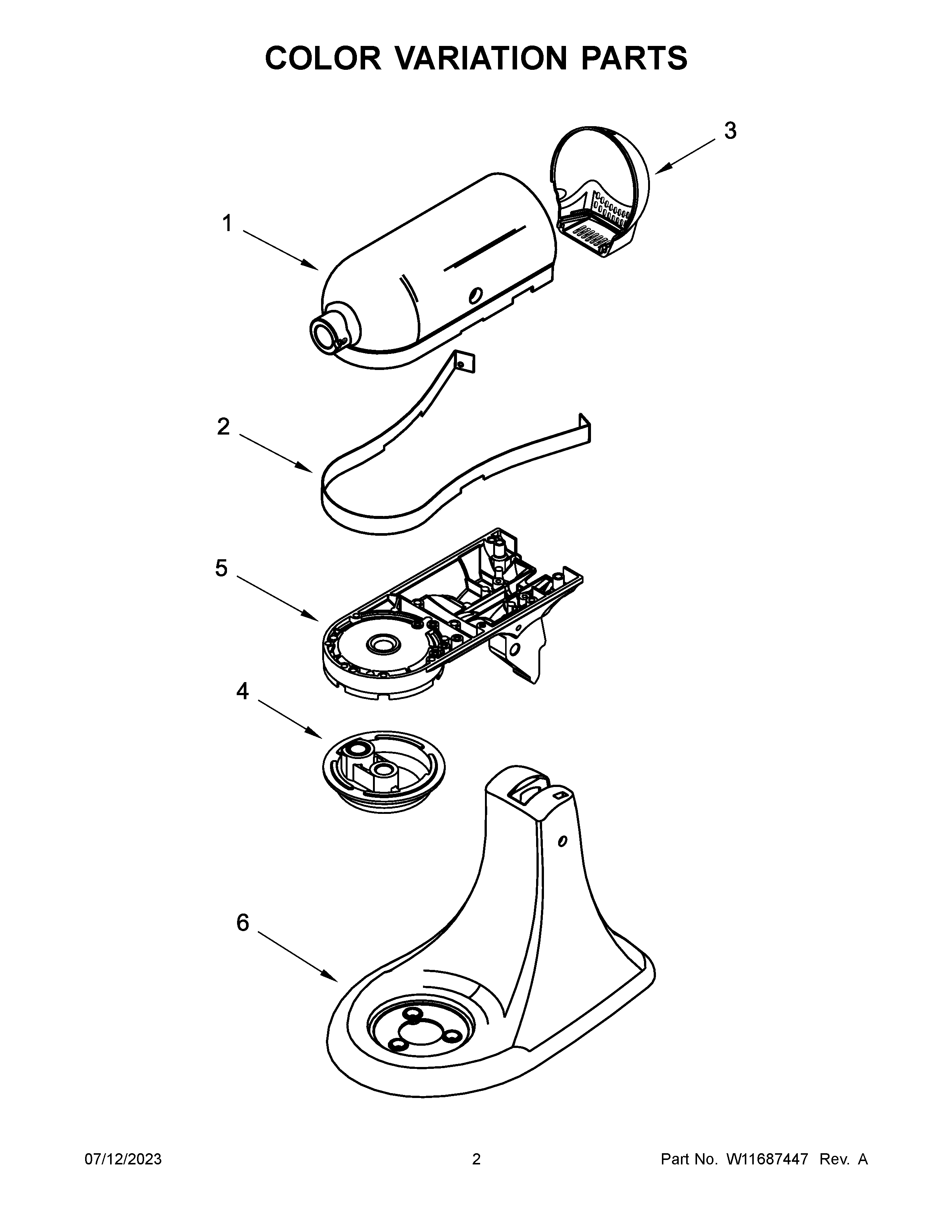

KSM150QXMA5 02 – COLOR VARIATION PARTS

KSM150QXMA5 02 – COLOR VARIATION PARTS

Written by

in

KSM150QXMA5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1CMOTOR HOUSING (CONTOUR SILVER)
1DMOTOR HOUSING (EMPIRE RED)
1FMOTOR HOUSING (ICE)
1HMOTOR HOUSING (MATTE DRIED ROSE)
1AMOTOR HOUSING (BEETROOT)
1KMOTOR HOUSING (PORCELAIN)
1BMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1IMOTOR HOUSING (ONYX BLACK)
1JMOTOR HOUSING (PISTACHIO)
1W11605627 Whirlpool Housing
1GMOTOR HOUSING (MATCHA)
1EMOTOR HOUSING (HONEY)
29706630 Whirlpool Trim Band
3J9706841 Whirlpool Cover
3IEND COVER (ONYX BLACK)
3EWPL W11485686
3AW11548796 Whirlpool Cover
3GWPL W11431671
3KEND COVER (PORCELAIN)
3F9707667 Whirlpool Cover
3BE
3End Cover (Almond Creme)
3HEND COVER (MATTE DRIED ROSE)
3CW10350456 Whirlpool Cover Assembly
3DEND COVER (EMPIRE RED)
4JPLANETARY (PISTACHIO)
4CW10350465 Whirlpool Planetary Mixer
4DPLANETARY (EMPIRE RED)
4GWPL W11431678
4KPLANETARY (PORCELAIN)
4IPLANETARY-Onyx Black
4EWPL W11485717
4HWPL W11209496
4F9707665 Whirlpool Planetary Mixer
4BWPL W11209470
4Planetary (Almond Creme)
4APLANETARY (BEETROOT)
5LOWER GEARCASE (ALMOND CREME)
5ALOWER GEARCASE (BEETROOT)
5KWPL W11647806
5EWPL W11485689
5ILOWER GEARCASE (ONYX BLACK)
5GWPL W11431681
5HWPL W11209493
5BW11209465 Whirlpool Gearcase
5DLOWER GEARCASE-Empire Red
5CLOWER GEARCASE (CONTOUR SILVER)
5J9706832 Whirlpool Gearcase
5FLOWER GEARCASE (ICE)
6HW11231606 Whirlpool Pedestal
6EPEDESTAL W/FEET (HONEY)
6BPEDESTAL (BLUE VELVET)
6F9707656 Whirlpool Pedestal
6CPEDESTAL W/FEET (CONTOUR SILVER)
6JPEDESTAL W/FEET (PISTACHIO)
6IPedestal w/Feet (Onyx Black)
6KWPL W11647809
6PEDESTAL W/FEET (ALMOND CREME)
6AWPL W11548798
6DW11131262 Whirlpool Pedestal
6GPEDESTAL (MATCHA)
