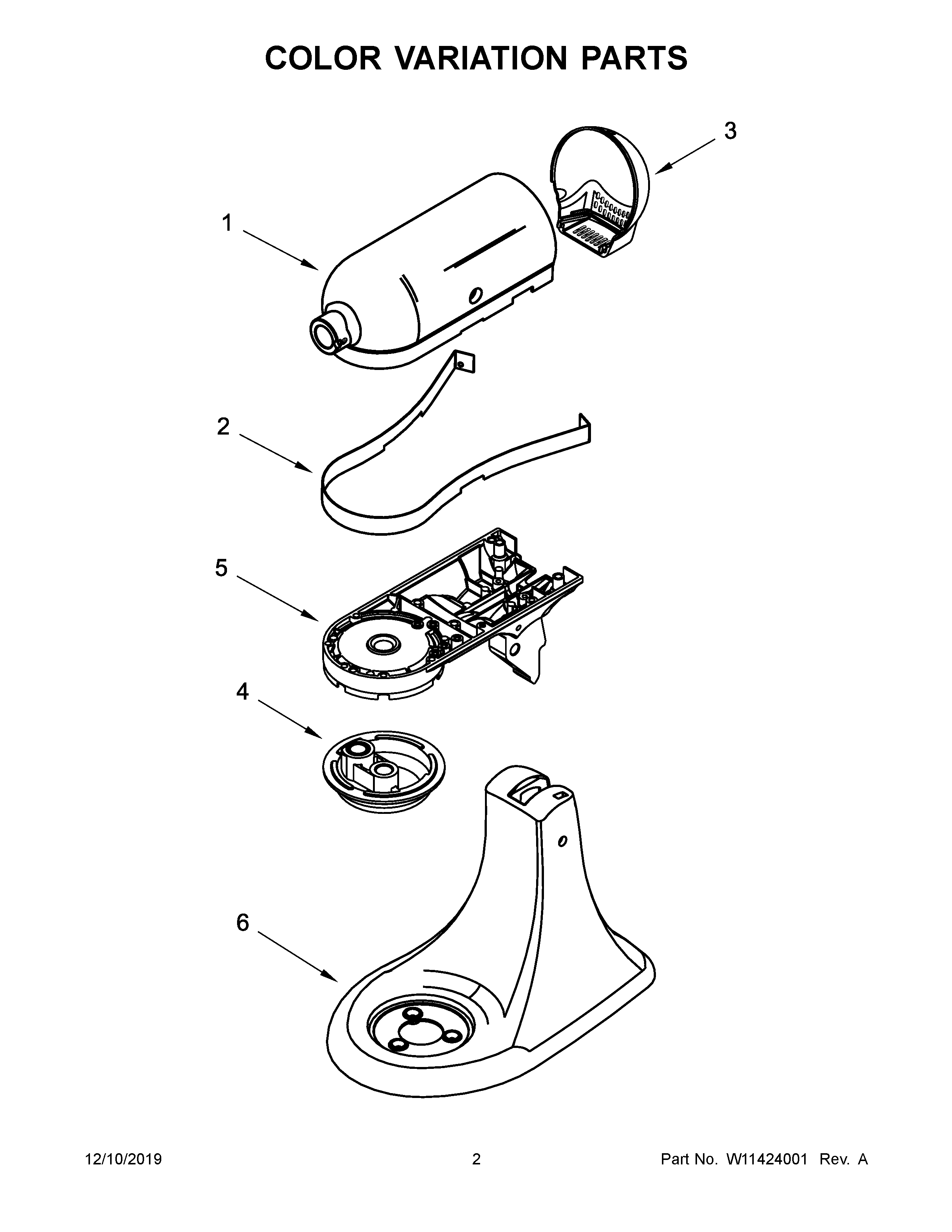

KSM150WPCU0 02 – COLOR VARIATION PARTS

Products

Position	Product
1C	W10513207 Whirlpool Housing
1A	W10350463 Whirlpool Housing
1B	MOTOR HOUSING (EMPIRE RED)
1	MOTOR HOUSING (AQUA SKY)
1D	Motor Housing (Onyx Black)
2	9706630 Whirlpool Trim Band
3D	END COVER (ONYX BLACK)
3C	W10512234 Whirlpool Cover
3B	END COVER (EMPIRE RED)
3	W10193496 Whirlpool Cover
3A	W10350456 Whirlpool Cover Assembly
4B	PLANETARY (EMPIRE RED)
4D	PLANETARY-Onyx Black
4A	W10350465 Whirlpool Planetary Mixer
4C	WPL W10512355
4	W10193498 Whirlpool Planetary Assembly
5C	WPL W10513075
5B	LOWER GEARCASE-Empire Red
5A	LOWER GEARCASE (CONTOUR SILVER)
5D	LOWER GEARCASE (ONYX BLACK)
5	W10193504 Whirlpool Gearcase
6A	PEDESTAL W/FEET (CONTOUR SILVER)
6D	WPL 24015113
6B	WPL 24015120
6	W10193507 Whirlpool Pedestal
6C	PEDESTAL (LIQUID GRAPHITE)
