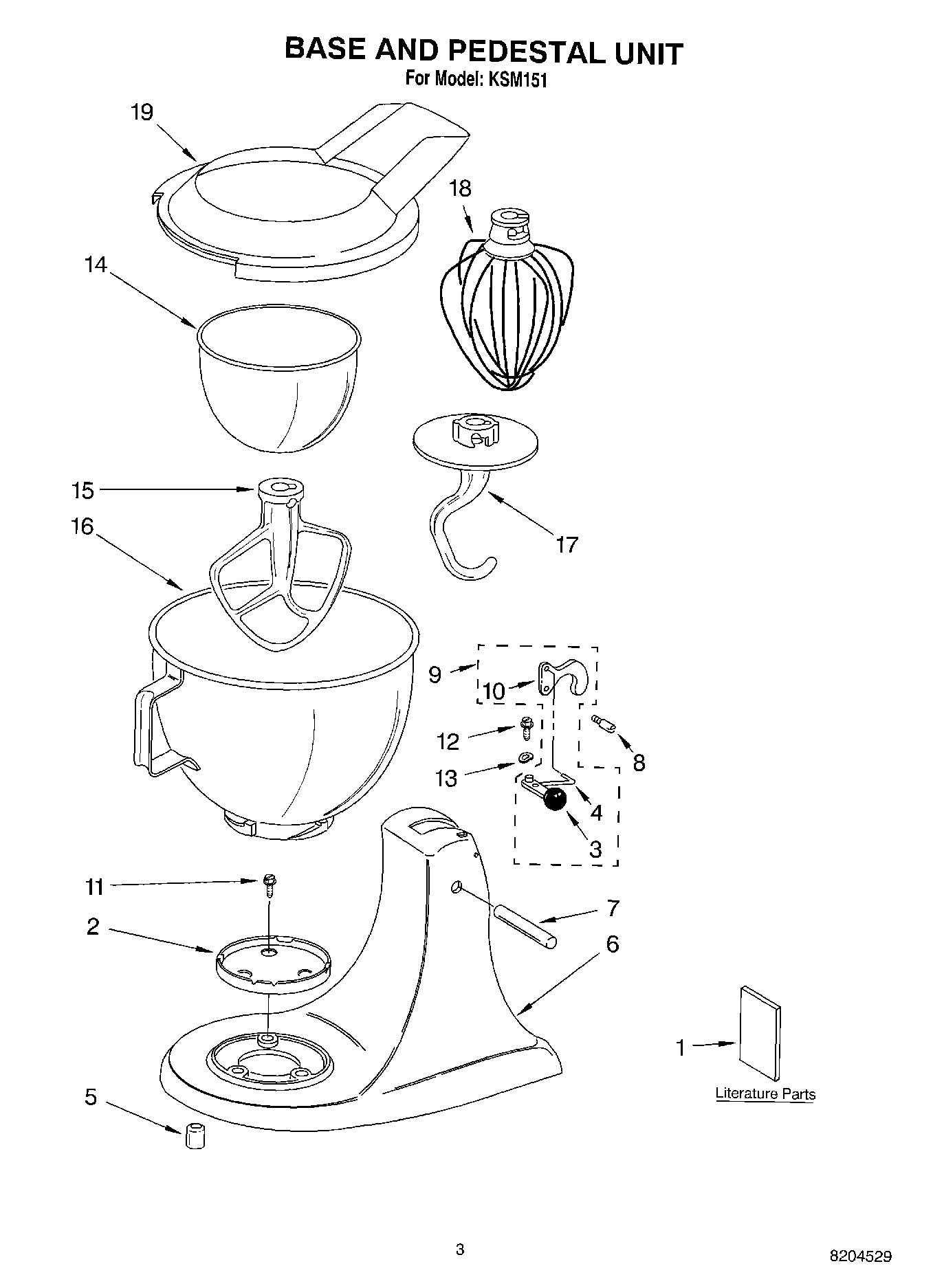

KSM151 03 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	Literature Parts (Use And Care Guide)
1	Literature Parts (Repair Parts List)
2	WPW10191926 Whirlpool Cap Screw
3	WP9709280 Whirlpool Latch Lever
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	PEDESTAL-Black Chrome
6	9706682 Whirlpool Pedestal
7	WP16910 Whirlpool Dowel Pin
8	103993 Whirlpool Screw
9	WP24452 Whirlpool Latch Lever
10	Latch
11	SCREW
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	BOWL, 3 QT.
15	Beater, Flat
16	W11324096 Whirlpool Mixer Bowl
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	W11312468 Whirlpool Pour Shelf
