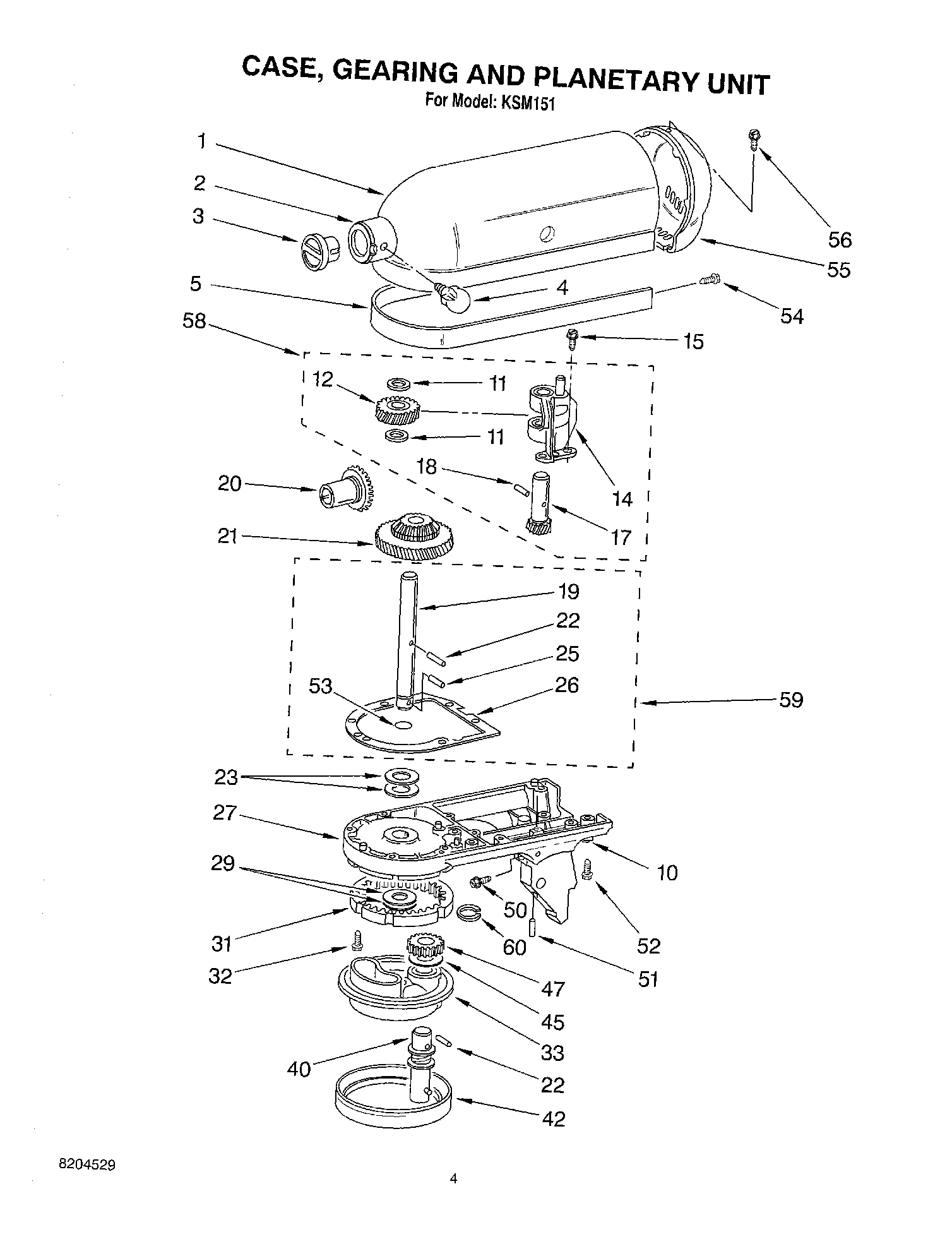

KSM151 04 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
1	9704025 Whirlpool Housing Assembly
1	GEARCASE MOTOR HOUSING-Black Chrome
2	WP16897 Whirlpool Bearing
3	Cap, Attachment Hub
4	WP9709194 Whirlpool Black Thumb Screw
5	TRIM BAND (BLACK)
10	WP8533914 Whirlpool Lock
11	WPW10323373 Whirlpool Washer
12	WPW10112253 Whirlpool Gear Assembly
14	W11082541 Whirlpool Bearing
15	W11097298 Whirlpool Dishwasher Screw
17	Shaft & Pinion
18	WP9705444 Whirlpool Pin Groove
19	WP240026 Whirlpool Control Shaft
20	Gear, Attachment Hub Bevel (23T)
21	W11192794 Whirlpool HUB Gear
22	Pin (Vertical Center Shaft)
25	WP4159133 Whirlpool Groove Pin
26	WP4162324 Whirlpool Case Gasket
27	LOWER GEARCASE-Black Chrome
27	9706662 Whirlpool Gearcase Assembly
29	WPW10323378 Whirlpool Washer
31	W11340106 Whirlpool Gear Assembly
32	Screw, Special (5)
33	PLANETARY-Black Chrome
33	9706670 Whirlpool Planetary
40	WP243368 Whirlpool Agitator Shaft
42	WP240285 Whirlpool Drip Ring
45	Washer, Shim (.015`` Thk.) (.031`` Thk.)
47	W11133645 Whirlpool Pinion Gear
50	W11028216 Whirlpool Screw
51	WP3400203 Whirlpool Screw
52	WP3400025 Whirlpool Screw
53	O RING
54	W10853069 Whirlpool Screw
55	WPL 9706669
55	9704029 Whirlpool Cover Assembly
56	WP241877 Whirlpool Screw
58	GEAR, WORM AND BRACKET
59	4160474 Whirlpool Control Shaft
60	WP9703438 Whirlpool Snap Retaining Ring
